Functional Principle, Technical Data

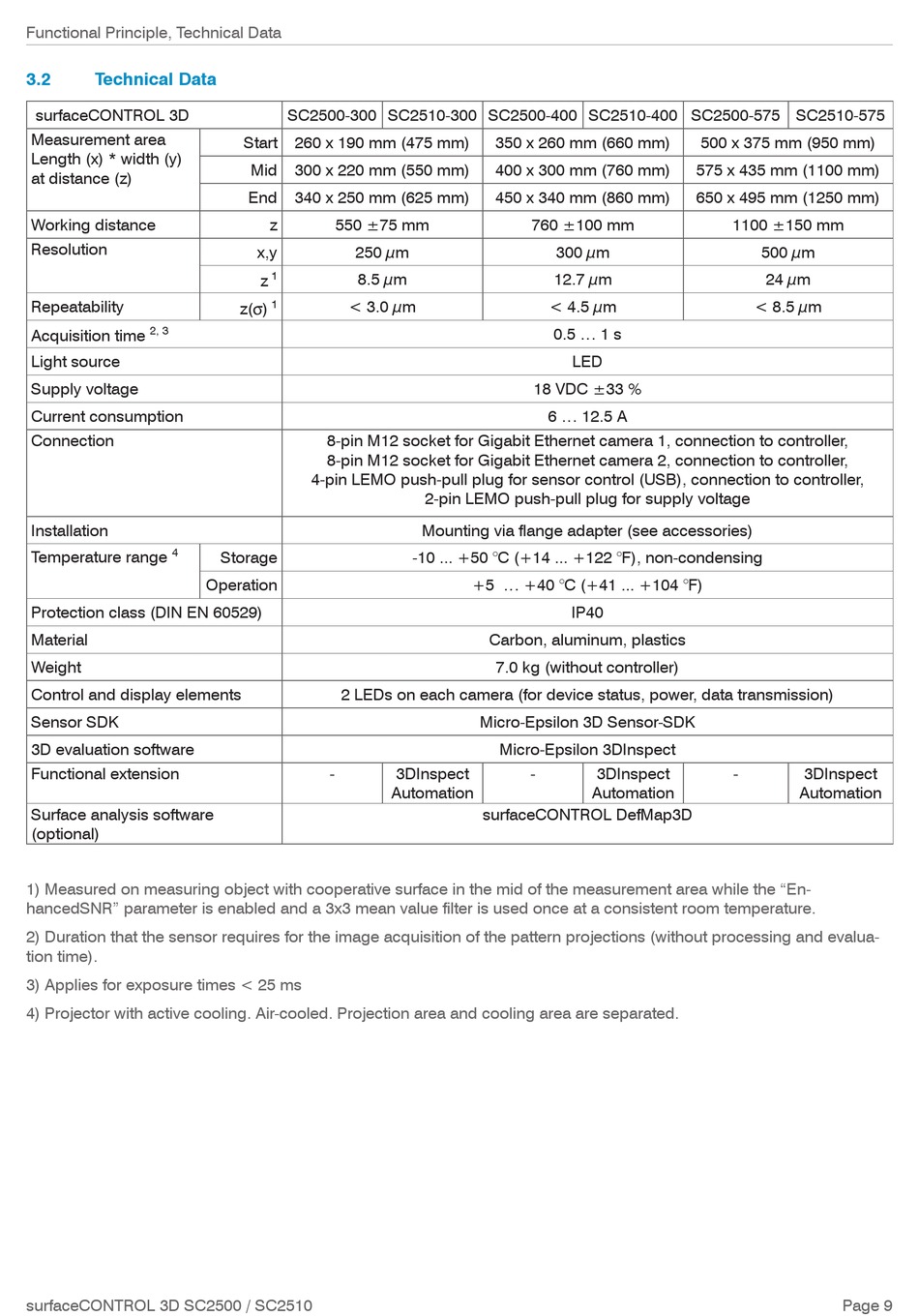

3.2

Technical Data

surfaceCONTROL 3D
Measurement area
Length (x) * width (y)
at distance (z)
Working distance
Resolution
Repeatability
2, 3
Acquisition time
Light source
Supply voltage
Current consumption
Connection
Installation
4
Temperature range
Protection class (DIN EN 60529)
Material
Weight
Control and display elements
Sensor SDK
3D evaluation software
Functional extension
Surface analysis software
(optional)
1) Measured on measuring object with cooperative surface in the mid of the measurement area while the "En-
hancedSNR" parameter is enabled and a 3x3 mean value filter is used once at a consistent room temperature.
2) Duration that the sensor requires for the image acquisition of the pattern projections (without processing and evalua-
tion time).
3) Applies for exposure times < 25 ms
4) Projector with active cooling. Air-cooled. Projection area and cooling area are separated.
surfaceCONTROL 3D SC2500 / SC2510
SC2500-300 SC2510-300 SC2500-400 SC2510-400 SC2500-575 SC2510-575
Start 260 x 190 mm (475 mm)
Mid 300 x 220 mm (550 mm)
End 340 x 250 mm (625 mm)
z 550 ±75 mm
x,y 250 µm
1 8.5 µm
z
< 3.0 µm
1
z(s)
8-pin M12 socket for Gigabit Ethernet camera 1, connection to controller,
8-pin M12 socket for Gigabit Ethernet camera 2, connection to controller,
4-pin LEMO push-pull plug for sensor control (USB), connection to controller,
Storage
Operation
2 LEDs on each camera (for device status, power, data transmission)
-
350 x 260 mm (660 mm)
400 x 300 mm (760 mm)
450 x 340 mm (860 mm)
760 ±100 mm
300 µm
12.7 µm
< 4.5 µm
0.5 ... 1 s
18 VDC ±33 %
6 ... 12.5 A
2-pin LEMO push-pull plug for supply voltage
Mounting via flange adapter (see accessories)
-10 ... +50 °C (+14 ... +122 °F), non-condensing
+5 ... +40 °C (+41 ... +104 °F)
Carbon, aluminum, plastics
7.0 kg (without controller)
Micro-Epsilon 3D Sensor-SDK
Micro-Epsilon 3DInspect
3DInspect -
Automation
surfaceCONTROL DefMap3D
500 x 375 mm (950 mm)
575 x 435 mm (1100 mm)
650 x 495 mm (1250 mm)
1100 ±150 mm
LED
IP40
3DInspect -
Automation
500 µm
24 µm
< 8.5 µm
3DInspect
Automation
