Exposure - MICRO-EPSILON surfaceCONTROL SC2500 Operating Instructions Manual

Operation
6.4.4

Exposure

The projected fringe pattern should be well recognizable over the entire measurement plane (not too light/dark) in order
to avoid overdriven and underdriven pixels.
The Exposure time parameter enables you to adjust the exposure.
In the main view, switch from the 3D View to the Image data.
Switch to the Data acquisition tab.
Select Sensor settings > Pattern projection > Pattern.
Select a suitable exposure time in Sensor settings > Exposure.

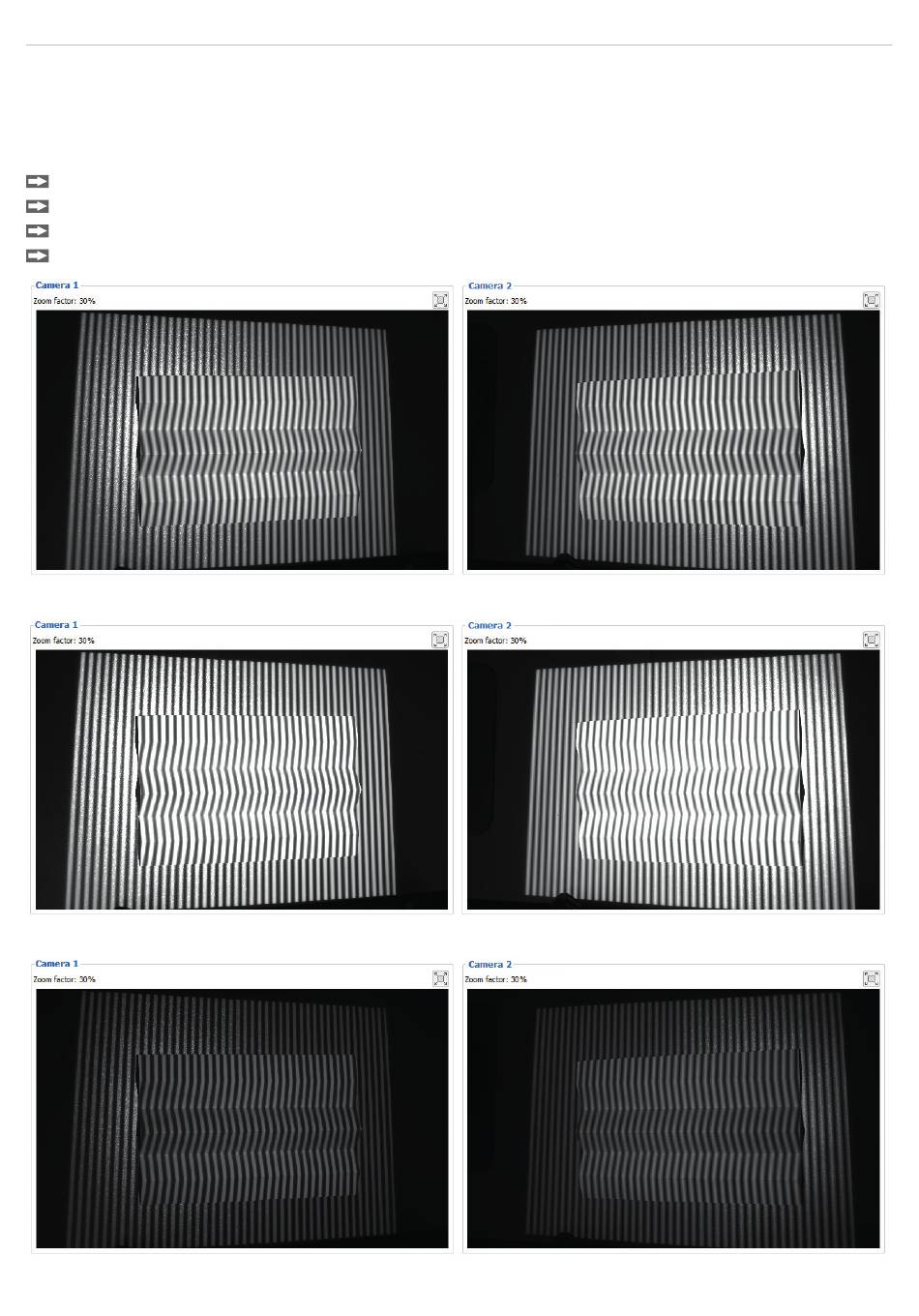

Fig. 23 Result of camera images with good exposure
Fig. 24 Camera image, measuring object overexposed
Fig. 25 Camera image, measuring object underexposed
