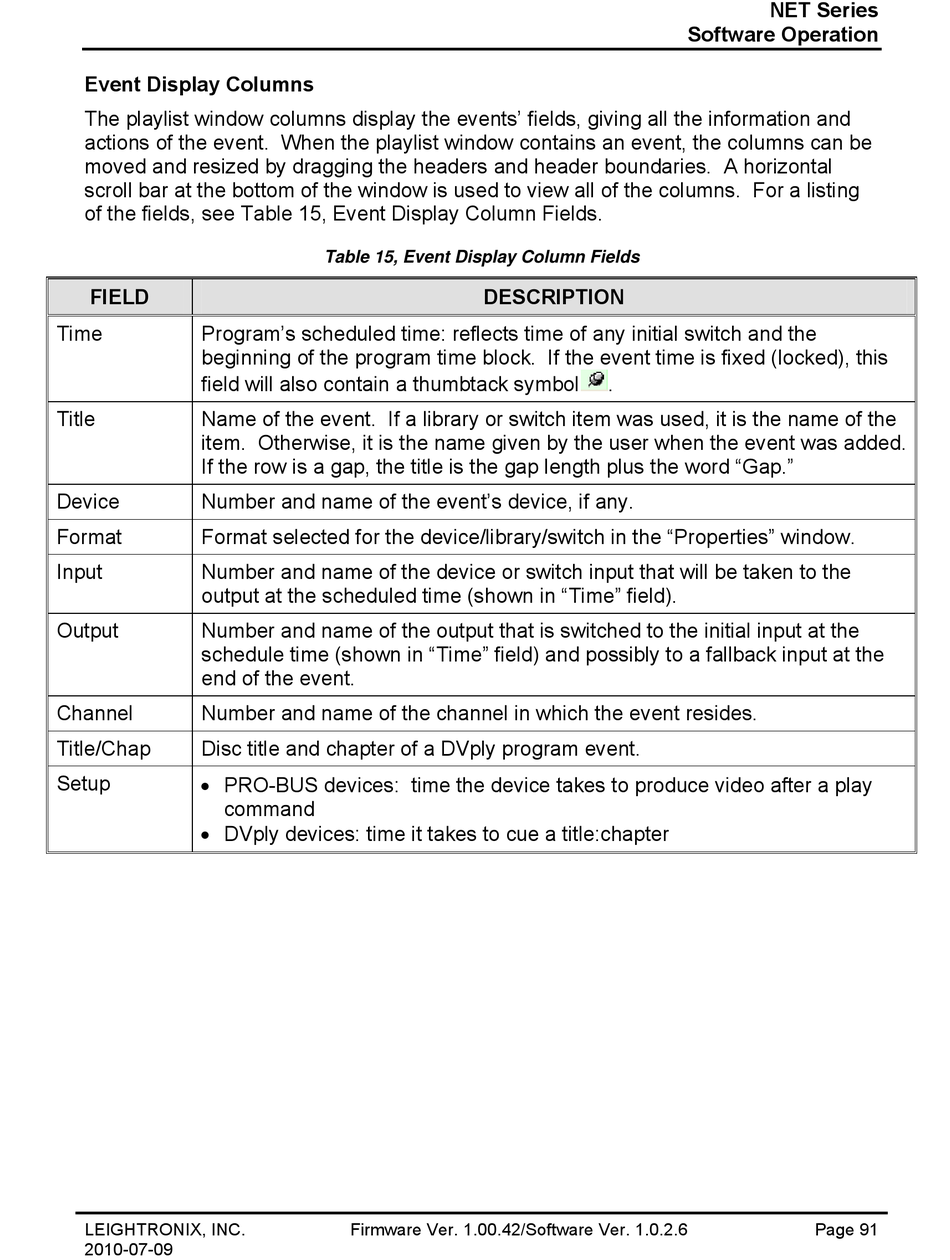

Event Display Columns
The playlist window columns display the events' fields, giving all the information and
actions of the event. When the playlist window contains an event, the columns can be
moved and resized by dragging the headers and header boundaries. A horizontal
scroll bar at the bottom of the window is used to view all of the columns. For a listing
of the fields, see Table 15, Event Display Column Fields.
FIELD
Time Program's scheduled time: reflects time of any initial switch and the
beginning of the program time block. If the event time is fixed (locked), this
field will also contain a thumbtack symbol
Title Name of the event. If a library or switch item was used, it is the name of the
item. Otherwise, it is the name given by the user when the event was added.
If the row is a gap, the title is the gap length plus the word "Gap."
Device Number and name of the event's device, if any.
Format Format selected for the device/library/switch in the "Properties" window.
Input Number and name of the device or switch input that will be taken to the
output at the scheduled time (shown in "Time" field).
Output Number and name of the output that is switched to the initial input at the
schedule time (shown in "Time" field) and possibly to a fallback input at the
end of the event.
Channel Number and name of the channel in which the event resides.
Title/Chap Disc title and chapter of a DVply program event.
Setup  PRO-BUS devices: time the device takes to produce video after a play
command
 DVply devices: time it takes to cue a title:chapter
LEIGHTRONIX, INC.
2010-07-09
Table 15, Event Display Column Fields
DESCRIPTION
