NOTE: Do not enter 255.255.255.255 in the "IP Address" field. This address
means your Controller is configured for dynamic host configuration
protocol (DHCP). Use the Controller's front panel to view the address
that was assigned to your Controller by your company network's
DHCP server.
 "Port": this field is intended for Advanced Configuration Only! For all typical
installations, the value should be left at 23. An incorrect port number will cause
WinNET to fail to connect to your Controller. If you feel an alternate port
number is needed for your installation, contact LEIGHTRONIX for details on
setting your Controller to a different port number.
 "Default": check if you wish to make the Controller the one to which WinNET will
connect when it performs remote operations. Only one Controller can be the
default, so selecting it for one Controller removes default status from another.
3. Click "OK" to enter your Controller in the database or "Cancel" to abort entry. Your
Controller(s) should now appear in the "Locations" database (see Illustration 23,
"Controller Locations" Window). The window's columns show the name, IP
address, and port of each Controller along with a check to indicate the default
Controller.
4. If applicable, repeat steps 2–3 for each additional NET Series Controller in your
system.
5. Click "OK" to close the "Controller Locations" window.
Page 48

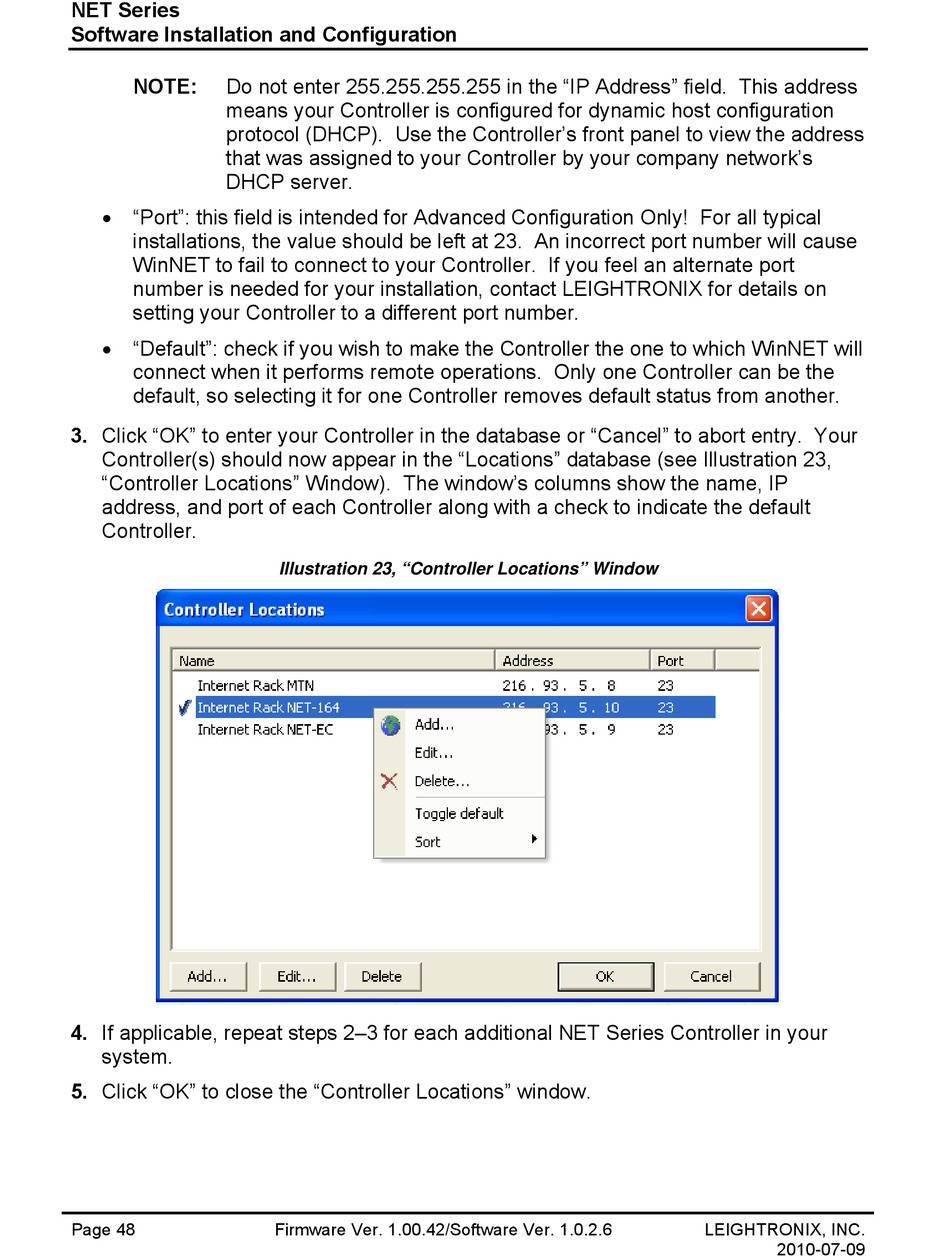

Illustration 23, "Controller Locations" Window
