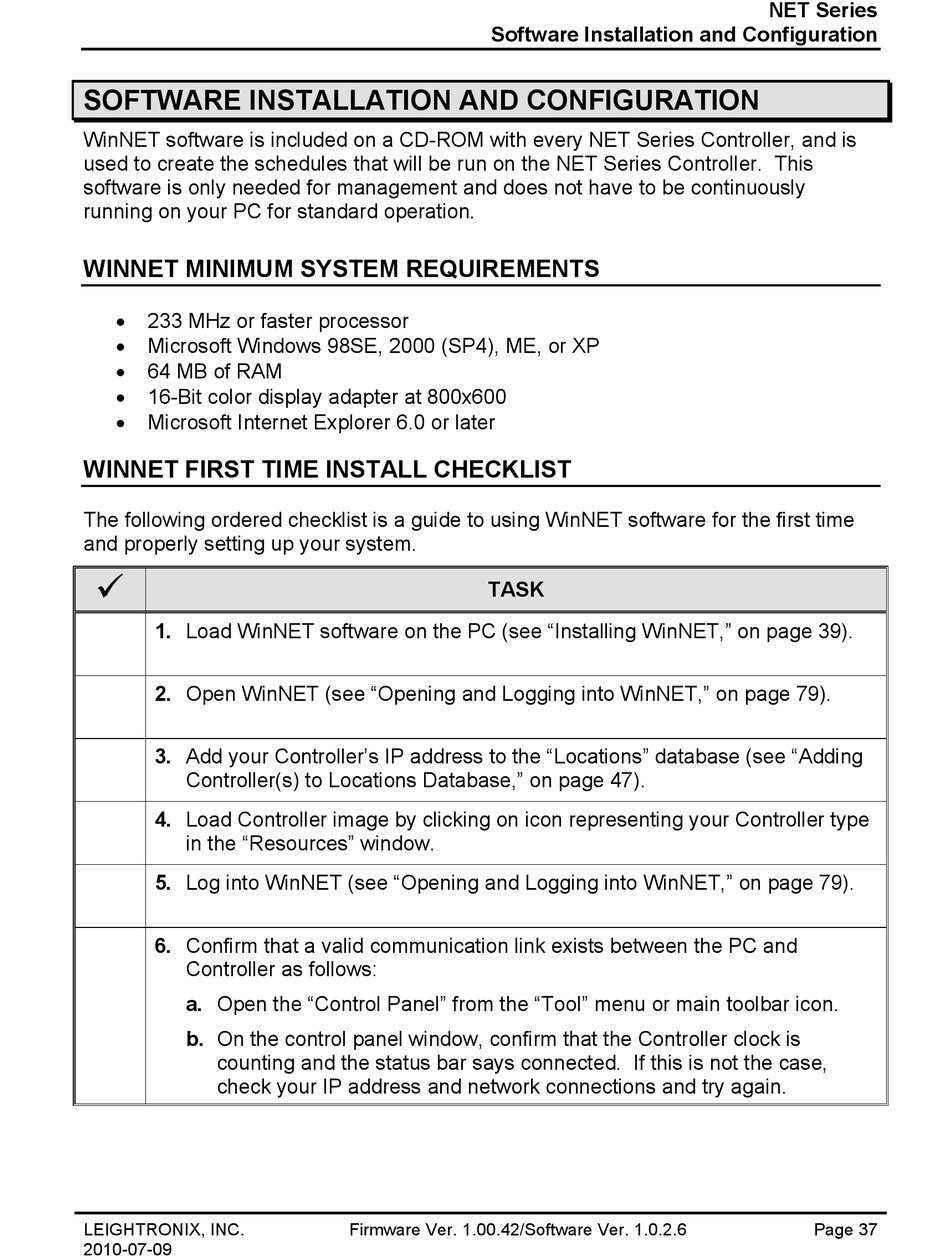

SOFTWARE INSTALLATION AND CONFIGURATION

WinNET software is included on a CD-ROM with every NET Series Controller, and is
used to create the schedules that will be run on the NET Series Controller. This
software is only needed for management and does not have to be continuously
running on your PC for standard operation.

WINNET MINIMUM SYSTEM REQUIREMENTS


233 MHz or faster processor

Microsoft Windows 98SE, 2000 (SP4), ME, or XP

64 MB of RAM

16-Bit color display adapter at 800x600

Microsoft Internet Explorer 6.0 or later

WINNET FIRST TIME INSTALL CHECKLIST

The following ordered checklist is a guide to using WinNET software for the first time
and properly setting up your system.

1. Load WinNET software on the PC (see "Installing WinNET," on page 39).
2. Open WinNET (see "Opening and Logging into WinNET," on page 79).
3. Add your Controller's IP address to the "Locations" database (see "Adding
Controller(s) to Locations Database," on page 47).
4. Load Controller image by clicking on icon representing your Controller type
in the "Resources" window.
5. Log into WinNET (see "Opening and Logging into WinNET," on page 79).
6. Confirm that a valid communication link exists between the PC and
Controller as follows:
a. Open the "Control Panel" from the "Tool" menu or main toolbar icon.
b. On the control panel window, confirm that the Controller clock is
counting and the status bar says connected. If this is not the case,
check your IP address and network connections and try again.
