SCHEDULING A PLAYBACK EVENT

The "Playlist" window, shown in Illustration 60, with the sample image NET-164.cmg
loaded, is where an event schedule is created.

ABOUT PLAYLIST WINDOW COMPONENTS

Channel Tabs
 Output channel tabs: used to schedule events that contain switches to the
selected tab's assigned output.
 "Misc" channel tab: used to schedule events that do not have a switch.
If you assign output names in the "Control" tab "Properties" window, they will
appear on the channel tabs after the Controller image is saved.
NOTE: The NET-EC's number of outputs and channel/output assignments
are entered in the "Control" tab "Properties" window and appear once
the Controller's image is saved.
Day Tabs
Day tabs are used to schedule events on specified days. The day tabs perform output
and device conflict checking across all of the channel tabs, so that an output or a
device can never have more than one event scheduled at the same time.
Each event contains all the starting and ending actions for a program, and thus uses
up a block of time for the length of the program. WinNET orders these blocks
vertically in the playlist window, one row per event, so that for a particular output on a
particular day, you can see the day's 24 hours divided into programs.
Page 88

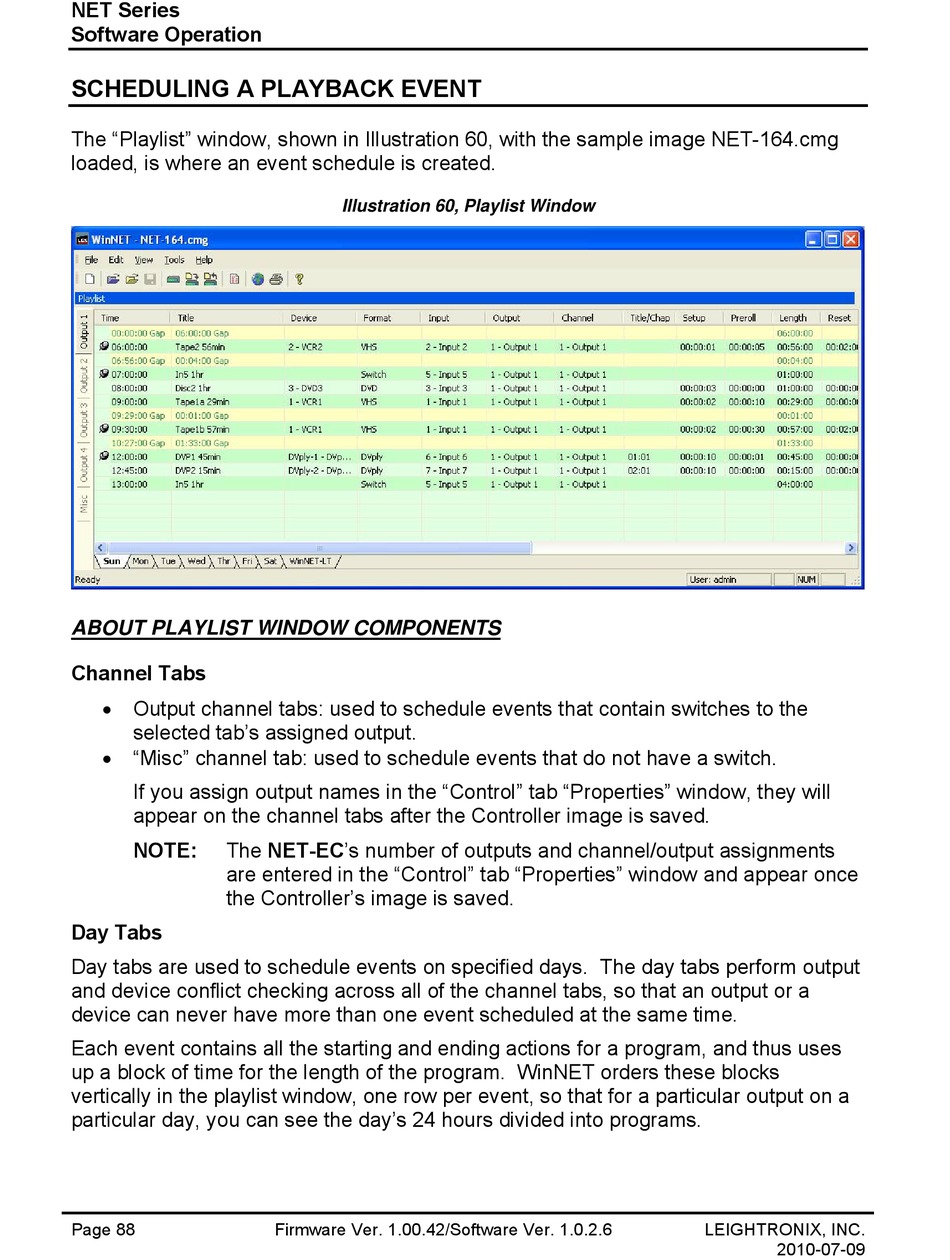

Illustration 60, Playlist Window
