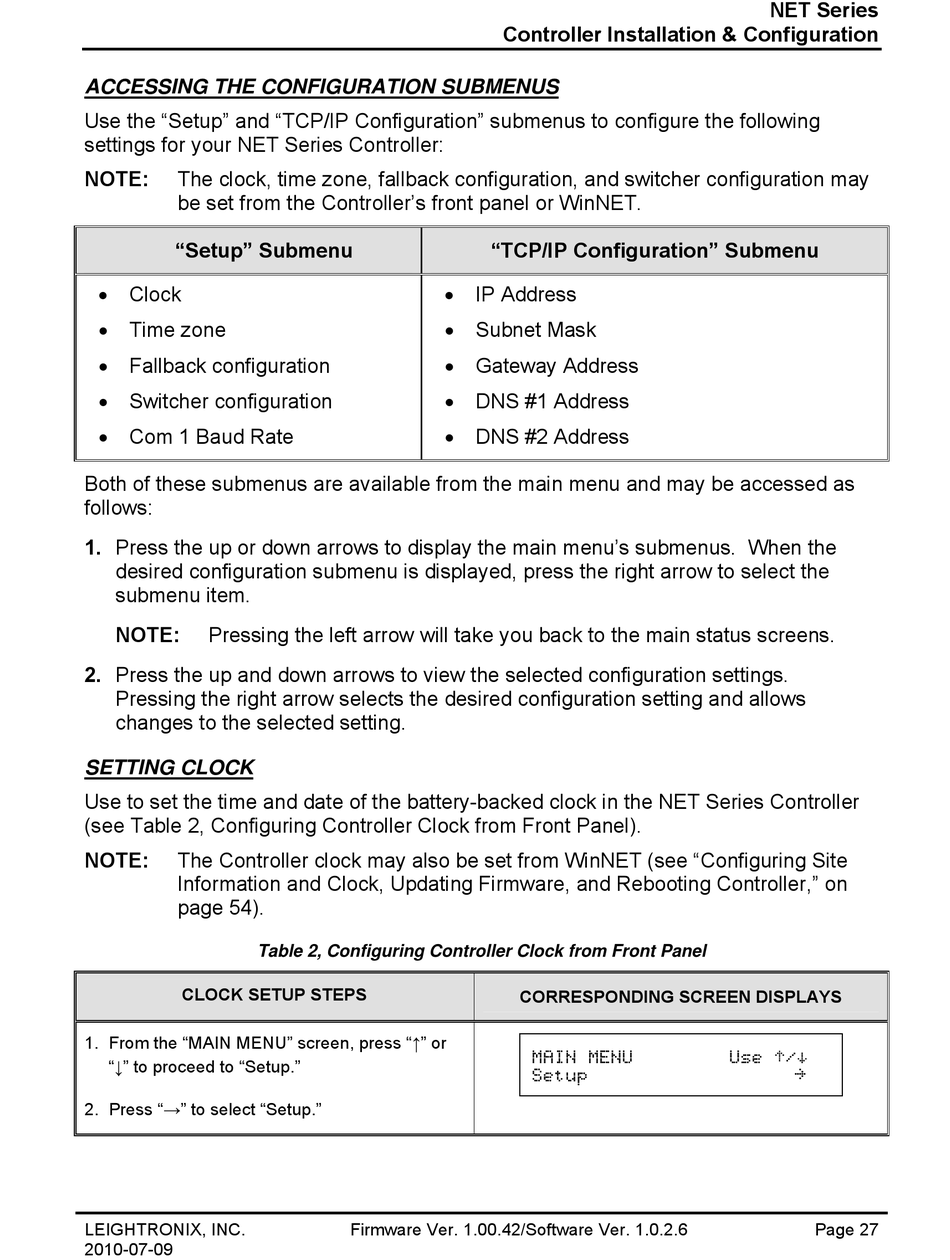

ACCESSING THE CONFIGURATION SUBMENUS

Use the "Setup" and "TCP/IP Configuration" submenus to configure the following
settings for your NET Series Controller:
NOTE: The clock, time zone, fallback configuration, and switcher configuration may
be set from the Controller's front panel or WinNET.
"Setup" Submenu

Clock
 Time zone
 Fallback configuration
 Switcher configuration
 Com 1 Baud Rate
Both of these submenus are available from the main menu and may be accessed as
follows:
1. Press the up or down arrows to display the main menu's submenus. When the
desired configuration submenu is displayed, press the right arrow to select the
submenu item.
NOTE: Pressing the left arrow will take you back to the main status screens.
2. Press the up and down arrows to view the selected configuration settings.
Pressing the right arrow selects the desired configuration setting and allows
changes to the selected setting.

SETTING CLOCK

Use to set the time and date of the battery-backed clock in the NET Series Controller
(see Table 2, Configuring Controller Clock from Front Panel).
NOTE: The Controller clock may also be set from WinNET (see "Configuring Site
Information and Clock, Updating Firmware, and Rebooting Controller," on
page 54).
Table 2, Configuring Controller Clock from Front Panel
CLOCK SETUP STEPS
1. From the "MAIN MENU" screen, press "↑" or
"↓" to proceed to "Setup."
2. Press "→" to select "Setup."
LEIGHTRONIX, INC.
2010-07-09
Controller Installation & Configuration
"TCP/IP Configuration" Submenu

IP Address
 Subnet Mask
 Gateway Address
 DNS #1 Address
 DNS #2 Address
CORRESPONDING SCREEN DISPLAYS
Firmware Ver. 1.00.42/Software Ver. 1.0.2.6
MAIN MENU
Setup
NET Series
Use `/ˆ
~
