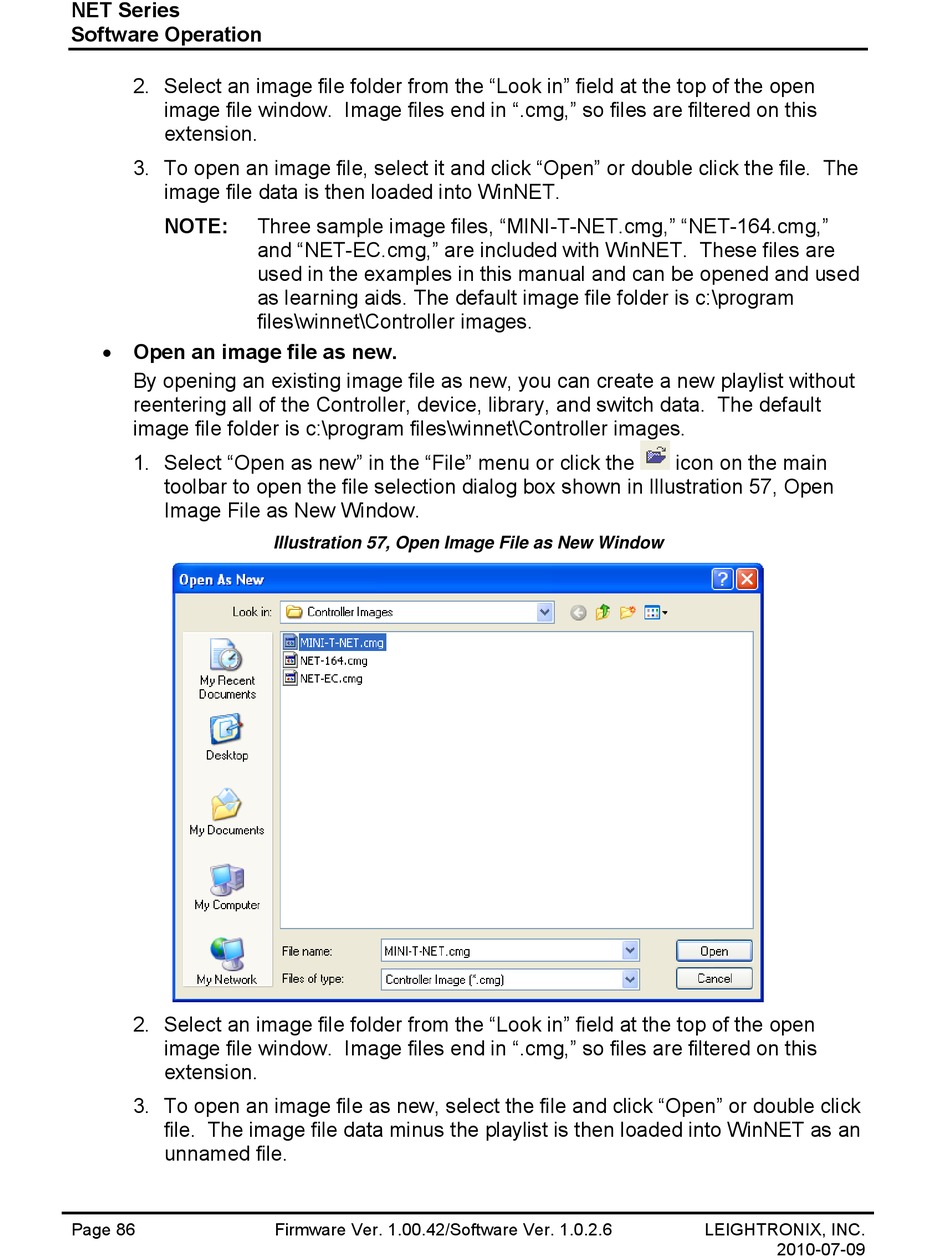

Illustration 57, Open Image File As New Window - Leightronix NET Series Manual

NET Series
Software Operation
2. Select an image file folder from the "Look in" field at the top of the open
image file window. Image files end in ".cmg," so files are filtered on this
extension.
3. To open an image file, select it and click "Open" or double click the file. The
image file data is then loaded into WinNET.
NOTE:
 Open an image file as new.
By opening an existing image file as new, you can create a new playlist without
reentering all of the Controller, device, library, and switch data. The default
image file folder is c:\program files\winnet\Controller images.
1. Select "Open as new" in the "File" menu or click the
toolbar to open the file selection dialog box shown in Illustration 57, Open
Image File as New Window.
2. Select an image file folder from the "Look in" field at the top of the open
image file window. Image files end in ".cmg," so files are filtered on this
extension.
3. To open an image file as new, select the file and click "Open" or double click
file. The image file data minus the playlist is then loaded into WinNET as an
unnamed file.
Page 86
Three sample image files, "MINI-T-NET.cmg," "NET-164.cmg,"
and "NET-EC.cmg," are included with WinNET. These files are
used in the examples in this manual and can be opened and used
as learning aids. The default image file folder is c:\program
files\winnet\Controller images.

Illustration 57, Open Image File as New Window

Firmware Ver. 1.00.42/Software Ver. 1.0.2.6
icon on the main
LEIGHTRONIX, INC.
2010-07-09
