PERFORMING SWITCH ACTIONS

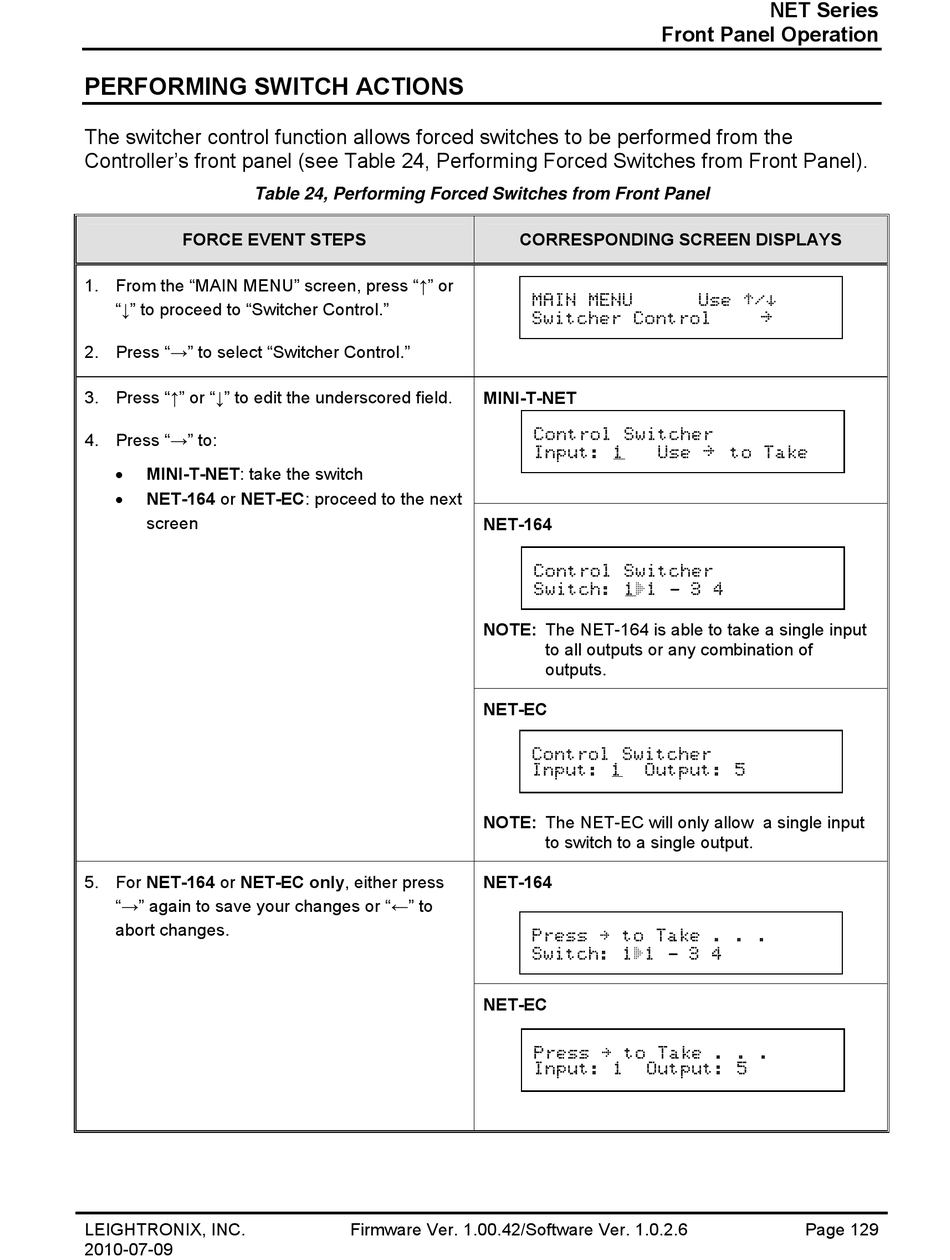

The switcher control function allows forced switches to be performed from the
Controller's front panel (see Table 24, Performing Forced Switches from Front Panel).
Table 24, Performing Forced Switches from Front Panel
FORCE EVENT STEPS
1. From the "MAIN MENU" screen, press "↑" or
"↓" to proceed to "Switcher Control."
2. Press "→" to select "Switcher Control."
3. Press "↑" or "↓" to edit the underscored field.
4. Press "→" to:

MINI-T-NET: take the switch

NET-164 or NET-EC: proceed to the next
screen
5. For NET-164 or NET-EC only, either press
"→" again to save your changes or "←" to
abort changes.
