Summary of Contents for Leightronix Incodex Vier

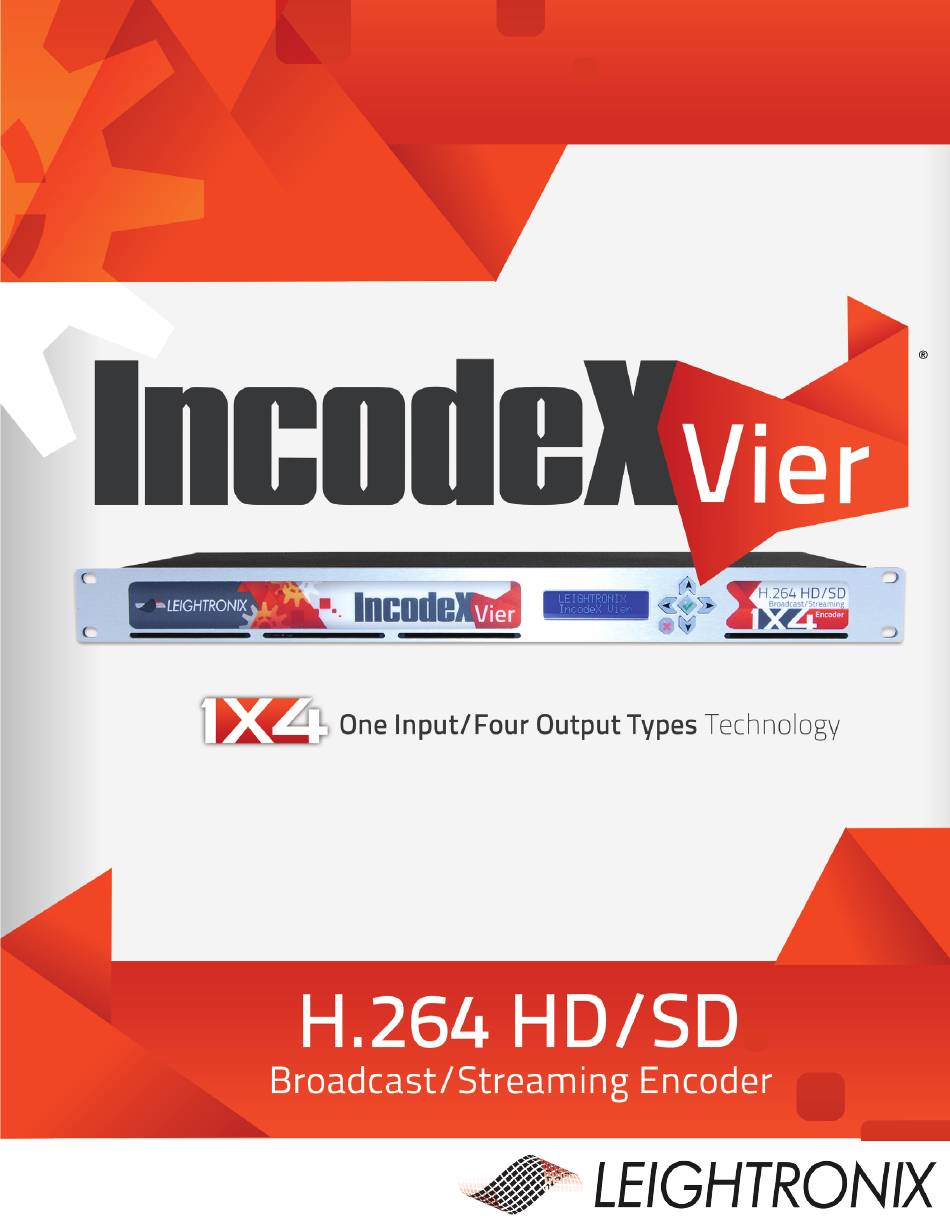

- Page 1 PRODUCT QUICK GUIDE Hardware Setup | Network Configuration | Interface Instructions | VieBit Login ® END-TO-END Solutions for Broadcast & Streaming...
-
Page 2: Hardware Setup
If using analog audio, connect the analog audio source to audio inputs R and L. Using the included Ethernet cable, connect the IncodeX Vier Ethernet port directly to a cable or DSL modem, or to NOTE: For optimal performance, use a dedicated, broadband internet business a 100/1000 switch on your network. - Page 3 IncodeX Vier. Follow these steps to set up video streams: Logging In to VieBit Your VieBit account hostname can be found on the front display of the IncodeX Vier. Enter the hostname into the address bar of a web browser, and do the following: To access VieBit Site Administration click Login in the top right corner of your homepage and enter your login information.
-
Page 4: Interface Instructions
Open a web browser and enter the IncodeX Vier’s IP address into the address bar, then press Enter on the keyboard. • Enter admin in the username field and the last six characters of the MAC address (excluding colons), found on the IncodeX Vier’s front panel display, for the default password. -
Page 5: Firewall Considerations
Firewall Considerations Configure your network using the specifications below to ensure the IncodeX Vier can communicate outside of it. Function Destination Port(s) Network Traffic 69.16.207.66 DNS (name translation) 50.28.90.117 DNS/UDP 50.28.102.87 Configuration sync/ license.leightronix.com HTTP/TCP subscription validation Time sync time.leightronix.com...
