Illustration 45, Net-Ec Control Property Settings - Leightronix NET Series Manual

NET Series
Software Installation and Configuration
 NET-EC
The NET-EC's control properties must be set as follows (see Illustration 45,
NET-EC Control Property Settings):
NOTE: Input and output alias assignments are optional.
 Input aliases
1. Enter the external switch's first and last input values into the "First" and
"Last" input fields. Each of the inputs in this range may be assigned an
alias.
2. Type an alias into the "Name" field of the selected input (up to 31
characters).
Page 70

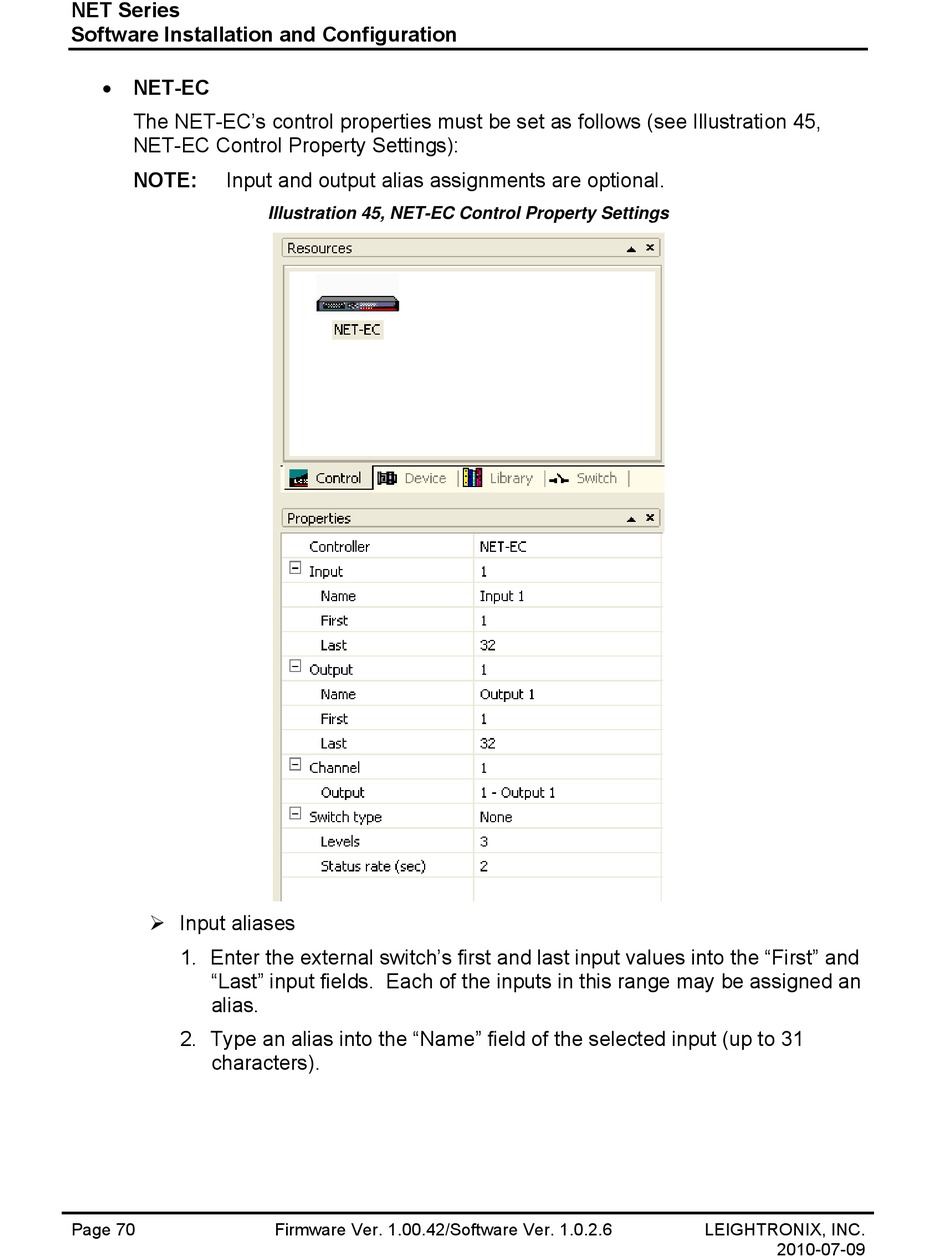

Illustration 45, NET-EC Control Property Settings

Firmware Ver. 1.00.42/Software Ver. 1.0.2.6 LEIGHTRONIX, INC.
2010-07-09
