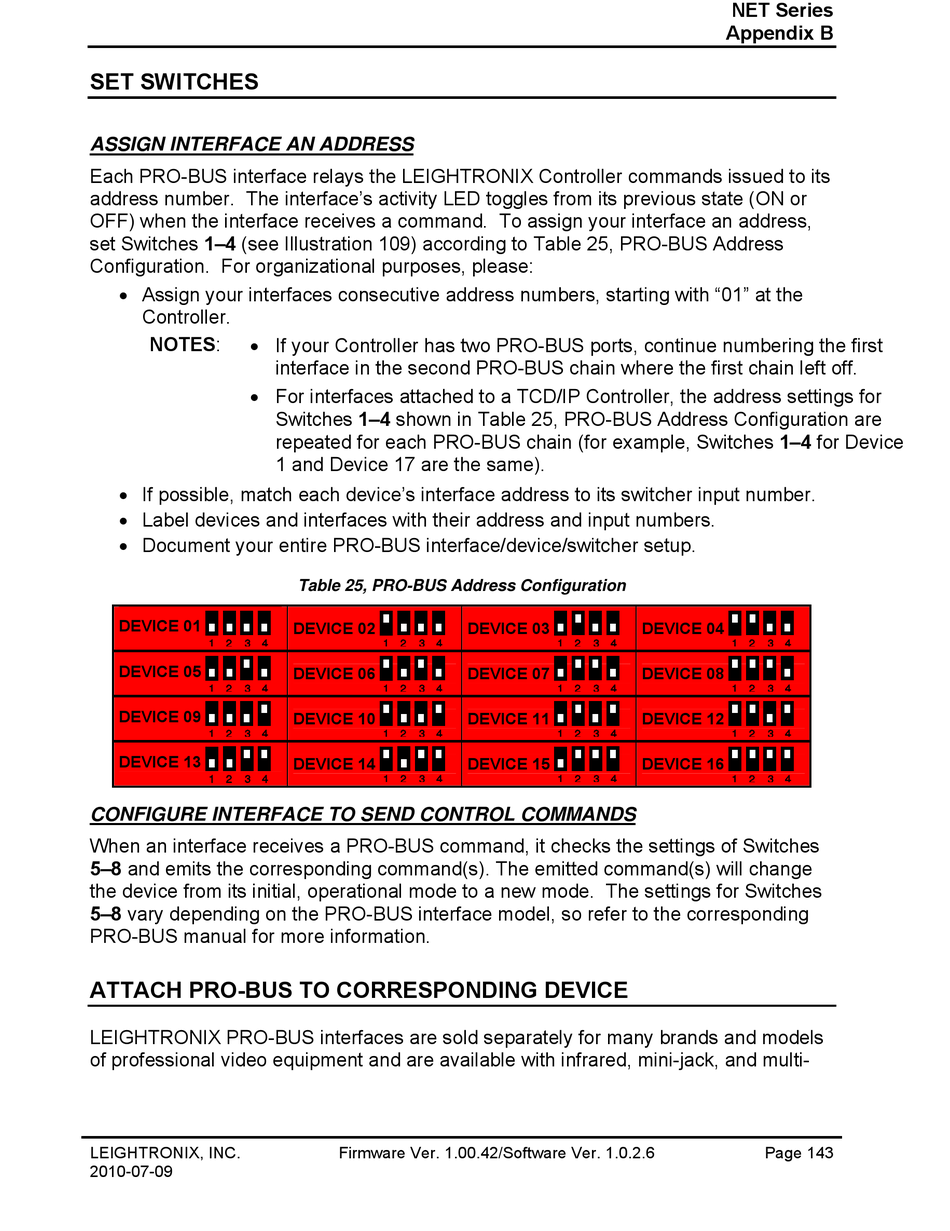

SET SWITCHES

ASSIGN INTERFACE AN ADDRESS

Each PRO-BUS interface relays the LEIGHTRONIX Controller commands issued to its
address number. The interface's activity LED toggles from its previous state (ON or
OFF) when the interface receives a command. To assign your interface an address,
set Switches 1–4 (see Illustration 109) according to Table 25, PRO-BUS Address
Configuration. For organizational purposes, please:
 Assign your interfaces consecutive address numbers, starting with "01" at the
Controller.
 If your Controller has two PRO-BUS ports, continue numbering the first
NOTES:
 For interfaces attached to a TCD/IP Controller, the address settings for
 If possible, match each device's interface address to its switcher input number.
 Label devices and interfaces with their address and input numbers.
 Document your entire PRO-BUS interface/device/switcher setup.
DEVICE 01
1 2 3 4
DEVICE 05
1 2 3 4
DEVICE 09
1 2 3 4
DEVICE 13
1 2 3 4

CONFIGURE INTERFACE TO SEND CONTROL COMMANDS

When an interface receives a PRO-BUS command, it checks the settings of Switches
5–8 and emits the corresponding command(s). The emitted command(s) will change
the device from its initial, operational mode to a new mode. The settings for Switches
5–8 vary depending on the PRO-BUS interface model, so refer to the corresponding
PRO-BUS manual for more information.

ATTACH PRO-BUS TO CORRESPONDING DEVICE

LEIGHTRONIX PRO-BUS interfaces are sold separately for many brands and models
of professional video equipment and are available with infrared, mini-jack, and multi-
LEIGHTRONIX, INC.
2010-07-09
interface in the second PRO-BUS chain where the first chain left off.
Switches 1–4 shown in Table 25, PRO-BUS Address Configuration are
repeated for each PRO-BUS chain (for example, Switches 1–4 for Device
1 and Device 17 are the same).
Table 25, PRO-BUS Address Configuration
DEVICE 02
1 2 3 4
DEVICE 06
1 2 3 4
DEVICE 10
1 2 3 4
DEVICE 14
1 2 3 4
Firmware Ver. 1.00.42/Software Ver. 1.0.2.6
DEVICE 03
1 2 3 4
DEVICE 07
1 2 3 4
DEVICE 11
1 2 3 4
DEVICE 15
1 2 3 4
NET Series
Appendix B
DEVICE 04
1 2 3 4
DEVICE 08
1 2 3 4
DEVICE 12
1 2 3 4
DEVICE 16
1 2 3 4
Page 143
