To the right of each output button is a box showing the current input and valid video
status. Green means valid video present, while gray indicates no valid video.
 NET-EC
When the Controller is a NET-EC, the lower right switcher section in the control
panel window will be one of the three panels shown in Illustration 85, Illustration 86,
and Illustration 87.
 Third party switchers (see Illustration 85): when the mouse pointer is placed
over an output button, a box appears in the upper left showing the current input
status of that output. This information also appears in a small flyover help box
below the pointer, as shown.

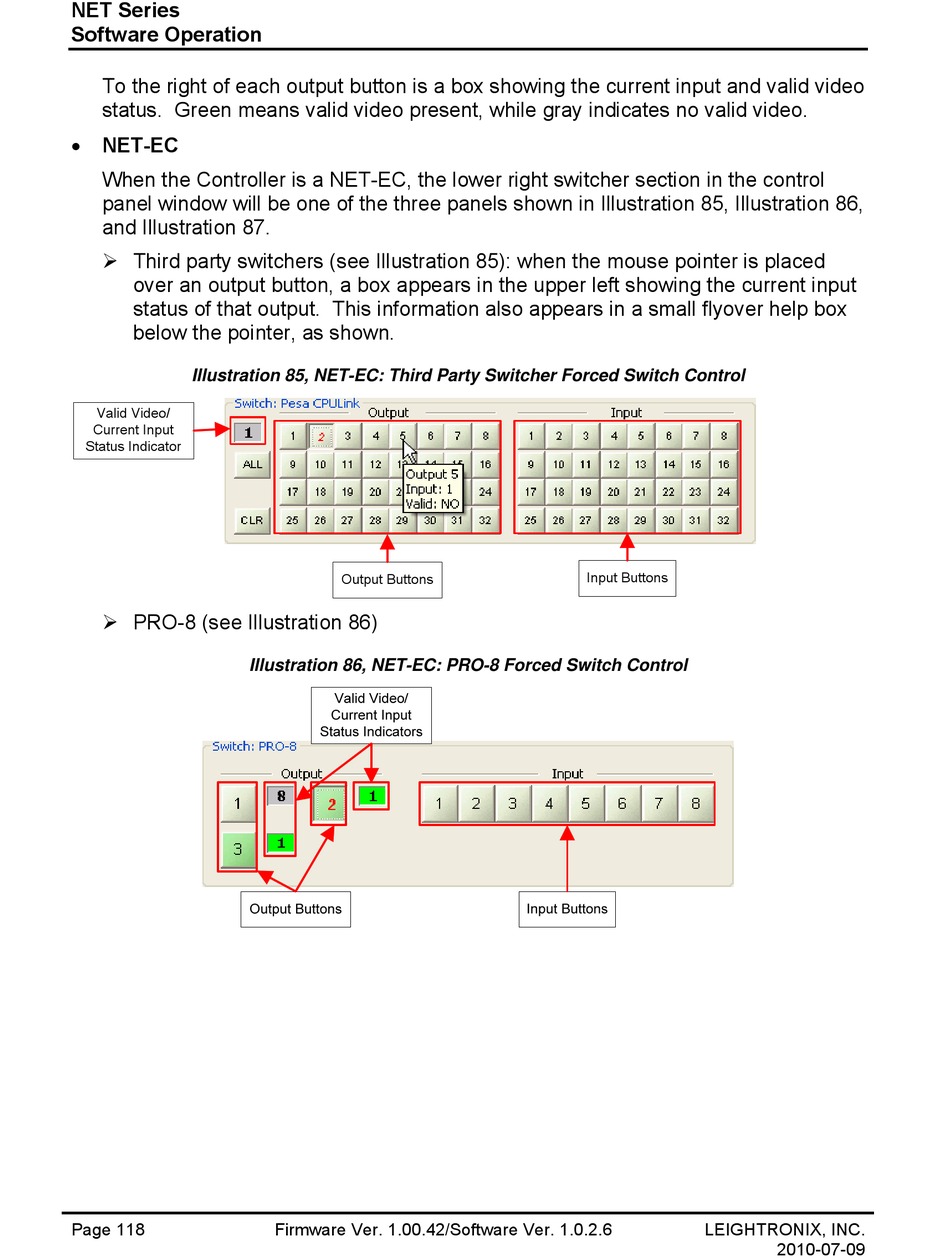

Illustration 85, NET-EC: Third Party Switcher Forced Switch Control

Valid Video/
Current Input
Status Indicator
 PRO-8 (see Illustration 86)

Illustration 86, NET-EC: PRO-8 Forced Switch Control
