NET Series
Software Installation and Configuration
CONFIGURING SITE INFORMATION AND CLOCK, UPDATING FIRMWARE, AND
REBOOTING CONTROLLER
1. In the "Tools" menu, choose "Controller" to open the dialog box shown in Illustration
29, "Controller" Dialog Box.
2. Use the "Controller" dialog box to set the following configuration maintenance
settings. After clicking "Get," "Set," "Update," or the "Reboot" button, you will be
prompted for confirmation to perform the action on the default or selected
Controller. Clicking "Yes" opens a box showing location name, action status,
progress bar, and connection and action attempt counts. An "action completed"
box appears when finished. If the action appears to be stalled or if you would like
to interrupt the action, click the "Cancel" button.
Click "Close" to close the Controller configuration dialog box.
 Site Information: click "Get" to obtain the current site name and location aliases.
If you would like to change this information, type the new aliases in the "Site
name" and "Site location" field and click "Set."
 Clock
NOTE: The clock and time zone may also be set from the Controller's front
panel.
 To set the Controller's time, click the "Set" button to the right of the PC time
shown. WinNET uses the PC time, PC time zone, and Controller time zone
Page 54

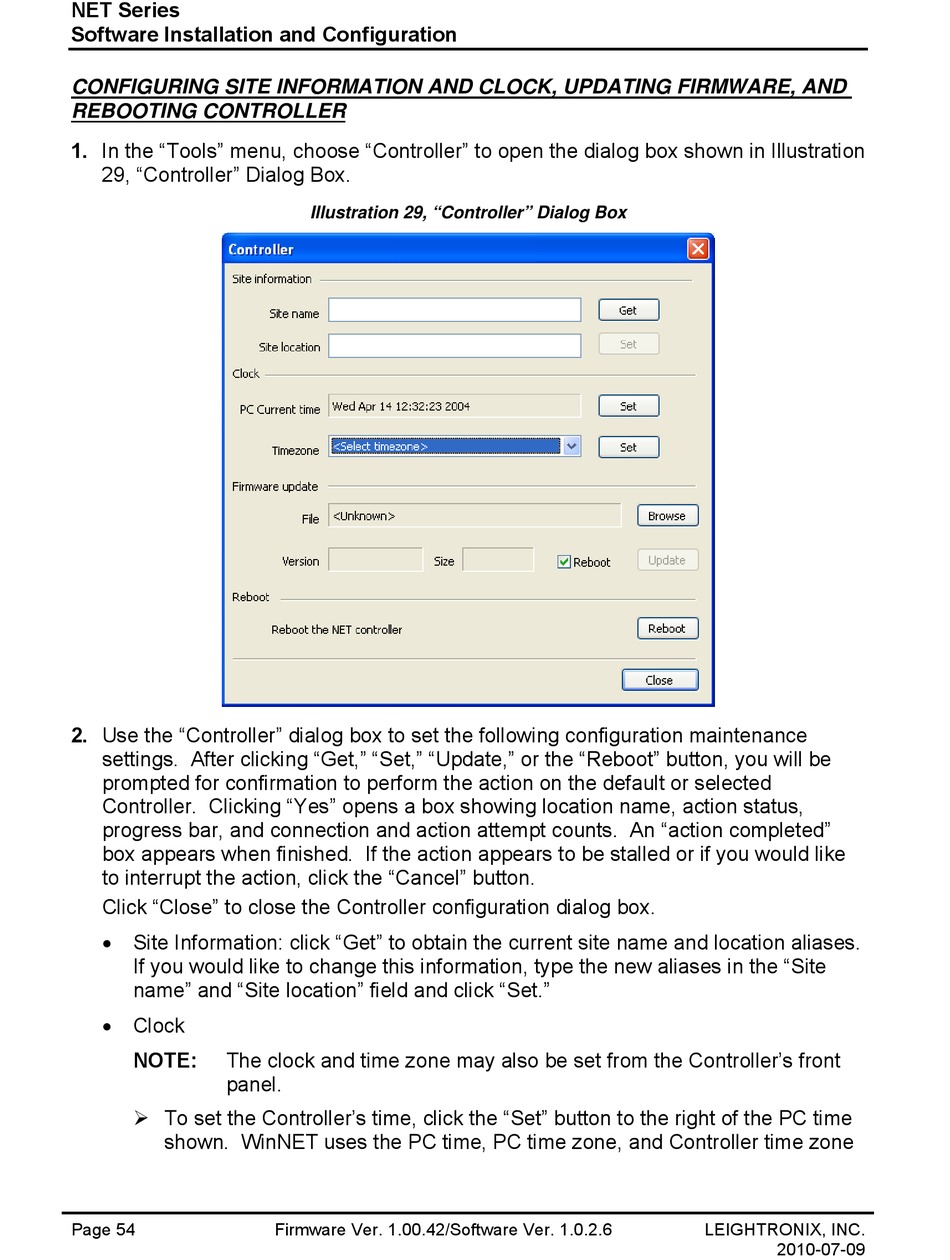

Illustration 29, "Controller" Dialog Box

Firmware Ver. 1.00.42/Software Ver. 1.0.2.6 LEIGHTRONIX, INC.
2010-07-09
