Hardware layout and configuration

STM32746G-EVAL evaluation board is designed around the STM32F746NGH6 (216-pin
TFBGA package) MCU. The hardware block diagram
illustrates the connection between STM32F746NGH6 MCU and peripherals (SDRAM,
SRAM, Nor Flash memory, QSPI Flash memory , Camera module, Color LCD, USB OTG
connectors, Motor control connector, USART, IrDA, Ethernet, Audio, CAN, RF-EEPROM,
microSD card and embedded ST-LINK/V2-1).
1. The red circles show the I/O shared among the default functions and the camera or
the motor control connectors.
All manuals and user guides at all-guides.com

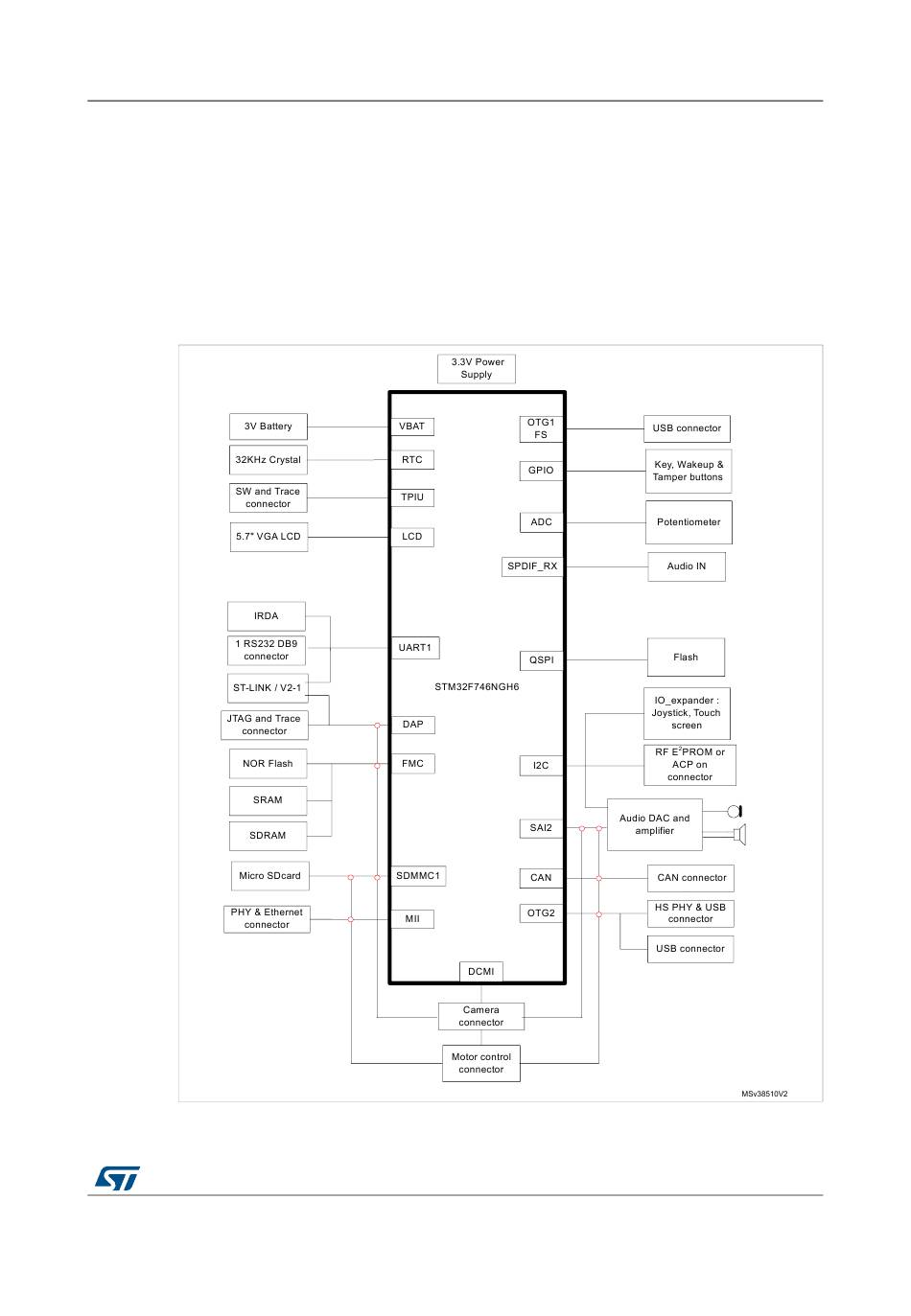

Figure 2. Hardware block diagram
