Hardware layout and configuration
Figure 3
will help the user to locate all these features on the actual evaluation board.
CN2
RF EEPROM
daughter oard
connector
CN5,CN6
Extension
header
U4
STM32F746NGH6
CN7
USART1
CN10,CN11
Memory
header
CN8
USB
OTG HS
CN13
USB
OTG FS
CN14
USB
OTG FS
CN17
Power Jack
CN21
ST-LINK/V2-1
USB
LD11
ST-LINK/V2-1
Power ver
U25 (CN17)
Left Digital
Microphone
(Coupon
connectors
ST-LINK/V2-1
COM LED
5.1
Embedded ST-LINK/V2-1
The ST-LINK/V2-1 programming and debugging tool is embedded on the STM32746G-
EVAL evaluation board. Compared to ST-LINK/V2 the changes are listed below.
The new features supported on ST-LINK/V2-1 are:
•
USB software re-enumeration
•
Virtual Com Port interface on USB
•
Mass storage interface on USB
•
USB power management request for more than 100 mA power on USB
10/79
All manuals and user guides at all-guides.com

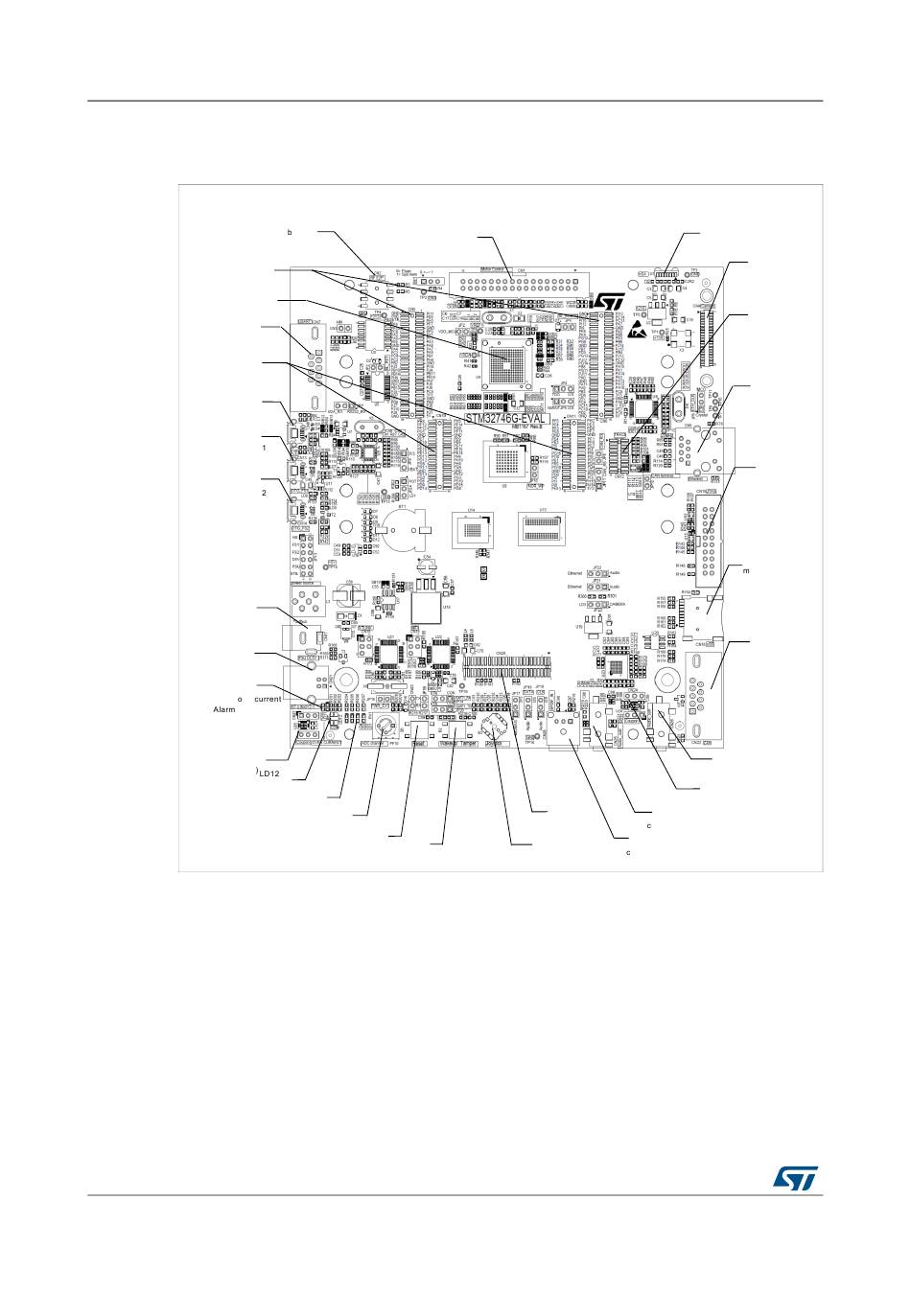

Figure 3. STM32746G-EVAL evaluation board layout
CN1
Motor control
connector
4 colors
LEDS
RV1
Potentiometer
B1
B2
Reset
Wakeup
Button
Button
DocID027916 Rev 2
U1
IrDA
U24 (CN24)
Right Digital
Microphone
CN20
CN25
(Coupon
Color LCD
Audio Line out
connectors)
Connector
onnector
CN28
B3
SPDIF_IN
Joystick
onnector
UM1902
CN4
Camera
extension
connector
CN12
ETM TRACE
CN9
Ethernet
RJ45
Connector
CN15
JTAG/SWD
CN16
icroSD card
CN22
CAN
CN26
Audio jack
