Introduction
This user manual describes the implementation of the EVALSP320SPLC evaluation board
(order code: EVALSP320SPLC). This evaluation board can be used to evaluate the
SPEAr320S microprocessor with a variety of devices and especially its Media Independent
Interface (MII) Automation mode.
The EVALSP320SPLC evaluation kit includes a single application board identified as "MII
mode".
The SPEAr320S microprocessor is mounted on a separate CPU board, which is not
included with the EVALSP320SPLC kit. It must be ordered separately with order code
EVALSP320SCPU.
The EVALSP320SCPU board must be plugged on the MII mode application board.
The MII mode application board is equipped with two Ethernet, three RS-232, one RS-485,
two CAN, SPI, I²C communication interfaces and MicroSD card socket with SDIO interface.
There are also two general-purpose push-buttons, four LEDs, a temperature sensor and a
potentiometer available for the user interface.
The application board also includes digital input/output serial/parallel connectors with a
pinout compatible to many existing evaluation boards from ST:
●
Digital input serial: STEVAL-IFP007V1
●
Digital input parallel: STEVAL-IFP004V1 and STEVAL-IFP008V1
●
Digital output serial: STEVAL-IFP009V1
●
Digital output parallel: STEVAL-IFP002V1, STEVAL-IFP001V1 and STEVAL-IFP006V1
The application board can be powered using a standard DC power supply (7 V to 30 V DC)
or directly using a 24 V DC industrial mains supply.
Figure 1.
March 2012
EVALSP320SPLC evaluation board for SPEAr320S
SPEAr320S MII mode application board
Doc ID 022703 Rev 2
UM1509
User manual
www.st.com
1/36
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST UM1509
Summary of Contents for ST UM1509
-

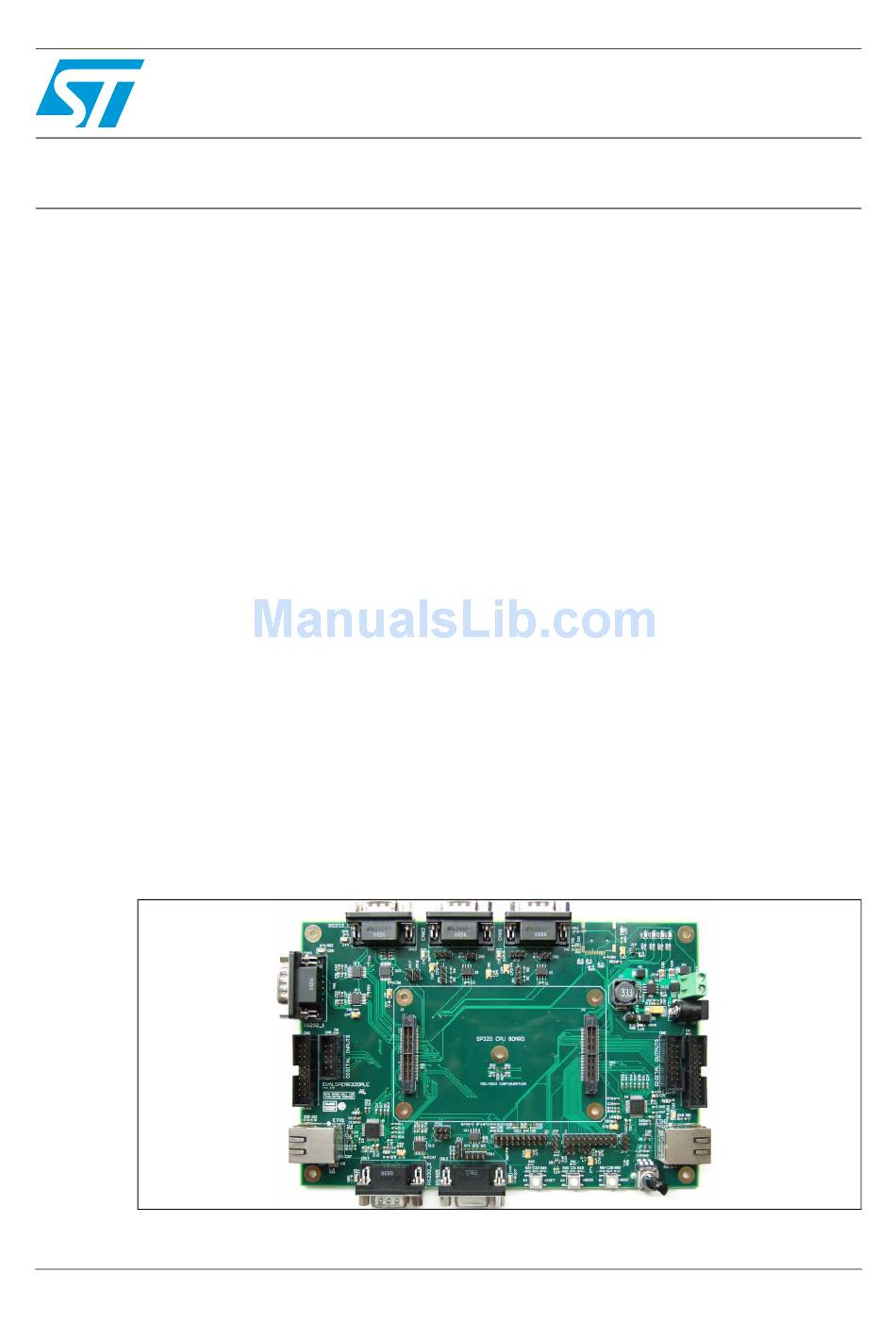

Page 1: Figure 1. Spear320S Mii Mode Application Board
There are also two general-purpose push-buttons, four LEDs, a temperature sensor and a potentiometer available for the user interface. The application board also includes digital input/output serial/parallel connectors with a pinout compatible to many existing evaluation boards from ST: ● Digital input serial: STEVAL-IFP007V1 ●... -
Page 2: Table Of Contents
Contents UM1509 Contents Application board features ........6 Application board block diagram . - Page 3 UM1509 Contents General-purpose GPIO and I2C connector (CN10) ....20 RS-485 DB9 socket and header connector (CN11 and CN12) ..21 5.10...
- Page 4 List of figures UM1509 List of figures Figure 1. SPEAr320S MII mode application board ........1 Figure 2.
- Page 5 UM1509 List of tables List of tables Table 1. MII addresses of the Ethernet PHYs (U5 and U6) ....... . 9 Table 2.
-
Page 6: Application Board Features
Application board features UM1509 Application board features ● 2 x Ethernet RJ-45 connectors (ST802RT1A) ● 2 x CAN DB9 plug connectors ● 3 x RS-232 DB9 plug connectors (ST3232EBTR) ● 1 x RS-485 DB9 socket connector (ST3485EBDR) ● Digital input connectors (parallel and serial) compatible with STEVAL-IFP007V1, STEVAL-IFP008V1 and STEVAL-IFP004V1 evaluation boards ●... -
Page 7: Application Board Layout
UM1509 Application board layout Application board layout Figure 3. Application board layout RS232_1/ Digital UART1 input serial Digital input parallel Ethernet1 CN14 RS232_0/ RS232_2/ UART0 UART2 SPEAr320 Reset CPU board CN12 RS485/ UART2 CAN1 CN10 GPIO, I2C connector connector CAN0... -
Page 8: Getting Started
Power on the board. The Terminal program displays a sequence of boot messages followed by the Linux console prompt. For more information, refer to user manual UM0844 "Getting started with Linux for SPEAr" available at www.st.com/spear. Booting The EVALSP320SPLC evaluation board can boot a Linux kernel pre-installed in the serial NOR Flash. -
Page 9: Configuration
UM1509 Configuration Configuration Ethernet There are two Ethernet PHYs (U5 and U6) available on the board that are connected through the media independent interfaces (MII) to the Ethernet MACs on the CPU board processor. By default the MII addresses of the Ethernet PHYs are selected as shown in Table Table 1. -
Page 10: Digital Input / Digital Output Connectors
Configuration UM1509 Table 3. SMI interface configuration (continued) Function Default configuration R93, R94, R27, R29 loaded MII1_MDC, MII1_MDIO used for both PHYs (U5, U6) R95, R96 not loaded R95, R96, R27, R29 loaded MII2_MDC, MII2_MDIO used for both PHYs (U5, U6) -
Page 11: Controller-Area Network Bus
UM1509 Configuration Figure 5. 8/16 input channel current limiter based on SCLT3-8, STEVAL-IFP007V1 Controller–area network bus The EVALSP320SPLC evaluation board supports two channels of CAN2.0A/B compliant controller–area network (CAN) bus communication based on a 3.3 V CAN transceiver. High- speed mode, standby mode and slope control mode are available and can be selected by setting jumper JP1 for CAN0 and jumper JP4 for CAN1. -
Page 12: Rs-232 And Rs-485 Transceivers
Configuration UM1509 Table 5. CAN1 transceiver settings Jumper Description Configuration 1 2 3 CAN1 transceiver works in standby mode when JP4 is set. CAN1 transceiver works in high-speed mode when JP4 is set 1 2 3 (Default). CAN1 transceiver works in slope control mode when JP4 is 1 2 3 open. -
Page 13: Power Supply
UM1509 Configuration Table 6. UART2 RS-232/RS-485 configuration (continued) Jumper Description Configuration 1 2 3 UART2_TX line is connected to the RS-485 transceiver U11. JP12 (SMD resistor) UART2_TX line is connected to the RS-232 transceiver U13 1 2 3 (Default). 1 2 3 UART2_RX line is connected to the RS-485 transceiver U11. -
Page 14: Temperature Sensor
Configuration UM1509 Table 8. U16 DC/DC converter jumpers Jumper Description Configuration Can be used to disconnect the +5 V delivered from the DC/DC JP14 converter U16 (Default - loaded). 1 2 3 For L7986A the jumper must be set (Default). -
Page 15: General-Purpose Buttons (B1 And B2)
UM1509 Configuration Table 9. ADC conversion settings Jumper Description Configuration Connects the +2.5 V ADC evaluation board ADC supply 1 2 3 voltage to the ADC_VREFP pin of the CPU board (Default). Connects the external ADC application supply voltage to the 1 2 3 ADC_VREFP pin of the CPU board. -
Page 16: Reset Button
Configuration UM1509 4.11 Reset button A manual reset button (B3) is available on the board's top side. It resets the microprocessor on the core board. It can be disconnected from the input reset signal of the core board by soldering out resistor R65. In order to perform a hardware reset of the first Ethernet PHY U5 (ETH1), it is necessary to drive low pin PL_GPIO66 of the microprocessor. -
Page 17: Connectors
UM1509 Connectors Connectors CAN DB9 plug connectors (CN1 and CN2) Figure 6. CAN DB9 plug connectors pinout Table 11. CAN DB9 plug connectors description Description Description 1, 4, 8 CANH CANL 3, 6 Chassis Optional supply voltage (+3.3 V or +5.0 V) Digital input serial connector (CN3) This connector enables connection of industrial output card STEVAL-IFP007V1. -
Page 18: Digital Output Serial Connector (Cn4)
Connectors UM1509 Digital output serial connector (CN4) This connector enables connection of industrial output card STEVAL-IFP009V1. Figure 8. Digital output serial connector pinout 8 10 12 14 16 18 20 11 13 15 17 19 Table 13. Digital output serial connector description... -
Page 19: Digital Output Parallel Connector (Cn6)
UM1509 Connectors Digital output parallel connector (CN6) This connector enables connection of industrial output cards: STEVAL-IFP002V1, STEVAL- IFP001V1, STEVAL-IFP006V1. Figure 10. Digital output parallel connector (CN6) pinout 8 10 12 14 11 13 Table 15. Digital output parallel connector (CN6) description... -
Page 20: General-Purpose Adc Connector (Cn9)
Connectors UM1509 General-purpose ADC connector (CN9) Figure 12. General-purpose ADC connector (CN9) pinout 8 10 12 14 16 18 20 11 13 15 17 19 Table 17. General-purpose ADC connector (CN9) description Signal Signal Signal Signal ADC VREF Negative or... -
Page 21: Rs-485 Db9 Socket And Header Connector (Cn11 And Cn12)
UM1509 Connectors RS-485 DB9 socket and header connector (CN11 and CN12) Figure 14. RS-485 DB9 socket connector CN11 pinout Table 19. RS-485 DB9 socket connector CN11 description Description Description +5.0 V Figure 15. RS-485 header connector CN12 pinout Table 20. -
Page 22: Rs-232/Uart2 Db9 Plug Connector (Cn14)
Connectors UM1509 Table 21. RS-232/UART0 DB9 plug connector (CN13) description Description Description UART0_DCD UART0_DSR UART0_RX UART0_RTS UART0_TX UART0_CTS UART0_DTR UART0_RI 5.11 RS-232/UART2 DB9 plug connector (CN14) Figure 17. RS-232/UART2 DB9 plug connector (CN14) pinout Table 22. RS-232/UART2 DB9 plug connector (CN14) description... -
Page 23: Microsd Card Connector (Cn16)
UM1509 Connectors Table 23. RS-232/UART1 DB9 plug connector (CN15) description Description Description NC (R81 can interconnect this pin with Connected to pin 4 pins 4 and 6) UART1_RX Connected to pin 8 UART1_TX Connected to pin 7 Connected to pin 6 5.13... -
Page 24: Power Supply Connectors (Cn17 And Cn18)
Connectors UM1509 5.14 Power supply connectors (CN17 and CN18) Figure 20. Power supply connector Figure 21. Power supply connector CN18 diagram CN17 diagram Table 25. Power supply connector CN18 description Signal Signal 24 V DC Table 26. Power supply connector CN17 description... -
Page 25: Table 27. 86-Pin Connector (J1) Description
UM1509 Connectors Table 27. 86-pin connector (J1) description (continued) Description Description Description MII1_COL MII1_CRS +5.0 V MII1_RXER SSP_CLK MII1_MDIO +5.0 V MII1_MDC SSP_MISO SSP_SS0 +5.0 V MII1_RXDV UART0_TX I2C_SCL / PL_GPIO4 UART2_TX SDAT1 / MicroSD card MII1_RXD2 data 1 UART0_RX... - Page 26 Connectors UM1509 Table 28. 86-pin connector (J2) description (continued) Description Description Description SDCD / MicroSD card PL_GPIO63 detect PL_GPIO56 MII2_RXD0 MII2_TXEN SDAT3 / MicroSD card DIDO54 / PL_GPIO54 AIN5 data 3 LED3 / PL_GPIO58 MII2_TXD1 MII2_TXD3 PL_GPIO57 / MicroSD DIDO74 / PL_GPIO74...
-
Page 27: Appendix A Application Board Bill Of Materials
UM1509 Application board bill of materials Appendix A Application board bill of materials Table 29. List of components Designator Qty. Description Value Order number Not assembled B1, B2, B3 SE Push button B3S-1000 C1, C3, C5, C6, C7, C8, C9, C10, C11,... - Page 28 Application board bill of materials UM1509 Table 29. List of components (continued) Designator Qty. Description Value Order number Not assembled YAMAICHI: PJS008- CN16 MicroSD card socket PJS008-2003 2003 (www.manudax.fr) 2-pin terminal block, 5.08 mm CN17 Terminal block pitch Input power connector, 4.4 V-...
- Page 29 UM1509 Application board bill of materials Table 29. List of components (continued) Designator Qty. Description Value Order number Not assembled R9, R23, R33, R47 Resistor (0603) 1.2 kΩ and R99 R14 and R39 Resistor (0603) 5.6 kΩ R15 and R40 Resistor (0603) 91 kΩ...
-
Page 30: Appendix B License Agreements
All other warranties, conditions or other terms implied by law are excluded to the fullest extent permitted by law. LIMITATION OF LIABILITIES. In no event ST or its licensors shall be liable to You or any third party for any indirect, special,... - Page 31 Demo Product if any. TERMINATION. ST may terminate this license at any time if You are in breach of any of its terms and conditions. Upon termination, You will immediately destroy or return all copies of the demo software and documentation to ST.
- Page 32 Licensed Software or any portion or derivative thereof, for use with processors manufactured by or for an entity other than ST is a material breach of this Agreement and requires a separate license from ST. No source code and/or object code relating to and/or based upon Licensed Software is to be made available by You to any third party for whatever reason.
- Page 33 You will take all reasonable precautions to ensure and monitor their compliance with such requirements. You agree to promptly notify ST in the event of a violation of any of the foregoing, and to cooperate with ST to take any remedial action appropriate to address the violation.
- Page 34 License agreements UM1509 SEVERABILITY If any provision of this agreement is or becomes, at any time or for any reason, unenforceable or invalid, no other provision of this agreement shall be affected thereby, and the remaining provisions of this agreement shall continue with the same force and effect as if such unenforceable or invalid provisions had not been inserted in this Agreement.
-
Page 35: Revision History
UM1509 Revision history Revision history Table 30. Document revision history Date Revision Changes 01-Mar-2012 Initial release. Modified introduction to indicate that the CPU board is ordered 21-Mar-2012 separately and removed CPU board hardware description sections. Doc ID 022703 Rev 2... - Page 36 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
