Camera Module Connector Cn4; Table 20. Camera Module Connector Cn4; Figure 11. Camera Module Connector Cn4 (Top View) - ST User Manual User Manual

Connector
6.4

Camera module connector CN4

Pin number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
32/79
All manuals and user guides at all-guides.com

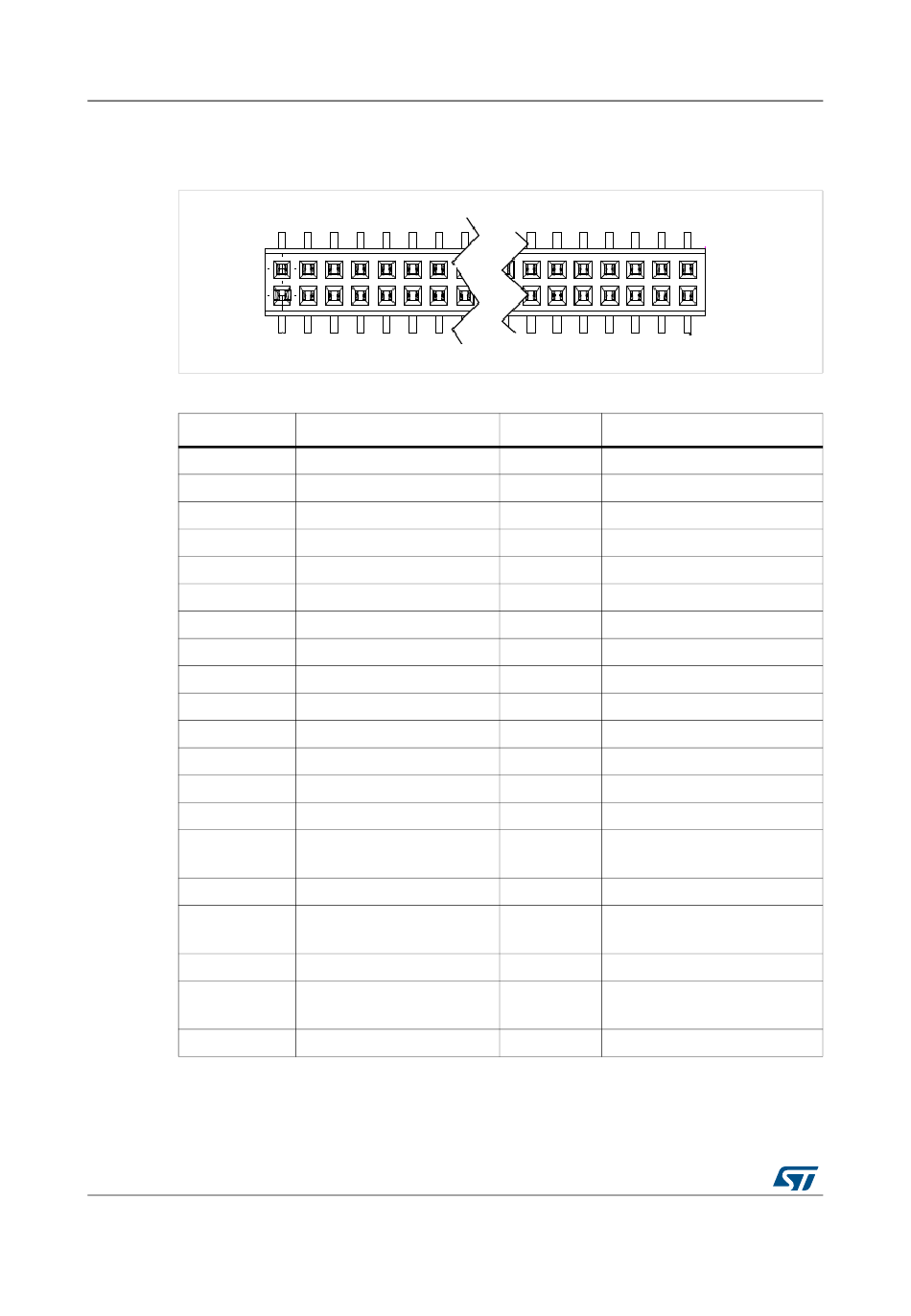

Figure 11. Camera module connector CN4 (Top view)

Table 20. Camera module connector CN4

Description
+1.8V
+1.8V
GND
GND
D10(PD6)
D11(PD2)
GND
GND
D8(PC10)
D9(PC12)
GND
GND
I2C1_SCL(PB8)
I2C1_SDA(PB9)
Camera_PLUG
(MFX GPIO12)
GND
RST IN
(MFX GPIO11)
Test point 7
XSDN
(MFX GPIO10)
Camera clock
DocID027916 Rev 2
Pin number Description
21 GND
22 GND
23 D0(PC6)
24 D1(PC7)
25 D2(PC8)
26 D3(PC9)
27 D4(PC11)
28 D5(PD3)
29 D6(PE5)
30 D7(PE6)
31 HSYNC(PA4)
32 VSYNC(PB7)
33 PCLK(PA6)
34 Test point8
35 Test point11
36 Test point10
37 GND
38 GND
39 +2.8V
40 +2.8V
