SW INSTALLATION
Set the Linear offset (X,Y,Z) and the Rotation in RPY (Roll-Pitch-Yaw) values to adjust the
OnRobot device dependent calculated TCP.

5.1.1.2. 2FGP20

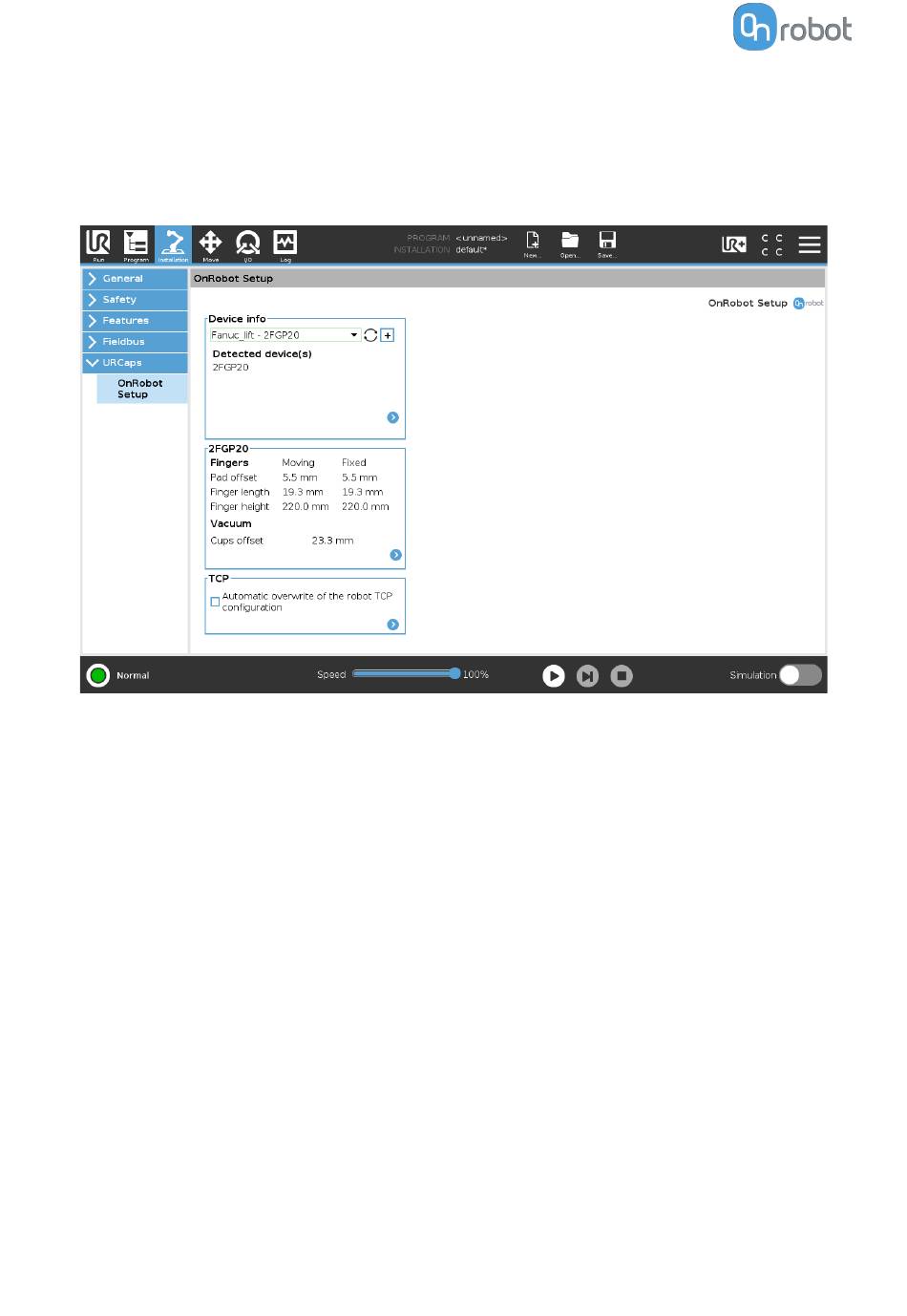

The configuration panels for the 2FGP20 are shown in the images below:
2FGP20
In the normal view of the panel, the selected Pad offset, Finger length, Finger height and
Vacuum cups offset are shown. These values can be set for both the Moving finger and the
Fixed finger.
