HW INSTALLATION

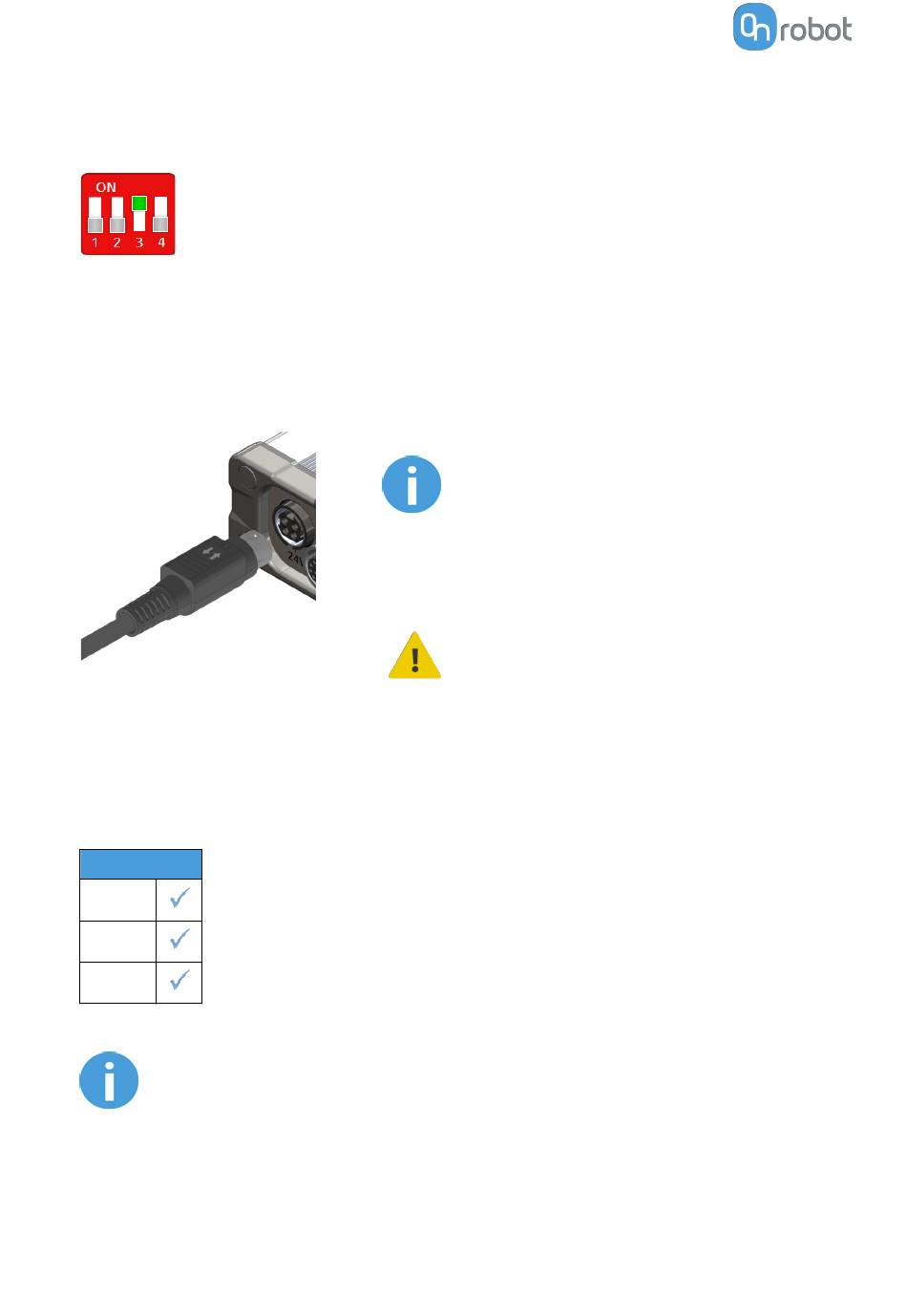

4.5.3. Compute Box DIP Switch Settings

Set the DIP switches of the Compute Box as follows:
Set the DIP switch 3 to ON and the DIP switch 4 to OFF position.
For more information about the Ethernet interface settings, see
Setup.

4.5.4. Power Supply: Compute Box

Connect the supplied power supply to the Compute Box 24V connector.
Finally, power up the power supply that will power the Compute Box and the connected
Tool(s).

4.5.4.1. 2FGP20

Power Supply
1.5 A
5 A
6.25 A
NOTE:
For the 1.5 A power supply, the force is limited. For more information, see the
Force vs Current Graph in the
7.1.1. Ethernet Interface
NOTE:
To disconnect the power connector,
make sure to pull the connector housing
(where the arrows are shown) and not
the cable.
CAUTION:
Use only original OnRobot power
supplies.
8.1.1. Technical Sheet.
