Extron electronics NAV E 101 DTP User Manual page 52

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

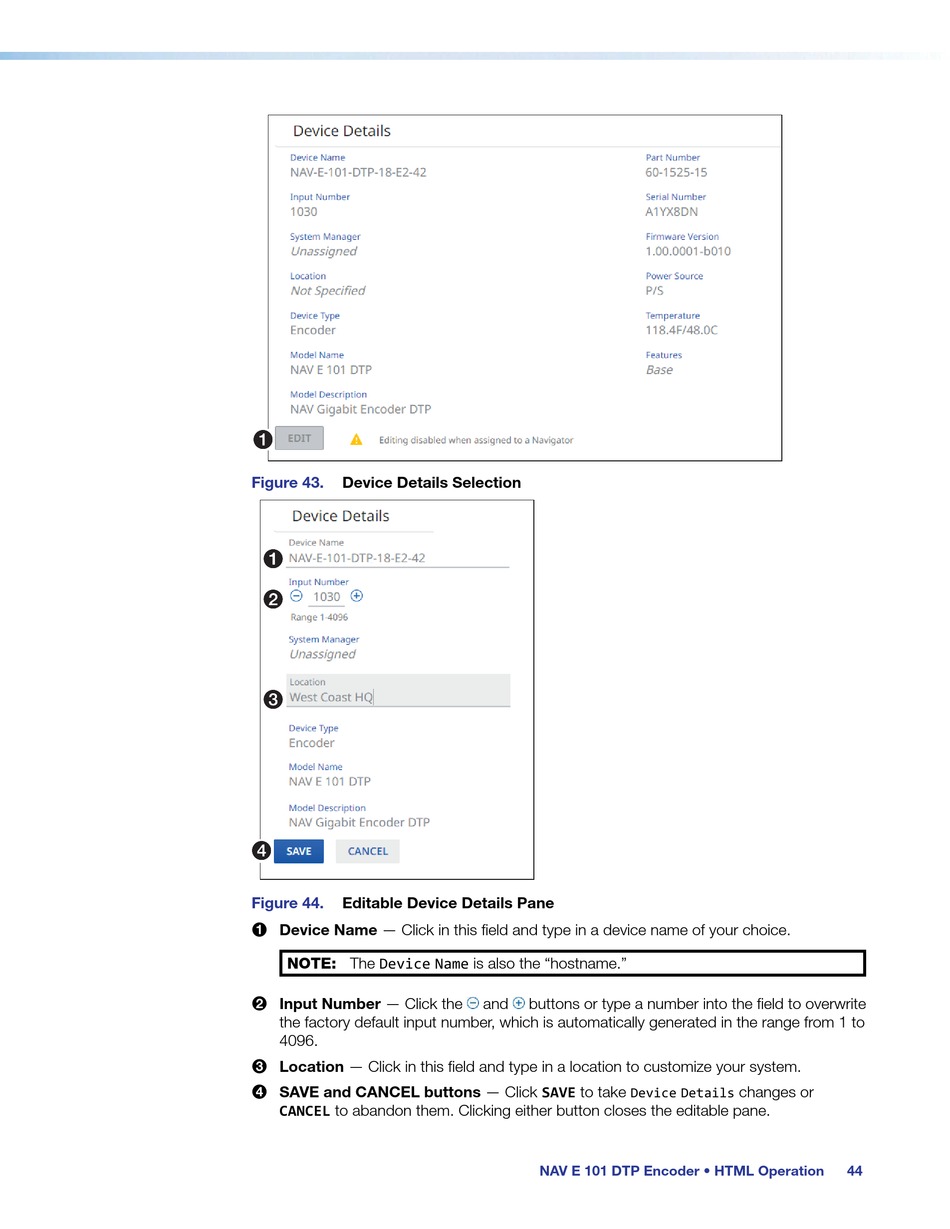

Figure 43. Device Details Selection
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Figure 44. Editable Device Details Pane
Device Name — Click in this field and type in a device name of your choice.
1
NOTE: The Device Name is also the "hostname."
Input Number — Click the
2
the factory default input number, which is automatically generated in the range from 1 to
4096.
Location — Click in this field and type in a location to customize your system.
3
SAVE and CANCEL buttons — Click SAVE to take
4
CANCEL to abandon them. Clicking either button closes the editable pane.
and buttons or type a number into the field to overwrite
Device Details
NAV E 101 DTP Encoder • HTML Operation
changes or
44
