Typical Input Display

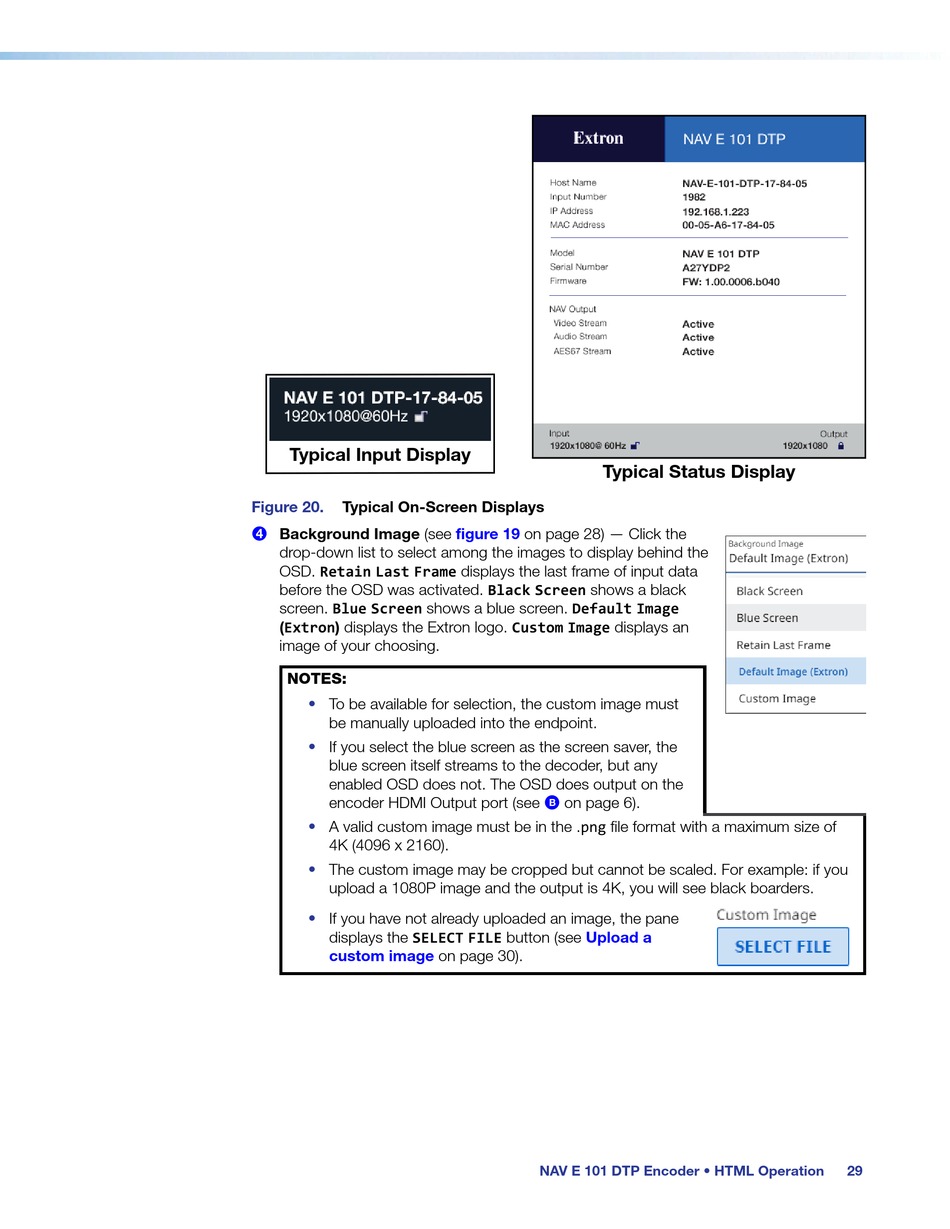

Figure 20. Typical On-Screen Displays
Background Image (see
4
drop-down list to select among the images to display behind the
OSD. Retain Last Frame displays the last frame of input data
before the OSD was activated. Black Screen shows a black
screen. Blue Screen shows a blue screen. Default Image
(Extron) displays the Extron logo. Custom Image displays an
image of your choosing.
NOTES:
• To be available for selection, the custom image must
be manually uploaded into the endpoint.
• If you select the blue screen as the screen saver, the
blue screen itself streams to the decoder, but any
enabled OSD does not. The OSD does output on the
encoder HDMI Output port (see
• A valid custom image must be in the .png file format with a maximum size of
4K (4096 x 2160).
• The custom image may be cropped but cannot be scaled. For example: if you
upload a 1080P image and the output is 4K, you will see black boarders.
• If you have not already uploaded an image, the pane
displays the SELECT FILE button (see
custom image
Typical Status Display
figure 19 on page 28) — Click the
on page 6).
B
Upload a
on page 30).
NAV E 101 DTP Encoder • HTML Operation 29
