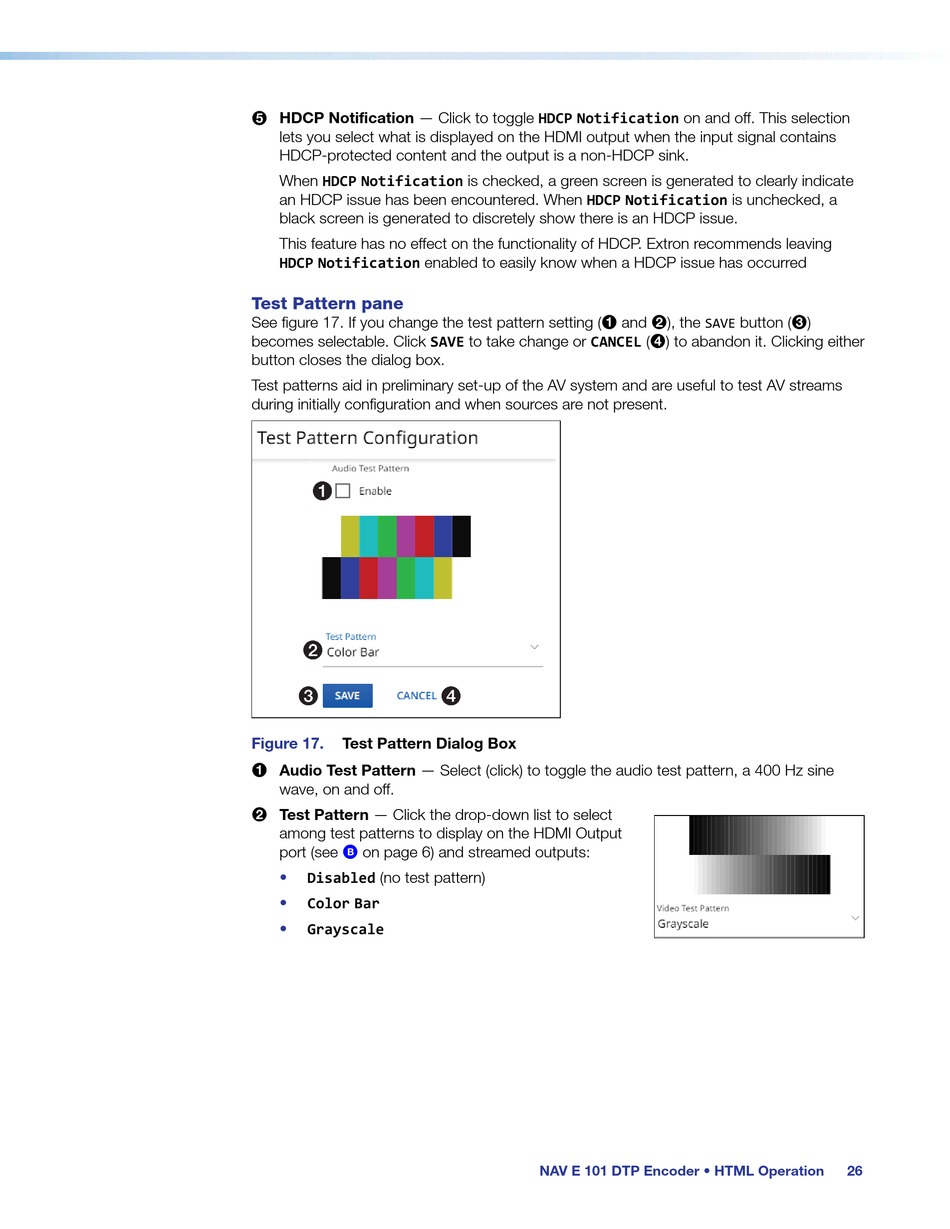

HDCP Notification — Click to toggle HDCP Notification on and off. This selection
5
lets you select what is displayed on the HDMI output when the input signal contains
HDCP-protected content and the output is a non-HDCP sink.
When HDCP Notification is checked, a green screen is generated to clearly indicate
an HDCP issue has been encountered. When HDCP Notification is unchecked, a
black screen is generated to discretely show there is an HDCP issue.
This feature has no effect on the functionality of HDCP. Extron recommends leaving
HDCP Notification enabled to easily know when a HDCP issue has occurred
Test Pattern pane
See figure 17. If you change the test pattern setting (
becomes selectable. Click SAVE to take change or CANCEL (
button closes the dialog box.
Test patterns aid in preliminary set-up of the AV system and are useful to test AV streams
during initially configuration and when sources are not present.
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Figure 17. Test Pattern Dialog Box
Audio Test Pattern — Select (click) to toggle the audio test pattern, a 400 Hz sine
1
wave, on and off.
Test Pattern — Click the drop-down list to select
2
among test patterns to display on the HDMI Output
port (see on page 6) and streamed outputs:
B
• Disabled (no test pattern)
Color Bar
•
• Grayscale
1
4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
NAV E 101 DTP Encoder • HTML Operation
and ), the button (
SAVE
2 3
) to abandon it. Clicking either
4
)
26
