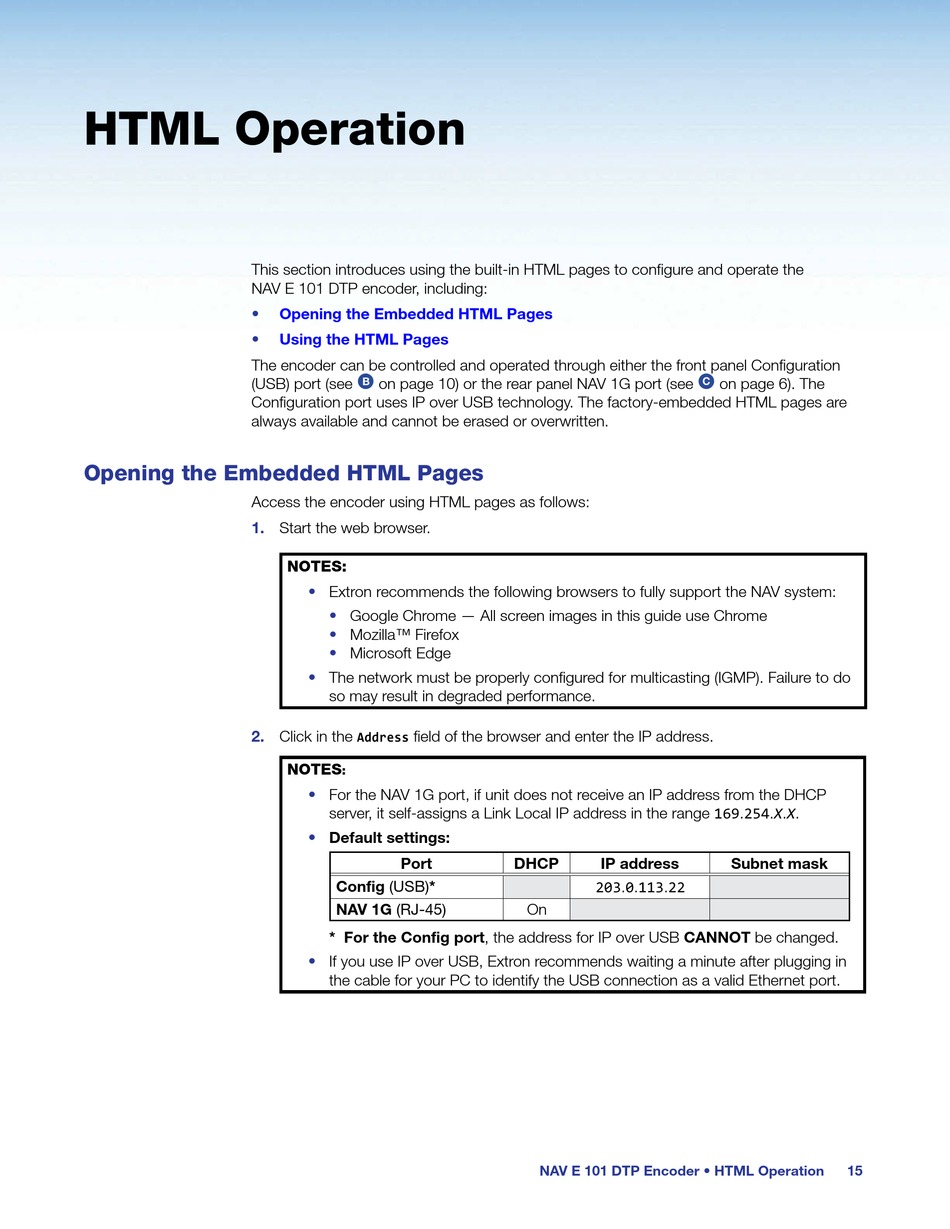

HTML Operation
This section introduces using the built-in HTML pages to configure and operate the
NAV E 101 DTP encoder, including:
•
•
The encoder can be controlled and operated through either the front panel Configuration
(USB) port (see
Configuration port uses IP over USB technology. The factory-embedded HTML pages are
always available and cannot be erased or overwritten.
Opening the Embedded HTML Pages
Access the encoder using HTML pages as follows:
1.
2.
Opening the Embedded HTML Pages
Using the HTML Pages
B
on page 10) or the rear panel NAV 1G port (see
Start the web browser.
NOTES:
• Extron recommends the following browsers to fully support the NAV system:
• Google Chrome — All screen images in this guide use Chrome
• Mozilla™ Firefox
• Microsoft Edge
•
The network must be properly configured for multicasting (IGMP). Failure to do
so may result in degraded performance.
Click in the field of the browser and enter the IP address.
Address
NOTES
:
• For the NAV 1G port, if unit does not receive an IP address from the DHCP
server, it self-assigns a Link Local IP address in the range 169.254.X.X.
• Default settings:
Port
Config (USB)*
NAV 1G (RJ-45)
* For the Config port, the address for IP over USB CANNOT be changed.
• If you use IP over USB, Extron recommends waiting a minute after plugging in
the cable for your PC to identify the USB connection as a valid Ethernet port.
DHCP IP address
203.0.113.22
On
NAV E 101 DTP Encoder • HTML Operation
C
on page 6). The
Subnet mask
15
