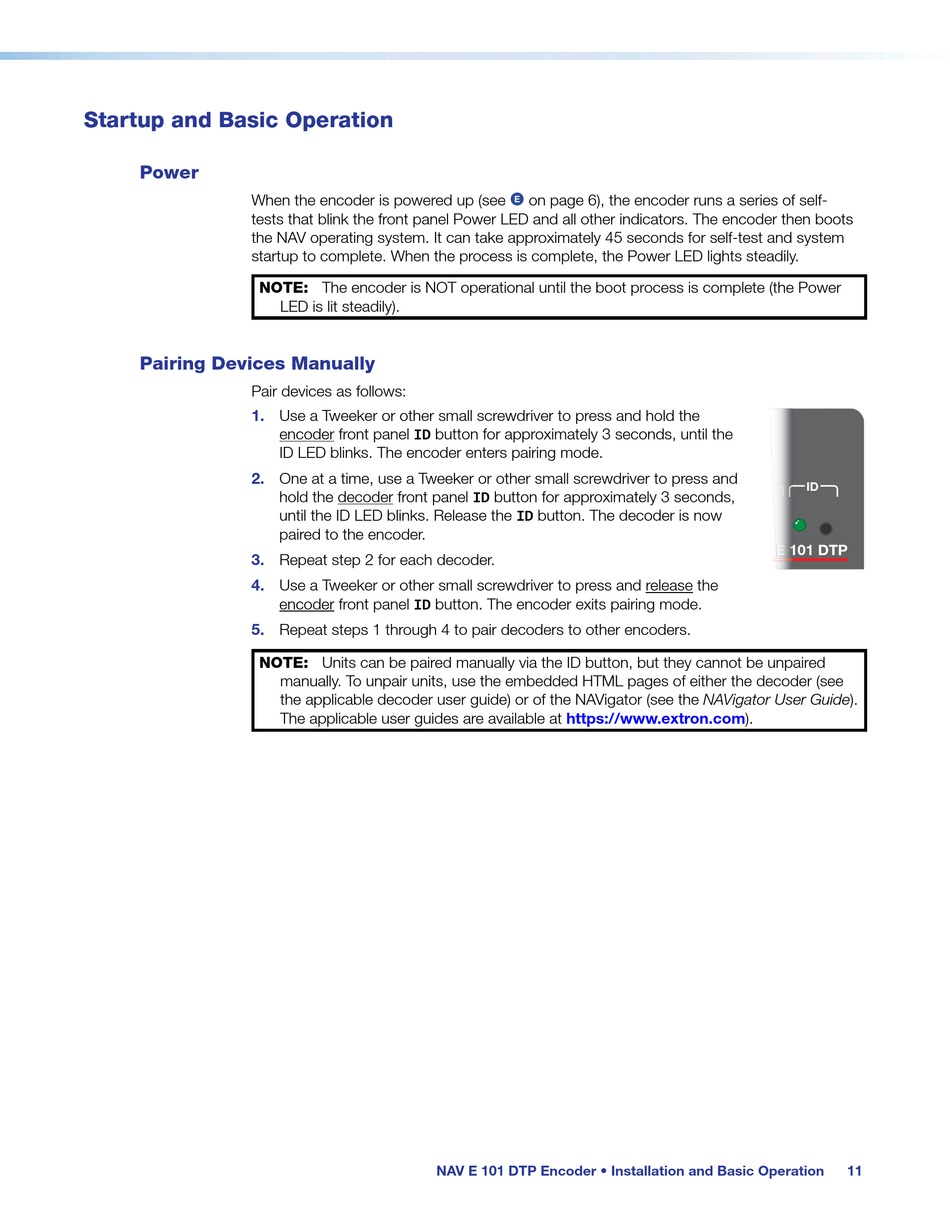

Startup and Basic Operation
Power
When the encoder is powered up (see
tests that blink the front panel Power LED and all other indicators. The encoder then boots
the NAV operating system. It can take approximately 45 seconds for self-test and system
startup to complete. When the process is complete, the Power LED lights steadily.
NOTE: The encoder is NOT operational until the boot process is complete (the Power
Pairing Devices Manually
Pair devices as follows:
1.
2.
3.
4.
5.
NOTE: Units can be paired manually via the ID button, but they cannot be unpaired
LED is lit steadily).
Use a Tweeker or other small screwdriver to press and hold the
encoder front panel ID button for approximately 3 seconds, until the
ID LED blinks. The encoder enters pairing mode.
One at a time, use a Tweeker or other small screwdriver to press and
hold the decoder front panel ID button for approximately 3 seconds,
until the ID LED blinks. Release the ID button. The decoder is now
paired to the encoder.
Repeat step 2 for each decoder.
Use a Tweeker or other small screwdriver to press and release the
encoder front panel ID button. The encoder exits pairing mode.
Repeat steps 1 through 4 to pair decoders to other encoders.
manually. To unpair units, use the embedded HTML pages of either the decoder (see
the applicable decoder user guide) or of the NAVigator (see the NAVigator User Guide).
The applicable user guides are available at https://www.extron.com).
NAV E 101 DTP Encoder • Installation and Basic Operation
on page 6), the encoder runs a series of self-
E
ID
E
E
E
E 101 DTP
1
1
1
1
11
