PCIe x16-to-two-x8 Adapter Card

The Express-BL can be used with the PCIe x16-to-two-x8 Adapter Card on the Express-BASE6 Reference Carrier to support bifurbication of
the CPU's PEG interface (PCIe x16). The card reroutes the PCIe x16 to two x8 and allows testing of two independent PCIe add-on cards
with x8/x4/x2/x1 width. To use the card, refer to 4.6.2 PCI Express Configuration Switch and set the switch to "2x PCIe x8".

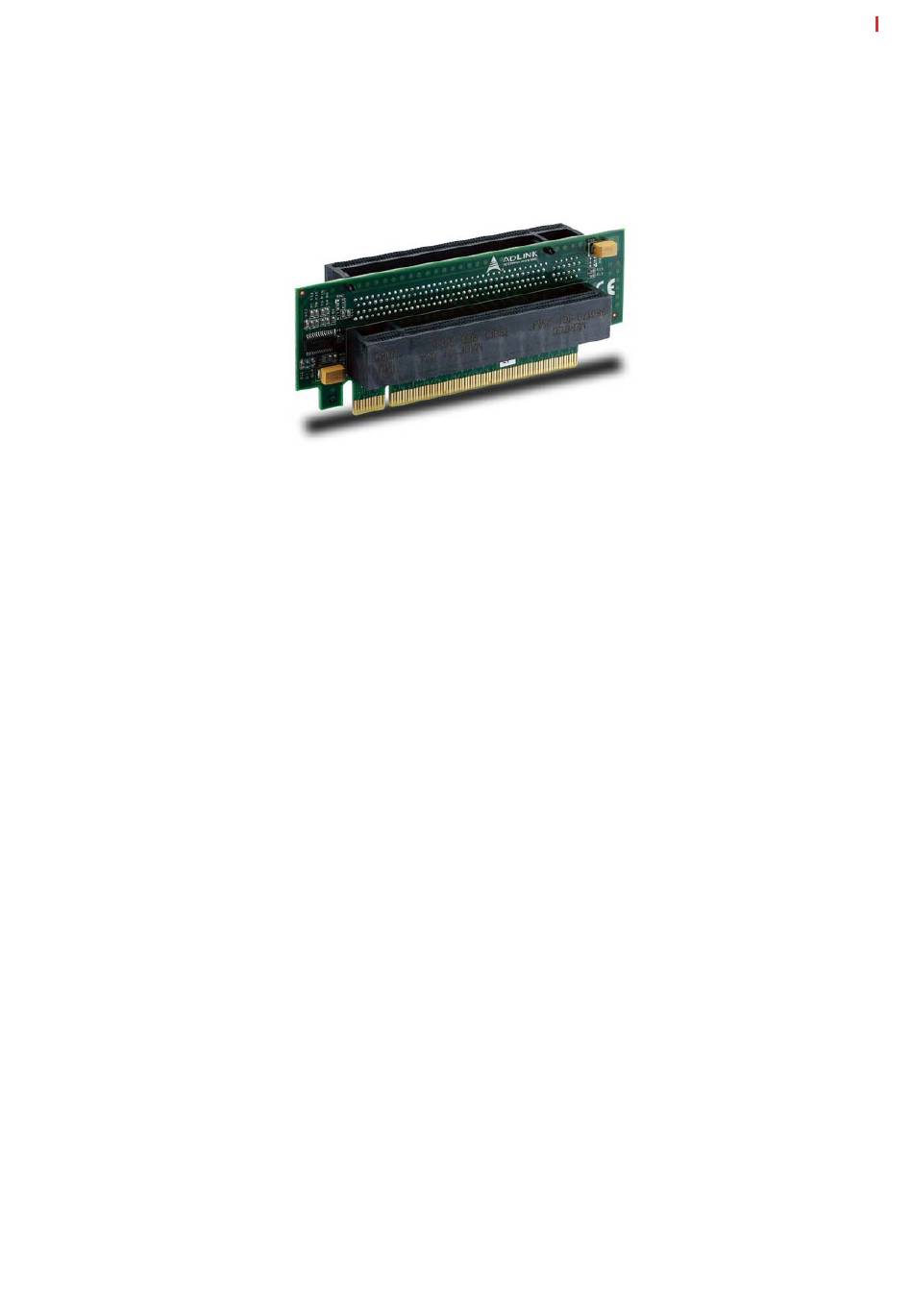

PCIex16-to-two-x8 Adapter Card
(Model: P16TO28, Part No.: 91-79301-0010)
