Installation
5
Installation
5.1

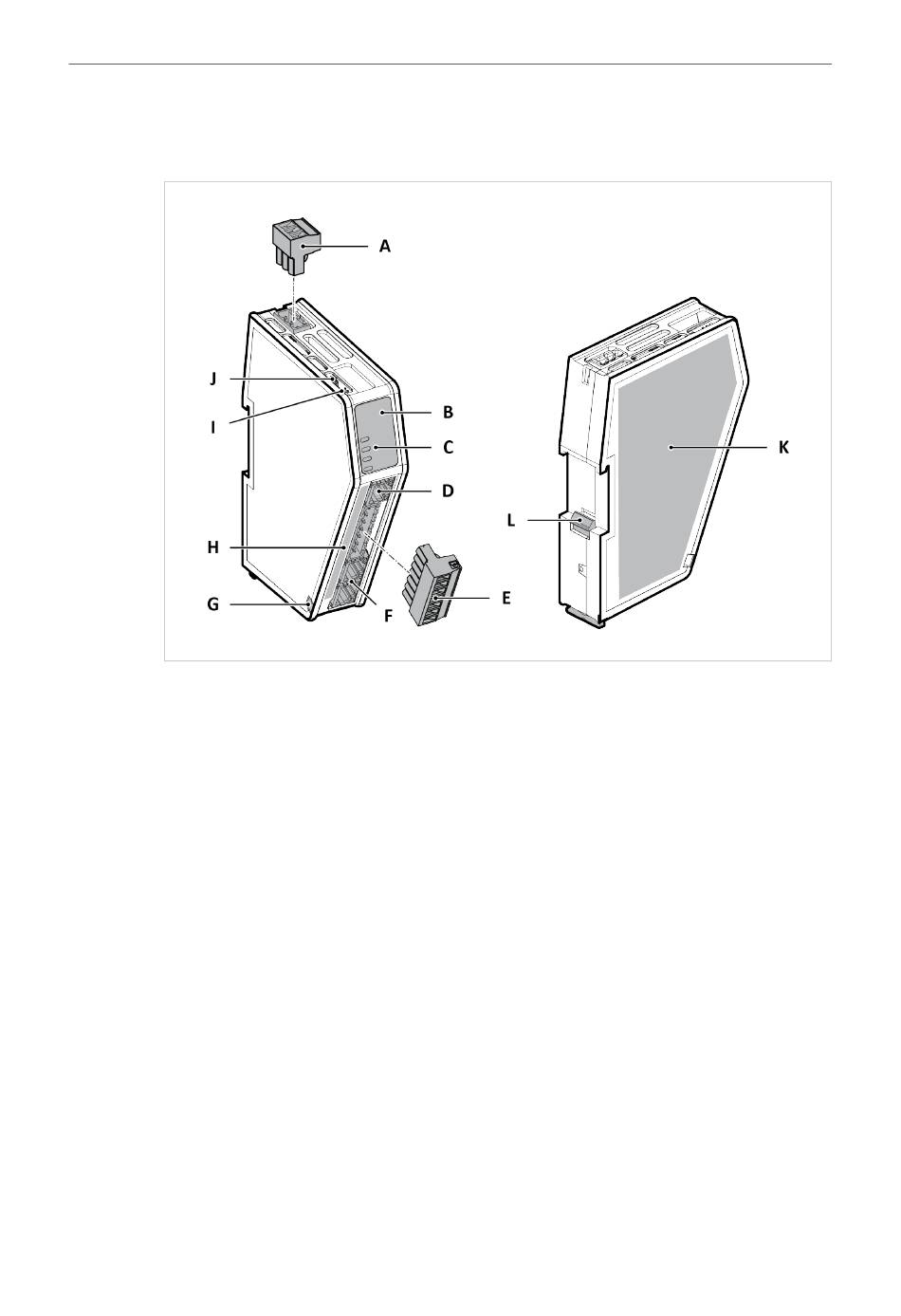

External Parts
A.
Power connector
B.
Label with LED designation
C.
Status LEDs
D.
Configuration port
®
™
Anybus
Communicator
User Manual
E.
7-pin connector
F.
Modbus TCP port x 2
G.
Cable tie mount
H.
Laser engraved connectors
designation
16 (124)
I.
Security switch
J.
Factory reset button
K.
Laser engraved label with
product information
L.
DIN rail locking mechanism
SCM-1202-162 1.1 en-US
