Installation

5 Installation
5.1

Installing the Software

To create a configuration for the CANbridge NT, the CAN-Gateway Configurator running on a
Windows system and the Ixxat VCI driver are needed.
The VCI driver is constantly improved and expanded! Check if a newer version is available on
www.ixxat.com/driver-windows.
The CAN-Gateway Configurator and the device firmware are constantly improved and expanded! Check if
newer versions are available within the product support pages on
www.ixxat.com/support-bridges-gateways.
► Install the latest VCI driver on a Windows computer (see Installation Guide VCI Driver).
► Download the CAN-Gateway Configurator CANbridge NT & CAN@net NT 100/200/420
package from the product support pages on www.ixxat.com/support-bridges-gateways.
► Start the Ixxat CanGWconfig Setup.
→ Installation wizard starts automatically.
Follow the instructions in installation program.
►
→ By default the CAN-Gateway Configurator is stored in C:\Program Files\HMS\Ixxat CAN-
Gateway Configurator V6.
→ The examples for (LUA and configuration) are stored in C:\Users\Public\Documents
\HMS\Ixxat CAN-Gateway Configurator\Examples.
► Check the firmware version in C:\Users\Public\Documents\HMS\Ixxat CAN-Gateway
Configurator\Examples\firmware and check if a newer firmware version is available on
ixxat.com/support-bridges-gateways
If newer firmware version is available, update the firmware (see
►
Firmware, p.
In Windows Start menu open folder Ixxat CANGWconfig and start CAN-Gateway
►
Configurator V6.
With the CANbridge NT 200 it is possible to open existing configuration files that are not configured via
the CAN-Gateway Configurator: open menu File and select Import legacy configuration.
5.2

Installing the Hardware

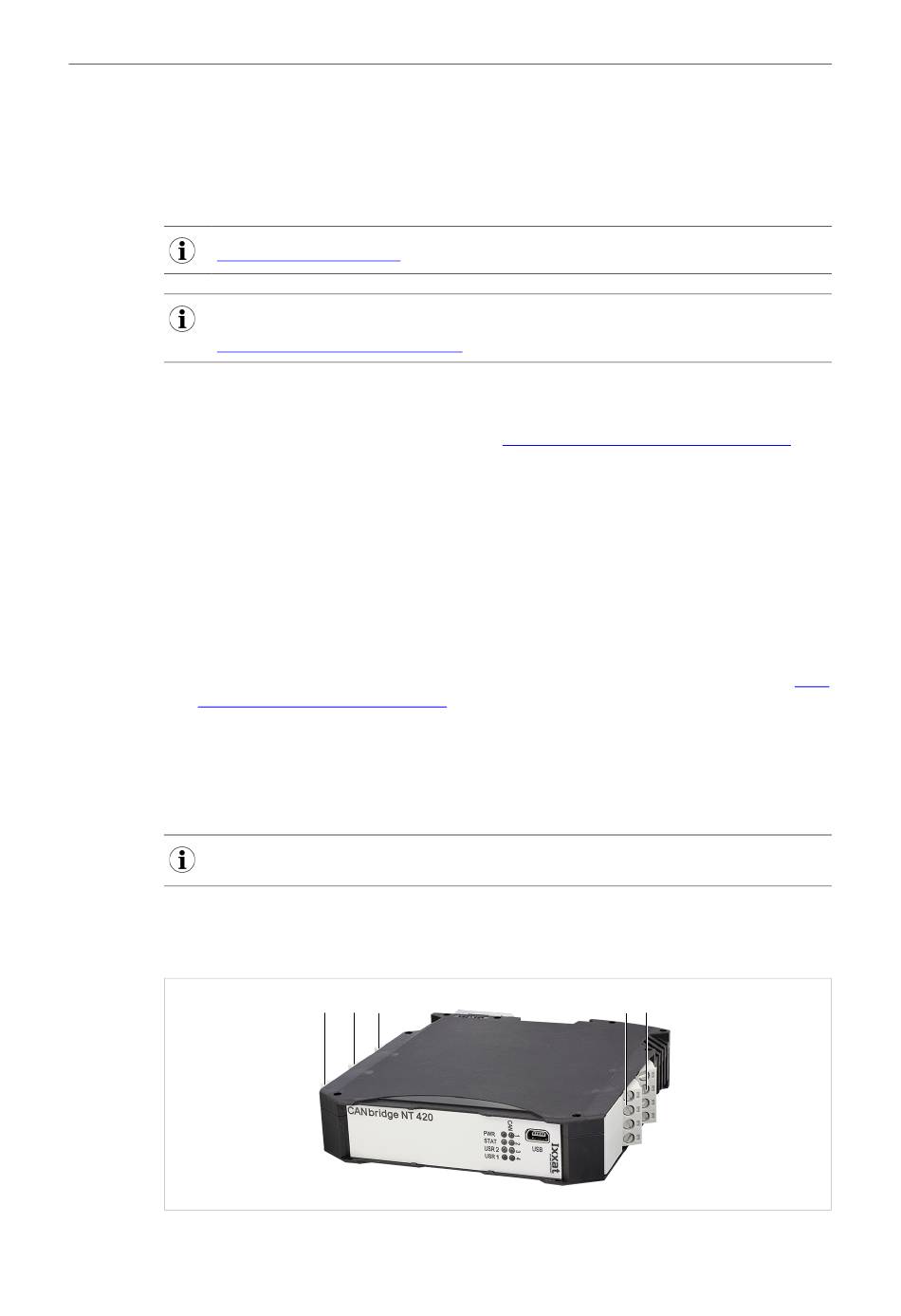

Fig. 1 Connectors
CANbridge NT User Manual
11).
2
1 3
Updating the Device
4 5
