Installation
5.5

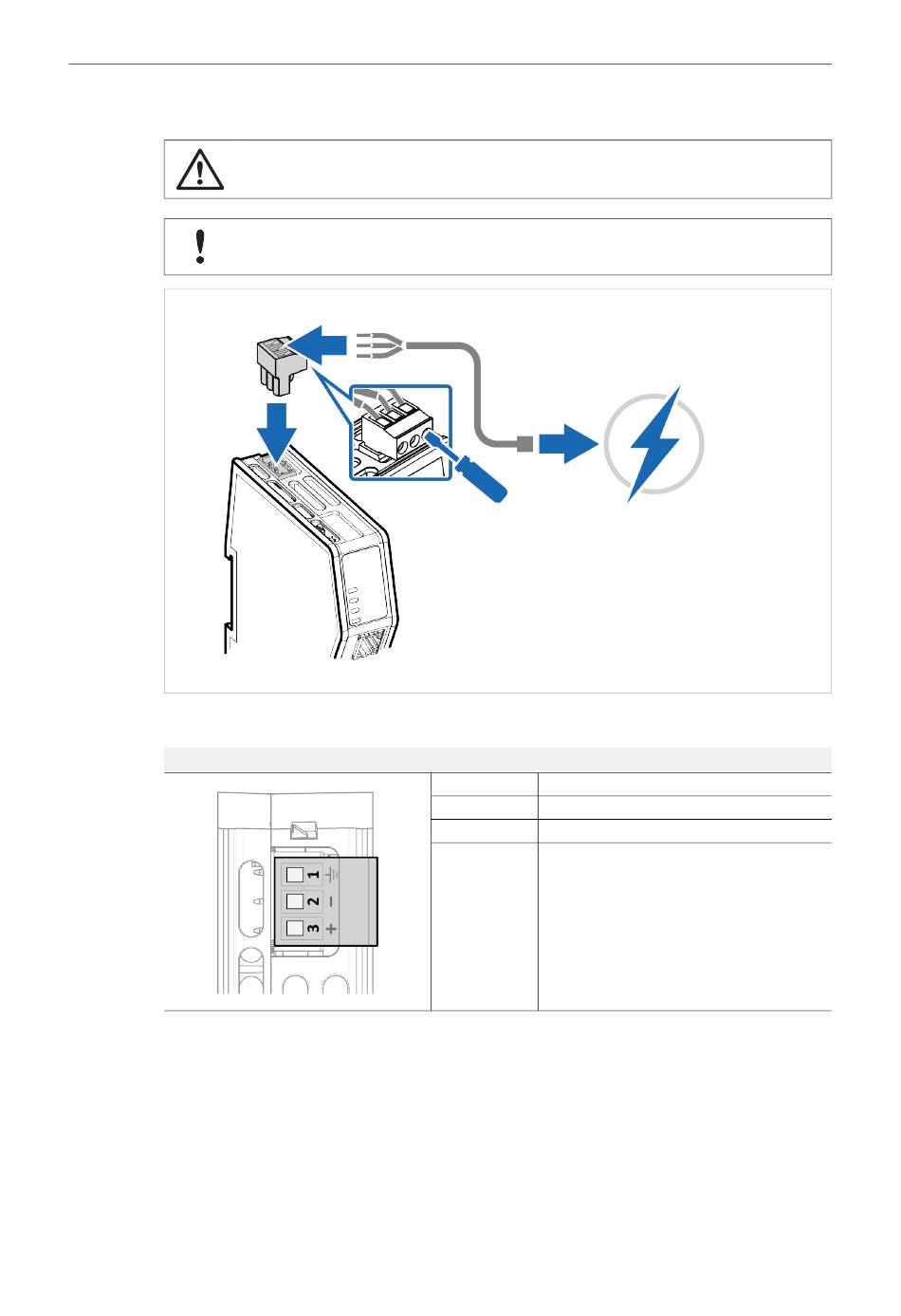

Connecting to Power
1.
Insert the cable wires to the terminal block and tighten the wire clamp screws.
Power port
2.
Connect the terminal block to the Communicator.
3.
Connect the Communicator to a power supply.
4.
Turn on the power supply.
To Do Next
Connect the Communicator to the Modbus TCP and serial subnetwork.
Check LED status, refer to
®
™
Anybus
Communicator
User Manual
Caution
Ensure that the power supply is turned off before connecting it to the equipment.
Using the wrong type of power supply can damage the equipment. Ensure that the power
supply is connected properly and of the recommended type.
Communicator LED Indicators, p.
Pin
Description
1
Functional Earth (FE)
2
Ground (GND)
3
12-30 VDC Power Connector
87.
20 (124)
SCM-1202-162 1.1 en-US
