Anybus Communicator - PROFINET Device to PROFIBUS Device

5. Installation

5.1. External Parts

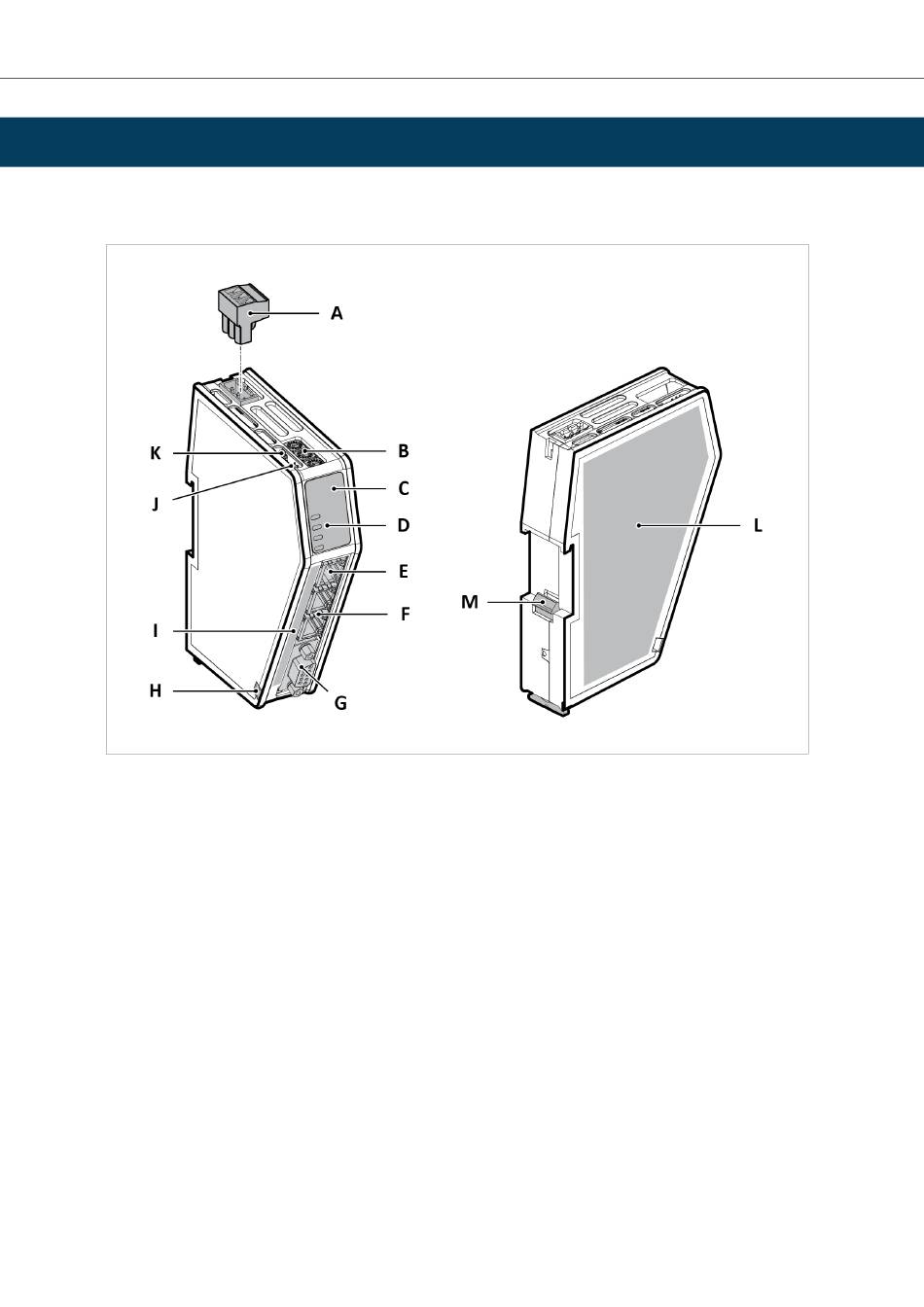

Figure 3. External parts
A. Power connector
B. Rotary Switch x 3
For PROFIBUS address
C. Label with LED designation
D. Status LEDs
E. Configuration port
Page 8 of 60
F. PROFINET port x 2
G. PROFIBUS DSUB connector
H. Cable tie mount
I. Laser engraved connectors designation
J. Security switch
K. Factory reset button
L. Laser engraved label with product information
M. DIN rail locking mechanism
SCM-1202-202 Version 1.0
Installation
