HN9000 Satellite Modem Installation Guide
Chapter 3
1037576-0001 Rev. A

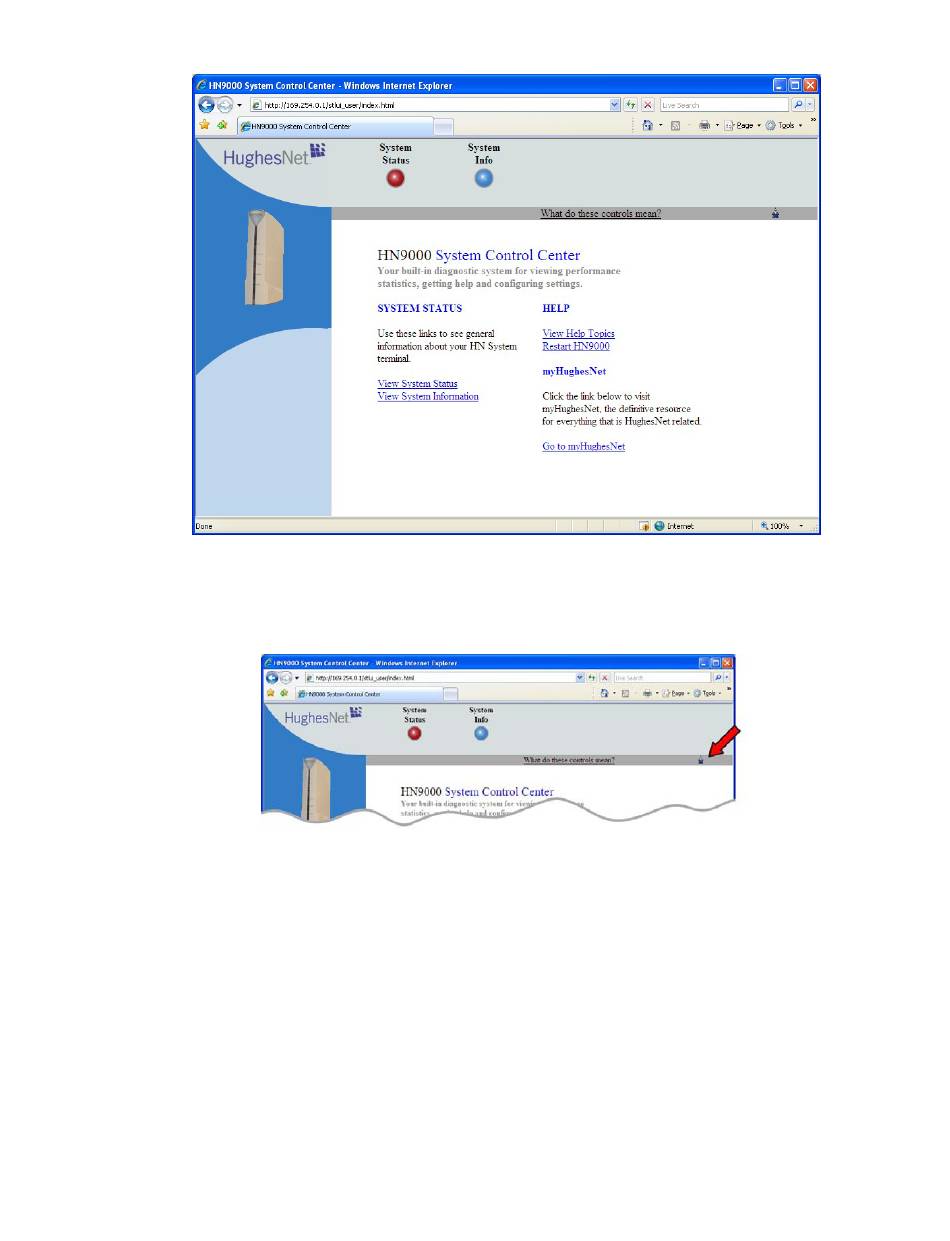

Figure 12: System Control Center home page
The System Status and System Info buttons are always visible near the top of the System Control Center screens.
Three additional buttons are visible after the modem has been commissioned and is operational.
3. Click the small icon indicated by the arrow in Figure 13: Icon for opening Advanced Pages on page 21.
Figure 13: Icon for opening Advanced Pages
The browser opens the Installation screen, which appears within a larger screen titled Advanced Configuration and
Statistics (Figure 14: Installation screen on page 22). The Installation screen is the first of several screens that appear
within the Advanced Configuration and Statistics screen as you install the modem.
Figure 14: Installation screen on page 22 is an example, showing the Installation screen with parameters entered.
You must enter the specific parameters for the site where you are installing the satellite modem, as listed on the
Installation Reference Sheet. Do not copy parameters from this example.
21
