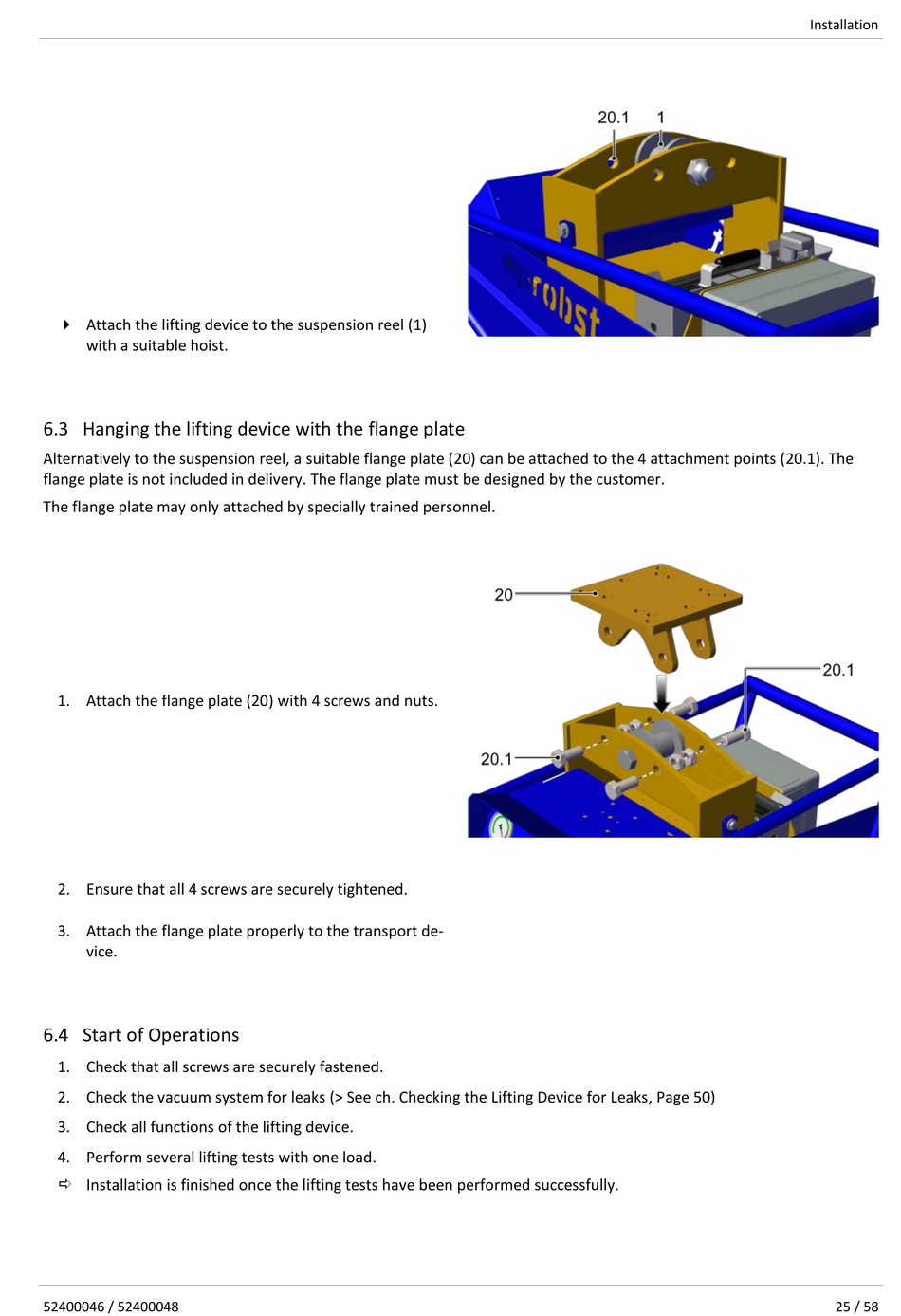

 Attach the lifting device to the suspension reel (1)
with a suitable hoist.

6.3 Hanging the lifting device with the flange plate

Alternatively to the suspension reel, a suitable flange plate (20) can be attached to the 4 attachment points (20.1). The
flange plate is not included in delivery. The flange plate must be designed by the customer.
The flange plate may only attached by specially trained personnel.
1. Attach the flange plate (20) with 4 screws and nuts.
2. Ensure that all 4 screws are securely tightened.
3. Attach the flange plate properly to the transport de-
vice.

6.4 Start of Operations

1. Check that all screws are securely fastened.
2. Check the vacuum system for leaks (> See ch. Checking the Lifting Device for Leaks, Page 50)
3. Check all functions of the lifting device.
4. Perform several lifting tests with one load.
 Installation is finished once the lifting tests have been performed successfully.
