Operation

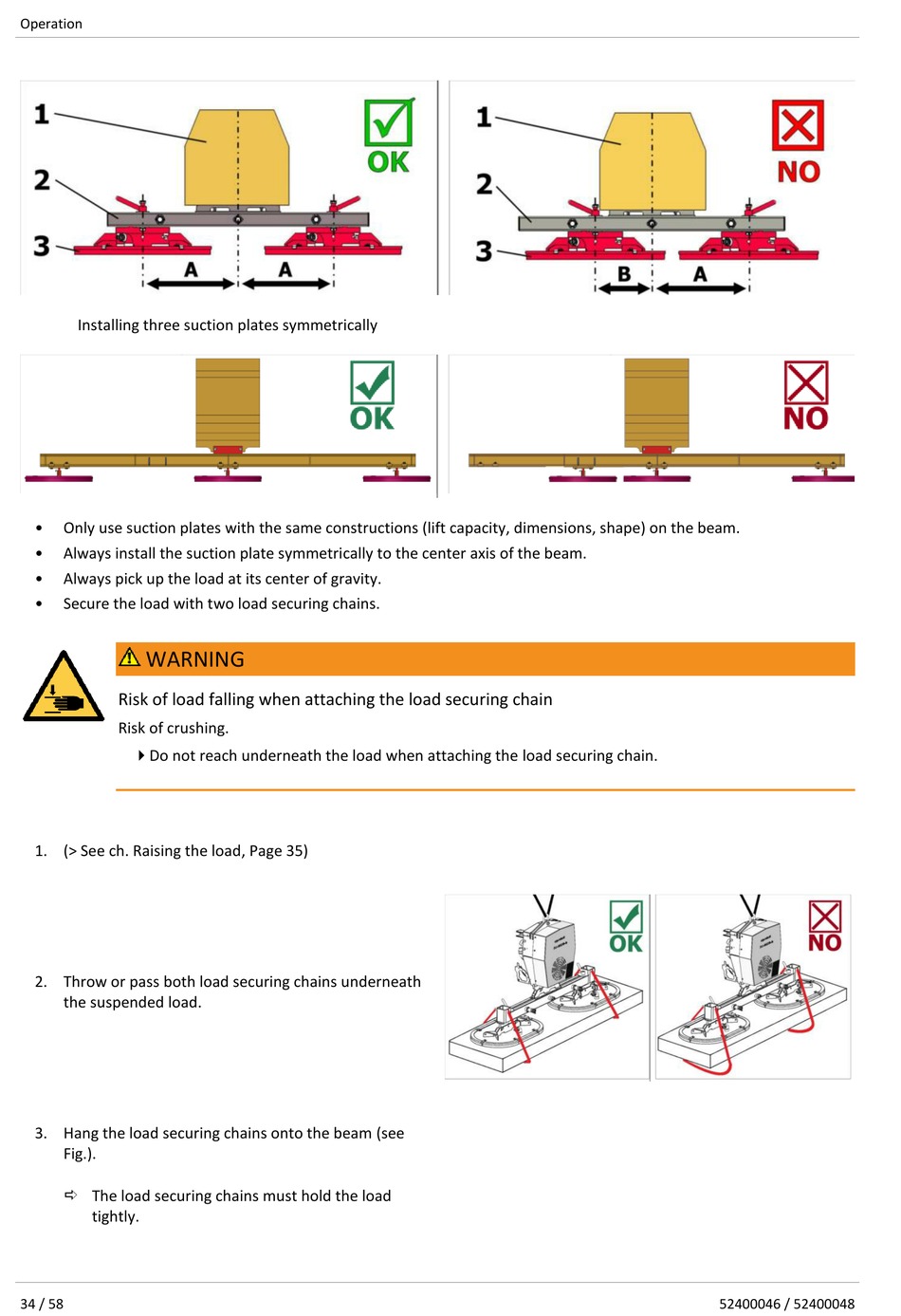

Installing three suction plates symmetrically
• Only use suction plates with the same constructions (lift capacity, dimensions, shape) on the beam.
• Always install the suction plate symmetrically to the center axis of the beam.
• Always pick up the load at its center of gravity.
• Secure the load with two load securing chains.
WARNING
Risk of load falling when attaching the load securing chain
Risk of crushing.
Do not reach underneath the load when attaching the load securing chain.
1. (> See ch. Raising the load, Page 35)
2. Throw or pass both load securing chains underneath
the suspended load.
3. Hang the load securing chains onto the beam (see
Fig.).
 The load securing chains must hold the load
tightly.
