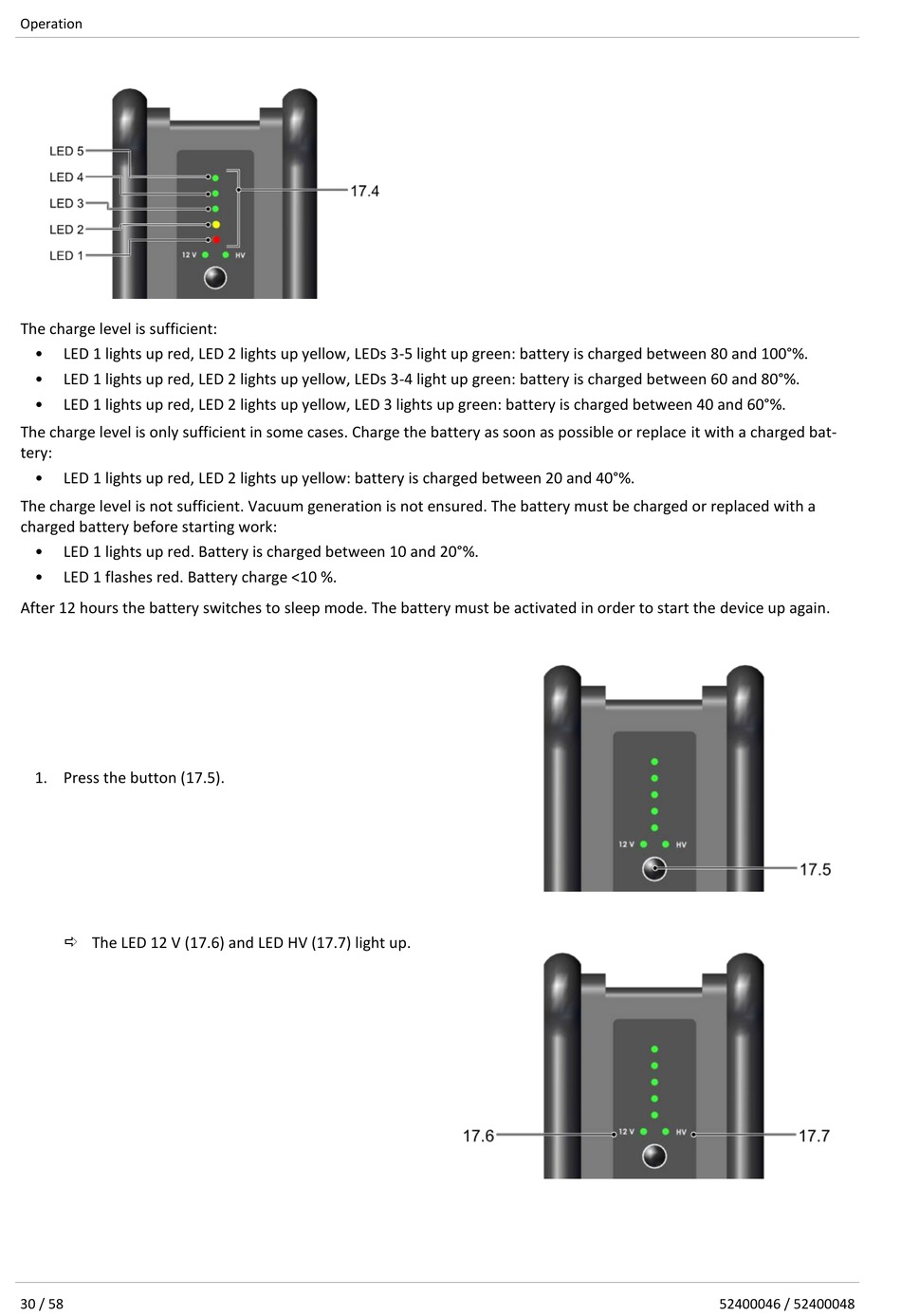

Operation
The charge level is sufficient:
• LED 1 lights up red, LED 2 lights up yellow, LEDs 3-5 light up green: battery is charged between 80 and 100°%.
• LED 1 lights up red, LED 2 lights up yellow, LEDs 3-4 light up green: battery is charged between 60 and 80°%.
• LED 1 lights up red, LED 2 lights up yellow, LED 3 lights up green: battery is charged between 40 and 60°%.
The charge level is only sufficient in some cases. Charge the battery as soon as possible or replace it with a charged bat-
tery:
• LED 1 lights up red, LED 2 lights up yellow: battery is charged between 20 and 40°%.
The charge level is not sufficient. Vacuum generation is not ensured. The battery must be charged or replaced with a
charged battery before starting work:
• LED 1 lights up red. Battery is charged between 10 and 20°%.
• LED 1 flashes red. Battery charge <10 %.
After 12 hours the battery switches to sleep mode. The battery must be activated in order to start the device up again.
1. Press the button (17.5).
 The LED 12 V (17.6) and LED HV (17.7) light up.
