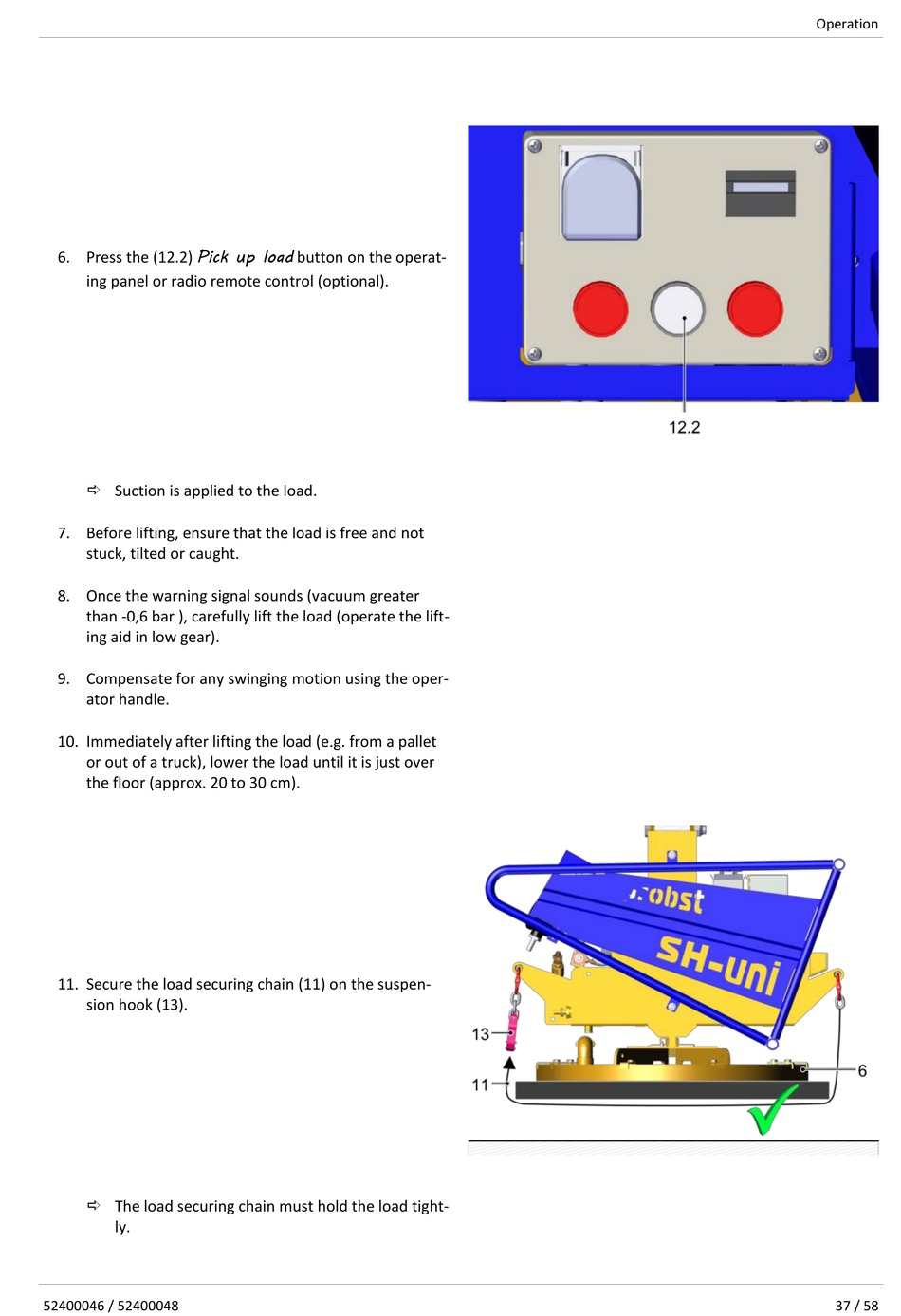

probst SH-2500-UNI-GL Operating Instructions Manual page 115

6. Press the (12.2) Pick up load button on the operat-
ing panel or radio remote control (optional).
 Suction is applied to the load.
7. Before lifting, ensure that the load is free and not
stuck, tilted or caught.
8. Once the warning signal sounds (vacuum greater
than -0,6 bar ), carefully lift the load (operate the lift-
ing aid in low gear).
9. Compensate for any swinging motion using the oper-
ator handle.
10. Immediately after lifting the load (e.g. from a pallet
or out of a truck), lower the load until it is just over
the floor (approx. 20 to 30 cm).
11. Secure the load securing chain (11) on the suspen-
sion hook (13).
 The load securing chain must hold the load tight-
ly.
52400046 / 52400048
Operation
37 / 58
