Installation
The checks required in Europe before the start of operations in accordance with EN 13155 are covered by a
type test.

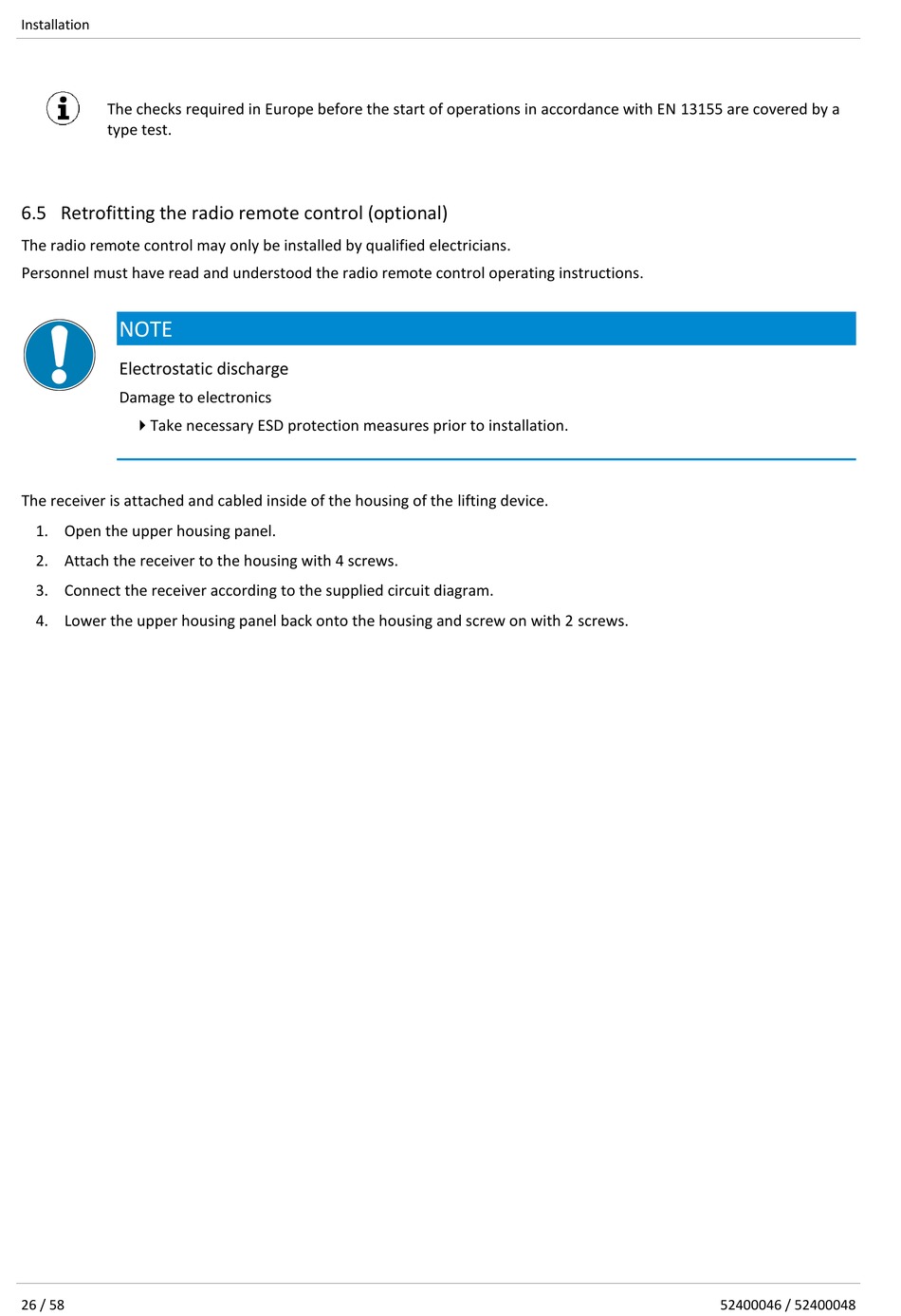

6.5 Retrofitting the radio remote control (optional)

The radio remote control may only be installed by qualified electricians.
Personnel must have read and understood the radio remote control operating instructions.
NOTE
Electrostatic discharge
Damage to electronics
Take necessary ESD protection measures prior to installation.
The receiver is attached and cabled inside of the housing of the lifting device.
1. Open the upper housing panel.
2. Attach the receiver to the housing with 4 screws.
3. Connect the receiver according to the supplied circuit diagram.
4. Lower the upper housing panel back onto the housing and screw on with 2 screws.
26 / 58
52400046 / 52400048
