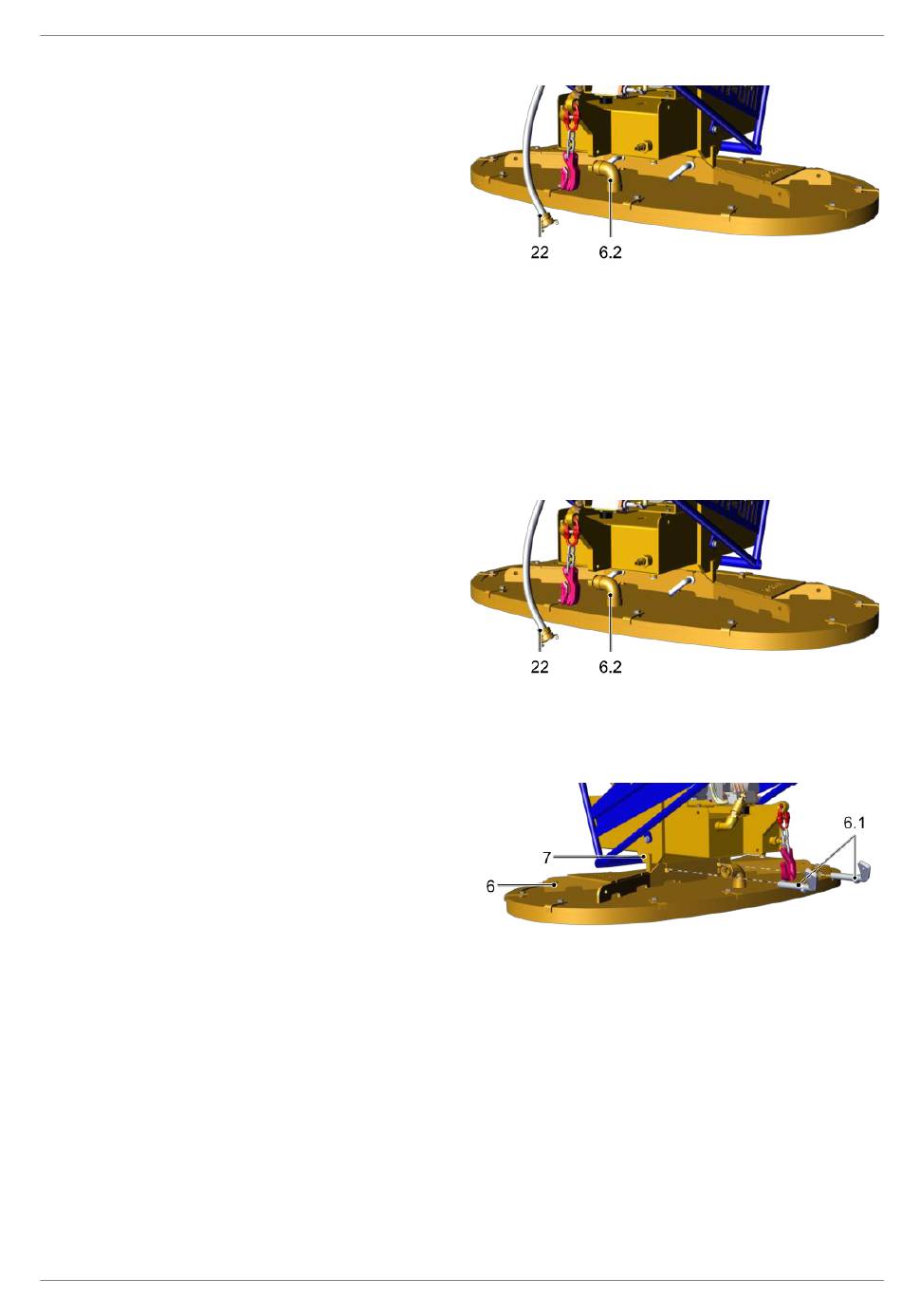

7. Attach the vacuum hose (22) to the suction connec-
tion (6.2) of the suction plate.

7.4 Changing the suction plate

1. Fasten the lifting device to a suitable lifting aid.
2. Switch off the vacuum generator.
3. Release the vacuum hose (22).
4. Secure the suction plate to prevent it from falling.
5. Remove both securing bolts (6.1).
6. Carefully raise the lifting device.
7. Attach a new suction plate to the lifting device (> See
ch. Attaching the suction plate, Page 31).
8. Store the unused suction plate in a suitable location.

7.5 Attaching the beam for multiple suction plates (optional)

Installing two suction plates symmetrically
52400046 / 52400048
Operation
33 / 58
