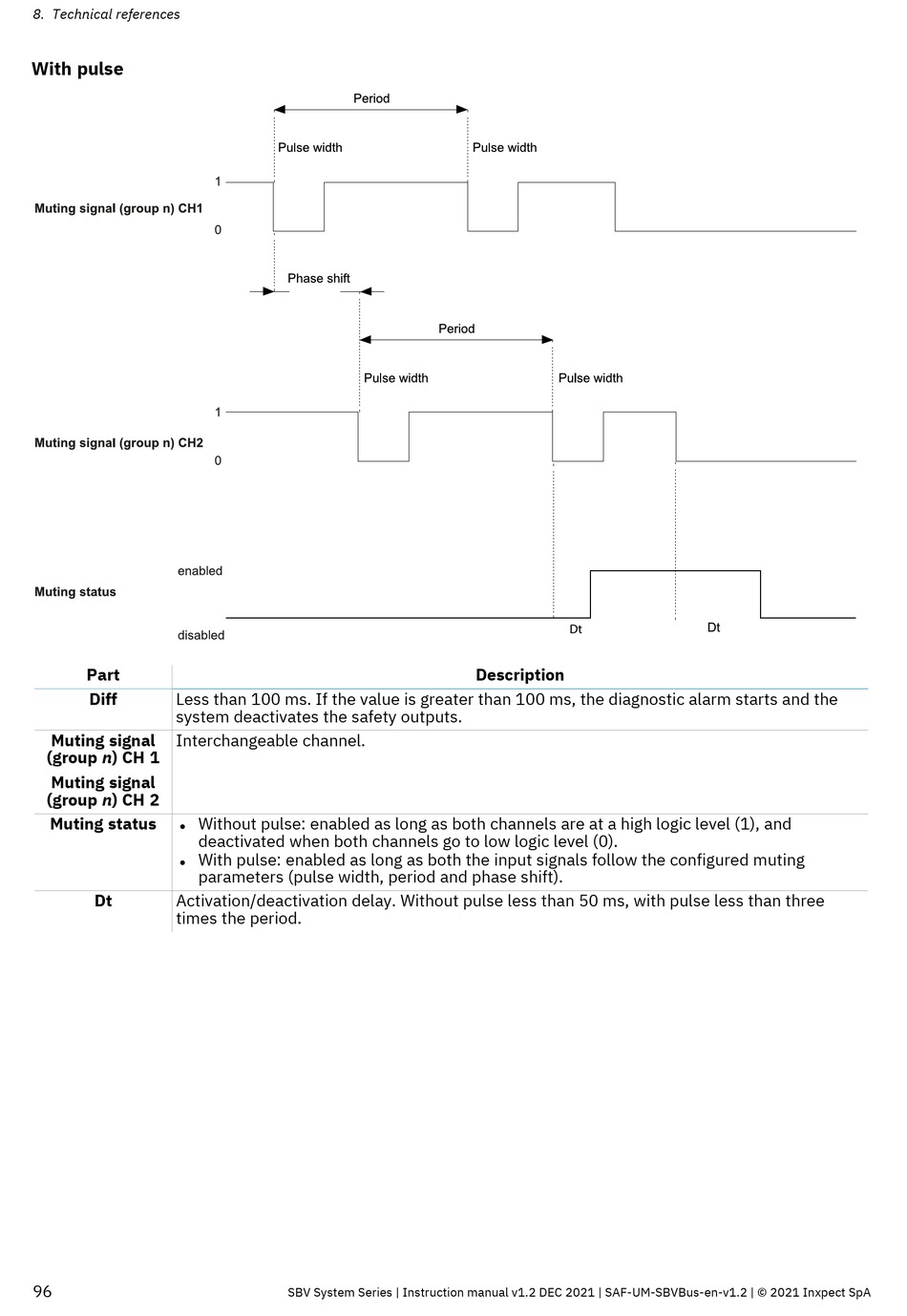

8. Technical references
With pulse
Part
Diff
Less than 100 ms. If the value is greater than 100 ms, the diagnostic alarm starts and the
system deactivates the safety outputs.
Muting signal Interchangeable channel.
(group n) CH 1
Muting signal
(group n) CH 2
Muting status
Without pulse: enabled as long as both channels are at a high logic level (1), and
l
deactivated when both channels go to low logic level (0).
With pulse: enabled as long as both the input signals follow the configured muting
l
parameters (pulse width, period and phase shift).
Dt
Activation/deactivation delay. Without pulse less than 50 ms, with pulse less than three
times the period.
