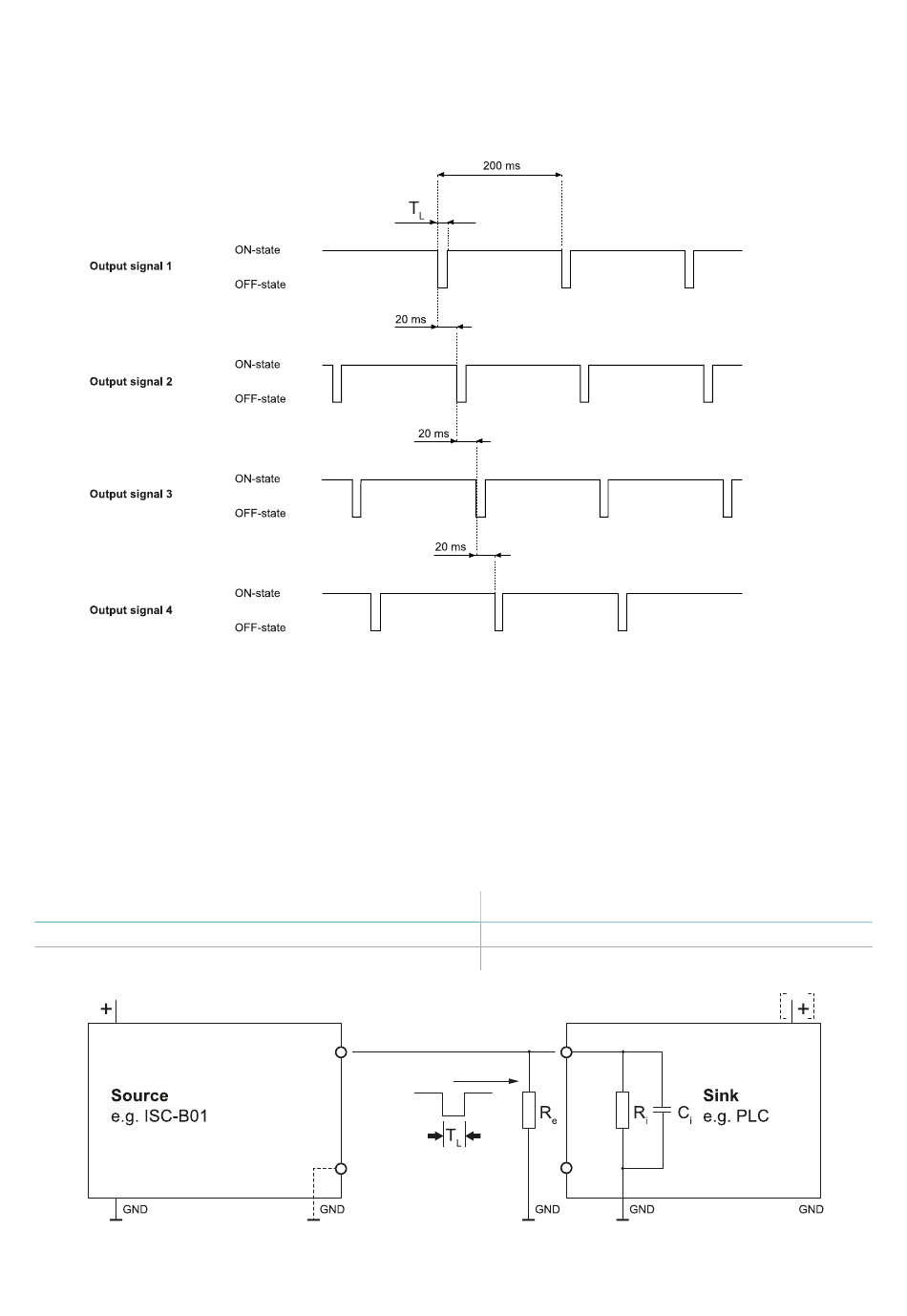

Idle signal is 24 V dc, periodically shortly pulsed to 0 V (pulses are not synchronous) for the receiver to detect
shortcut to either 0 V or 24 V.
The pulse duration at 0 V (T
Digital Input-Output > OSSD Pulse width).
For details, see "Technical references" on page 78.
3.2.10 External resistor for OSSD outputs
To guarantee the correct connection between the OSSDs of the control unit and an external device, it may be
necessary to add an external resistor.
If the pulse width set (OSSD Pulse width) is 300 μs, it is strongly recommended to add an external resistor to
guarantee the discharge time of the capacitive load. If it is set at 2 ms, an external resistance must be added if
the resistor of the external load is greater than the maximum resistive load allowed, see "Technical data" on
page 79.
Below are some standard values for the external resistor:
OSSD Pulse width value
300 μs
2 ms
SBV System Series | Instruction manual v1.2 DEC 2021| SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
) can be set at 300 μs or 2 ms through the Inxpect Safety application (Settings >
L
External resistor (R
1 kΩ
10 kΩ
3.  Get to know SBV System Series
)
e
19
