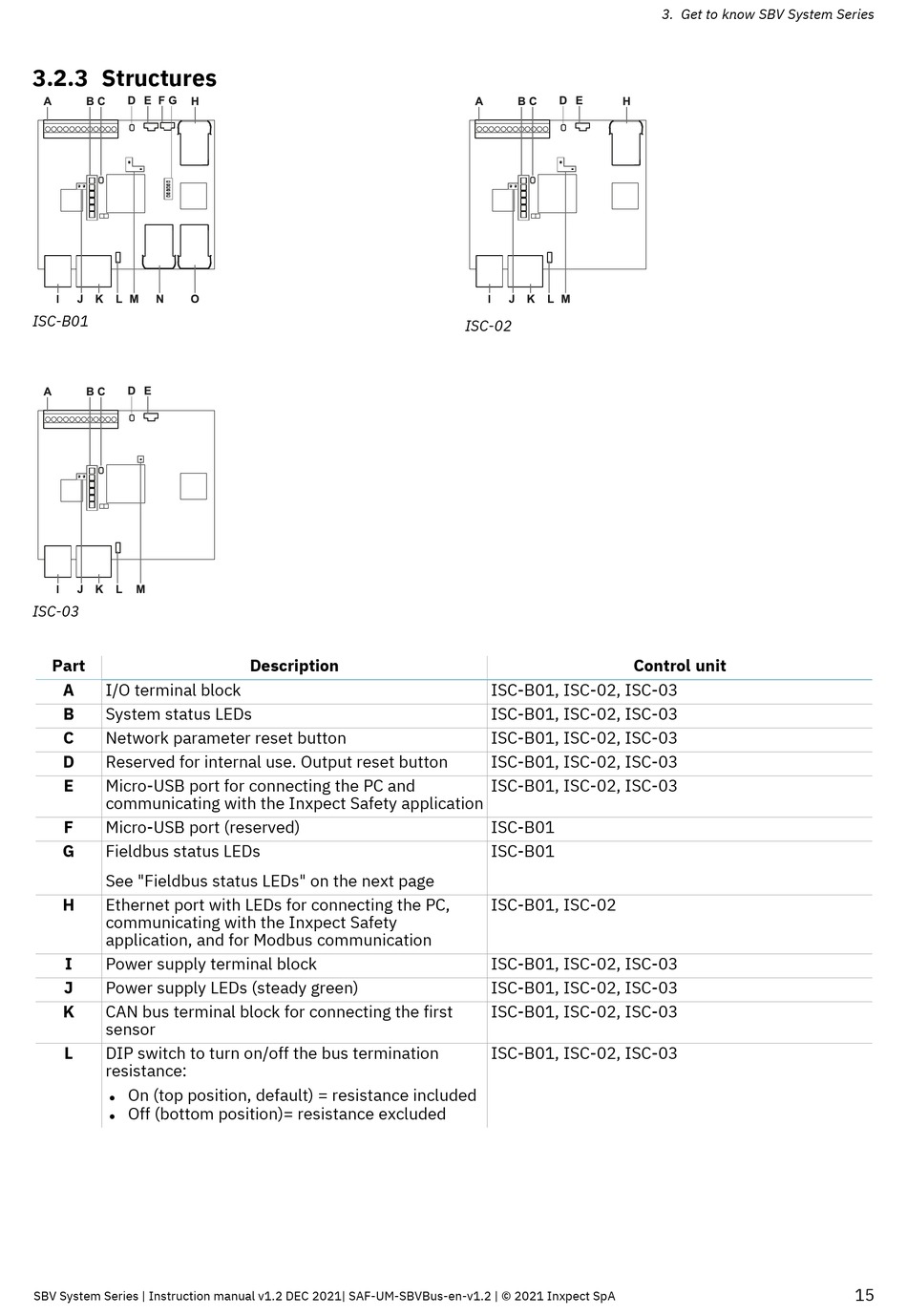

3.2.3 Structures
ISC-B01
ISC-03
Part
A I/O terminal block
B System status LEDs
C Network parameter reset button
D
Reserved for internal use. Output reset button
E
Micro-USB port for connecting the PC and
communicating with the Inxpect Safety application
F Micro-USB port (reserved)
G Fieldbus status LEDs
See "Fieldbus status LEDs" on the next page
H
Ethernet port with LEDs for connecting the PC,
communicating with the Inxpect Safety
application, and for Modbus communication
I Power supply terminal block
J Power supply LEDs (steady green)
K
CAN bus terminal block for connecting the first
sensor
L
DIP switch to turn on/off the bus termination
resistance:
On (top position, default) = resistance included
l
Off (bottom position)= resistance excluded
l
SBV System Series | Instruction manual v1.2 DEC 2021| SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
Description
ISC-02
Control unit
ISC-B01, ISC-02, ISC-03
ISC-B01, ISC-02, ISC-03
ISC-B01, ISC-02, ISC-03
ISC-B01, ISC-02, ISC-03
ISC-B01, ISC-02, ISC-03
ISC-B01
ISC-B01
ISC-B01, ISC-02
ISC-B01, ISC-02, ISC-03
ISC-B01, ISC-02, ISC-03
ISC-B01, ISC-02, ISC-03
ISC-B01, ISC-02, ISC-03
