Inxpect SBV System Series Instruction Manual page 83

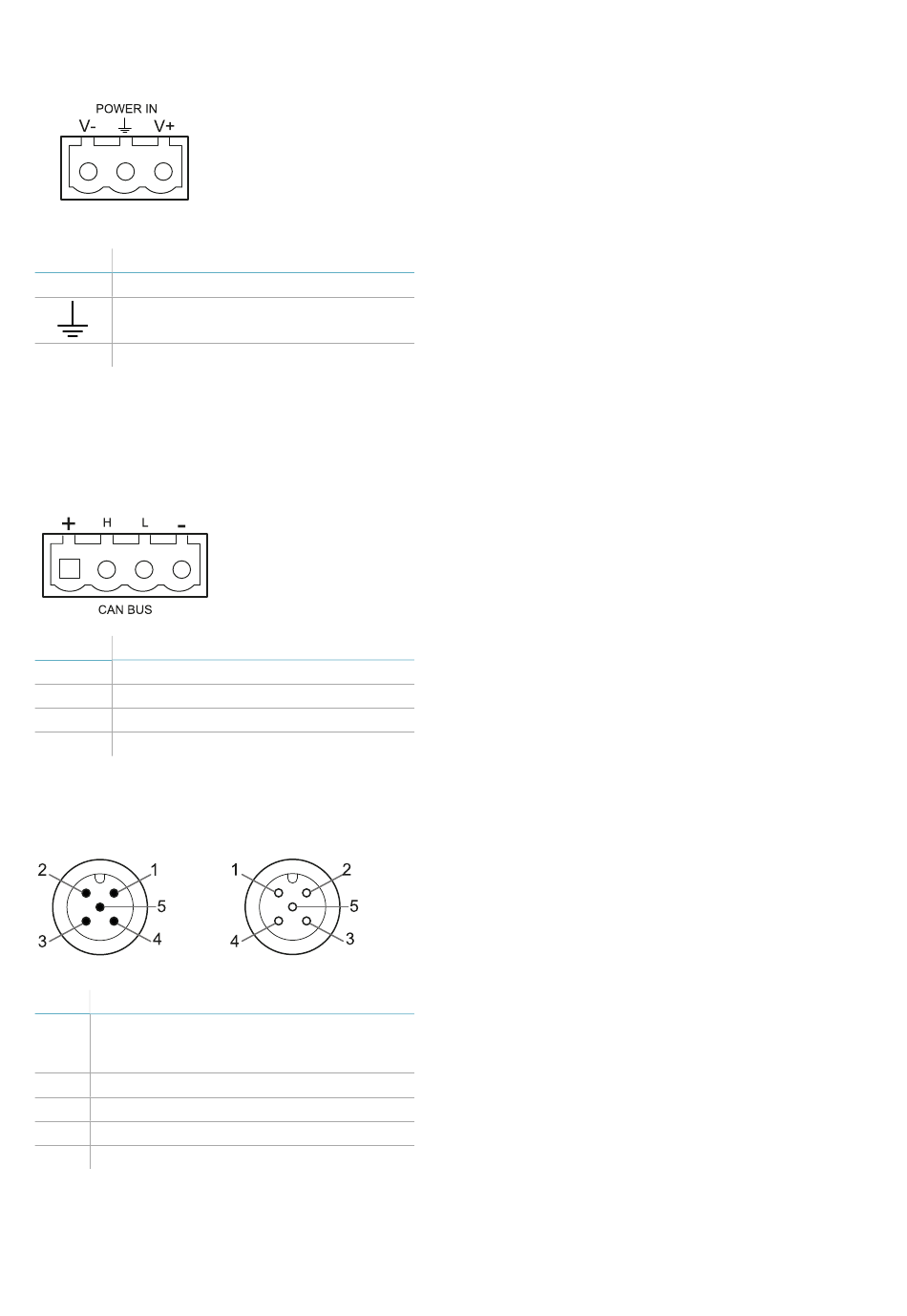

8.2.3 Power supply terminal block
Note: connector front view.
Symbol
V-
GND
Earth
V+
+ 24 V dc
Note: the maximum operating temperature of the
cables must be at least 70 °C.
Note: use only copper wires with a minimum gauge
of 18 AWG and a torque of 0.62 Nm (5,5 lbs in).
8.2.4 CAN bus terminal block
Symbol
+ + 12 V dc output
H CAN H
L
CAN L
-
GND
Note: the maximum operating temperature of the
cables must be at least 70 °C.
8.2.5 Connectors M12 CAN bus
Male connector
Pin
1 Shield, to be connected to ground circuit
power supply terminal block of the control
unit.
2
+ 12 V dc
3
GND
4
CAN H
5 CAN L
SBV System Series | Instruction manual v1.2 DEC 2021| SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
Description
Description
Female connector
Function
8. Technical references
83
