8. Technical references

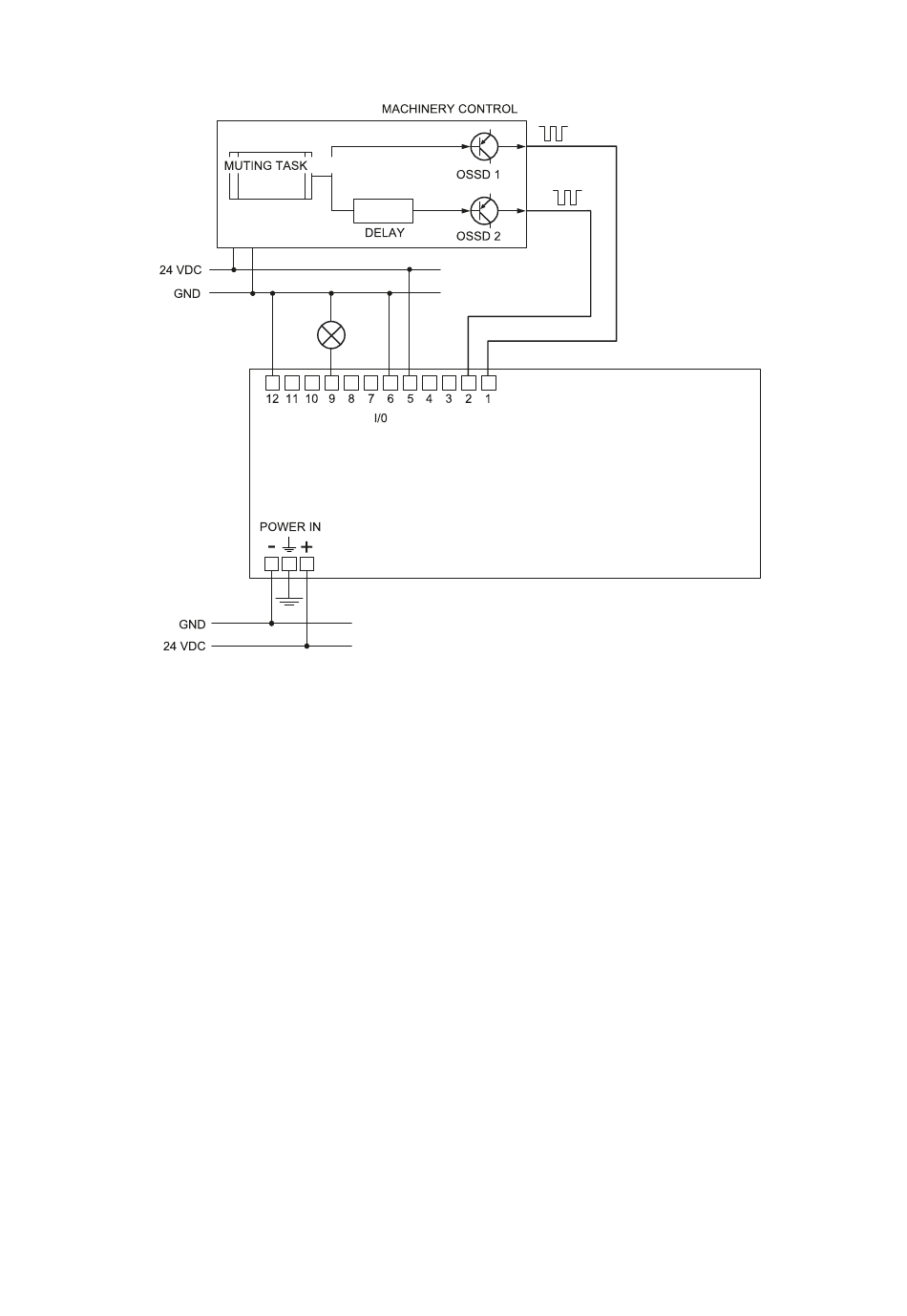

8.3.5 Connection of the muting input and output (one group of sensors)
Note: the cables used for wiring the digital inputs must have a maximum length of 30 m (98.4 ft).
Digital I/O settings (through the Inxpect Safety application)
Digital input #1 Not configured
Digital input #2 Muting group 1
Digital output #1 Not configured
Digital output #2 Not configured
Digital output #3 Muting enable feedback signal
Digital output #4 Not configured
88
SBV System Series | Instruction manual v1.2 DEC 2021 | SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
