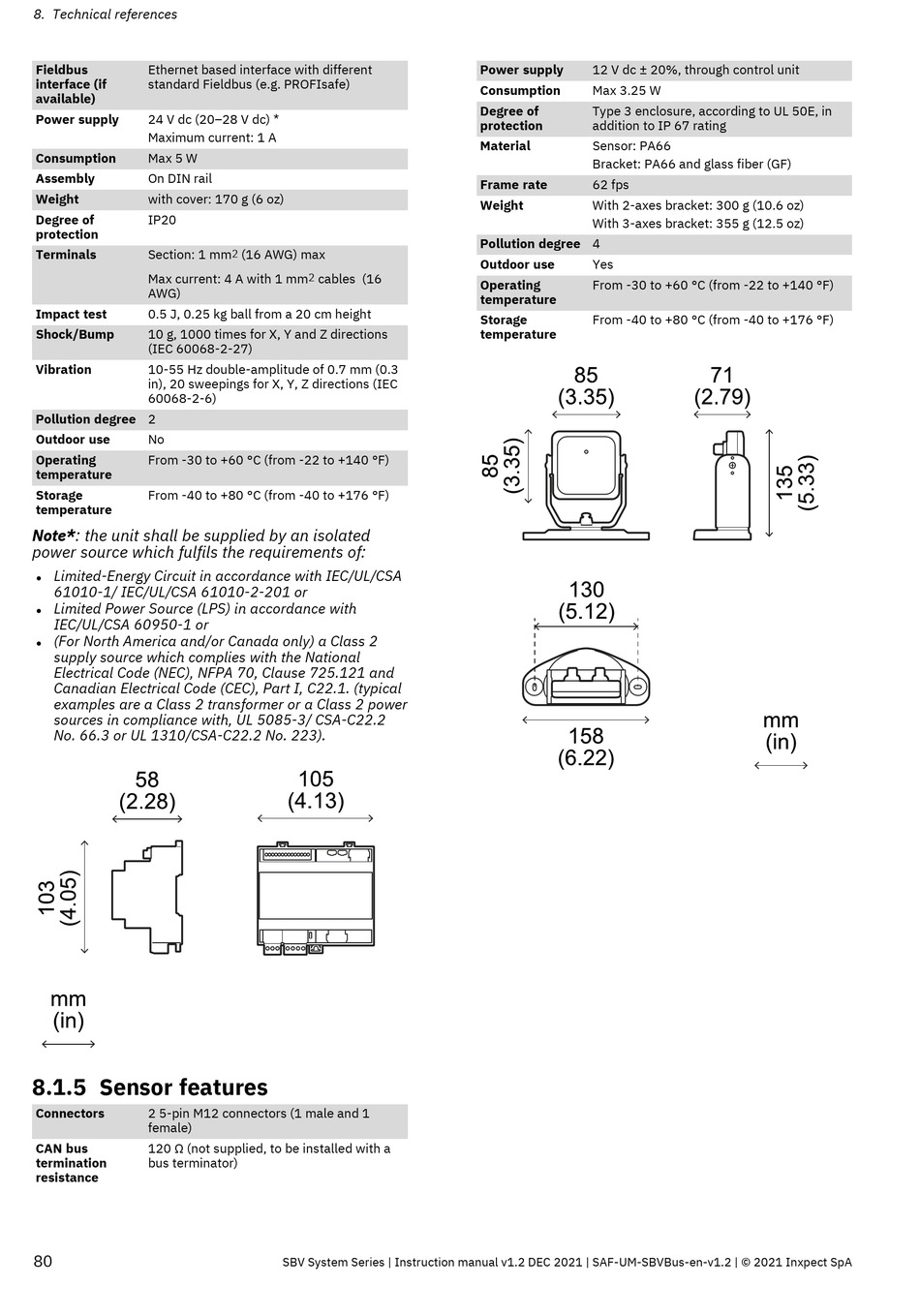

Inxpect SBV System Series Instruction Manual page 80

8. Technical references
Fieldbus Ethernet based interface with different
interface (if
standard Fieldbus (e.g. PROFIsafe)
available)
Power supply 24 V dc (20–28 V dc) *
Maximum current: 1 A
Consumption Max 5 W
Assembly On DIN rail
Weight with cover: 170 g (6 oz)
Degree of IP20
protection
Terminals Section: 1 mm
Max current: 4 A with 1 mm
AWG)
Impact test
0.5 J, 0.25 kg ball from a 20 cm height
Shock/Bump 10 g, 1000 times for X, Y and Z directions
(IEC 60068-2-27)
Vibration
10-55 Hz double-amplitude of 0.7 mm (0.3
in), 20 sweepings for X, Y, Z directions (IEC
60068-2-6)
Pollution degree 2
Outdoor use No
Operating From -30 to +60 °C (from -22 to +140 °F)
temperature
Storage From -40 to +80 °C (from -40 to +176 °F)
temperature
Note*: the unit shall be supplied by an isolated
power source which fulfils the requirements of:
Limited-Energy Circuit in accordance with IEC/UL/CSA
l
61010-1/ IEC/UL/CSA 61010-2-201 or
Limited Power Source (LPS) in accordance with
l
IEC/UL/CSA 60950-1 or
(For North America and/or Canada only) a Class 2
l
supply source which complies with the National
Electrical Code (NEC), NFPA 70, Clause 725.121 and
Canadian Electrical Code (CEC), Part I, C22.1. (typical
examples are a Class 2 transformer or a Class 2 power
sources in compliance with, UL 5085-3/ CSA-C22.2
No. 66.3 or UL 1310/CSA-C22.2 No. 223).
8.1.5 Sensor features
Connectors 2 5-pin M12 connectors (1 male and 1
female)
CAN bus
120 Ω (not supplied, to be installed with a
termination bus terminator)
resistance
80
(16 AWG) max
2
cables (16
2
SBV System Series | Instruction manual v1.2 DEC 2021 | SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
Power supply 12 V dc ± 20%, through control unit
Consumption Max 3.25 W
Degree of Type 3 enclosure, according to UL 50E, in
protection
addition to IP 67 rating
Material Sensor: PA66
Bracket: PA66 and glass fiber (GF)
Frame rate
62 fps
Weight
With 2-axes bracket: 300 g (10.6 oz)
With 3-axes bracket: 355 g (12.5 oz)
Pollution degree 4
Outdoor use Yes
Operating
From -30 to +60 °C (from -22 to +140 °F)
temperature
Storage From -40 to +80 °C (from -40 to +176 °F)
temperature
