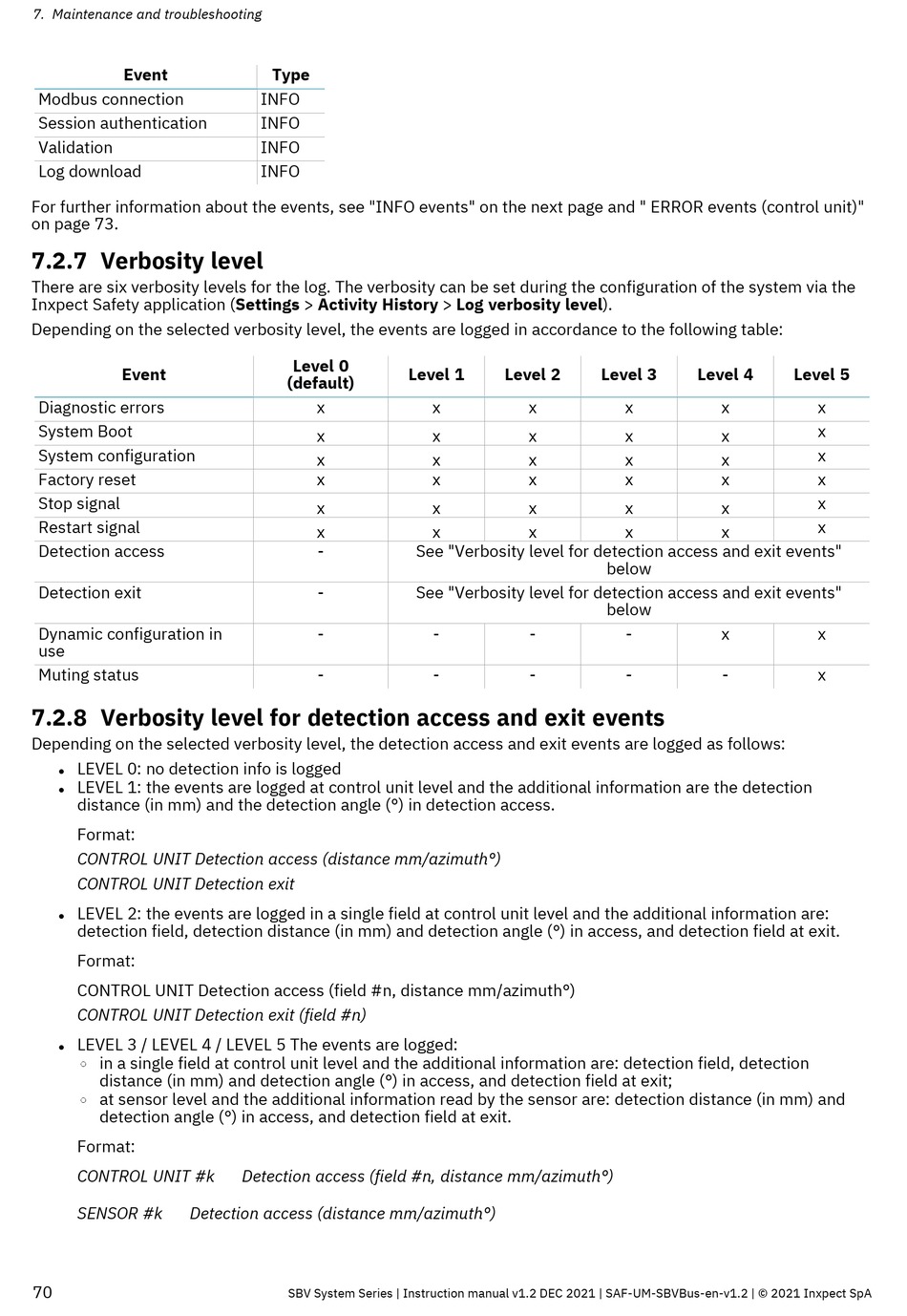

Inxpect SBV System Series Instruction Manual page 70

7. Maintenance and troubleshooting
Event
Modbus connection
Session authentication
Validation
Log download
For further information about the events, see "INFO events" on the next page and " ERROR events (control unit)"
on page 73.
7.2.7 Verbosity level
There are six verbosity levels for the log. The verbosity can be set during the configuration of the system via the
Inxpect Safety application (Settings > Activity History > Log verbosity level).
Depending on the selected verbosity level, the events are logged in accordance to the following table:
Event
Diagnostic errors
System Boot
System configuration
Factory reset
Stop signal
Restart signal
Detection access
Detection exit
Dynamic configuration in
use
Muting status
7.2.8 Verbosity level for detection access and exit events
Depending on the selected verbosity level, the detection access and exit events are logged as follows:
LEVEL 0: no detection info is logged
l
LEVEL 1: the events are logged at control unit level and the additional information are the detection
l
distance (in mm) and the detection angle (°) in detection access.
Format:
CONTROL UNIT Detection access (distance mm/azimuth°)
CONTROL UNIT Detection exit
LEVEL 2: the events are logged in a single field at control unit level and the additional information are:
l
detection field, detection distance (in mm) and detection angle (°) in access, and detection field at exit.
Format:
CONTROL UNIT Detection access (field #n, distance mm/azimuth°)
CONTROL UNIT Detection exit (field #n)
LEVEL 3 / LEVEL 4 / LEVEL 5 The events are logged:
l
in a single field at control unit level and the additional information are: detection field, detection
o
distance (in mm) and detection angle (°) in access, and detection field at exit;
at sensor level and the additional information read by the sensor are: detection distance (in mm) and
o
detection angle (°) in access, and detection field at exit.
Format:
CONTROL UNIT #k
SENSOR #k Detection access (distance mm/azimuth°)
70
Type
INFO
INFO
INFO
INFO
Level 0
Level 1
(default)
x
x
x
x
x
x
-
-
-
-
Detection access (field #n, distance mm/azimuth°)
SBV System Series | Instruction manual v1.2 DEC 2021 | SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
Level 2
x x
x x
x x
x x
x x
x x
See "Verbosity level for detection access and exit events"
See "Verbosity level for detection access and exit events"
- -
- -
Level 3 Level 4
x x
x x
x x
x x
x x
x x
below
below
- x
- -
Level 5
x
x
x
x
x
x
x
x
