6.2.6 Mount bracket for z-axis rotation (roll)
Note: for an example of sensor installation, see "Examples of sensor installation" on the next page.

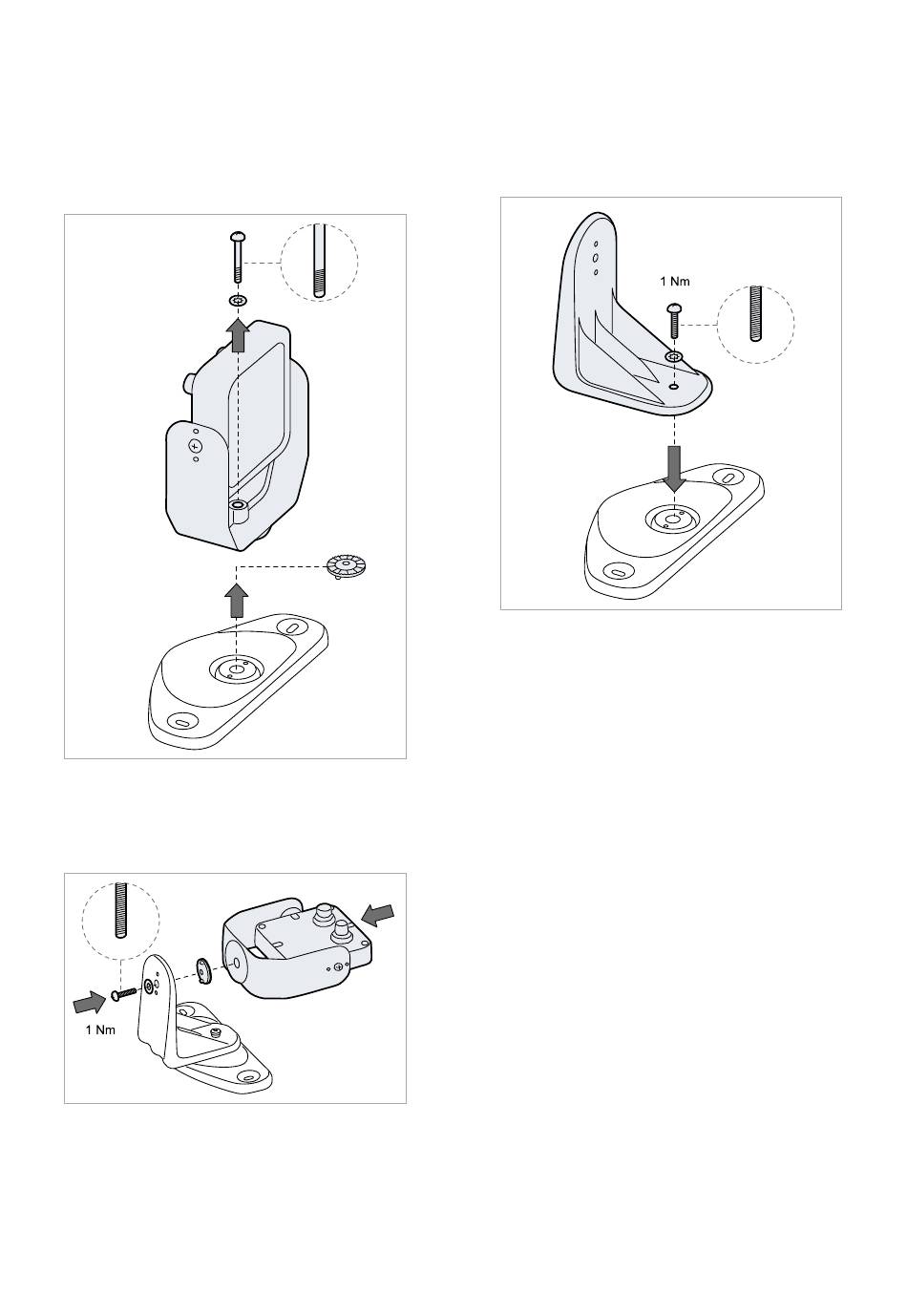

The bracket that allows rotation around the z-axis (roll) is an accessory in the package. To mount it:
1. Unscrew the screw at the bottom and remove
the bracket with the sensor and the aligning
ring.
3. Mount the bracket with the sensor and the
aligning ring. Use the tamper-proof screw
provided with the bracket.
SBV System Series | Instruction manual v1.2 DEC 2021| SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
2. Attach the roll bracket to the base. Use the
tamper-proof screw provided with the bracket.
