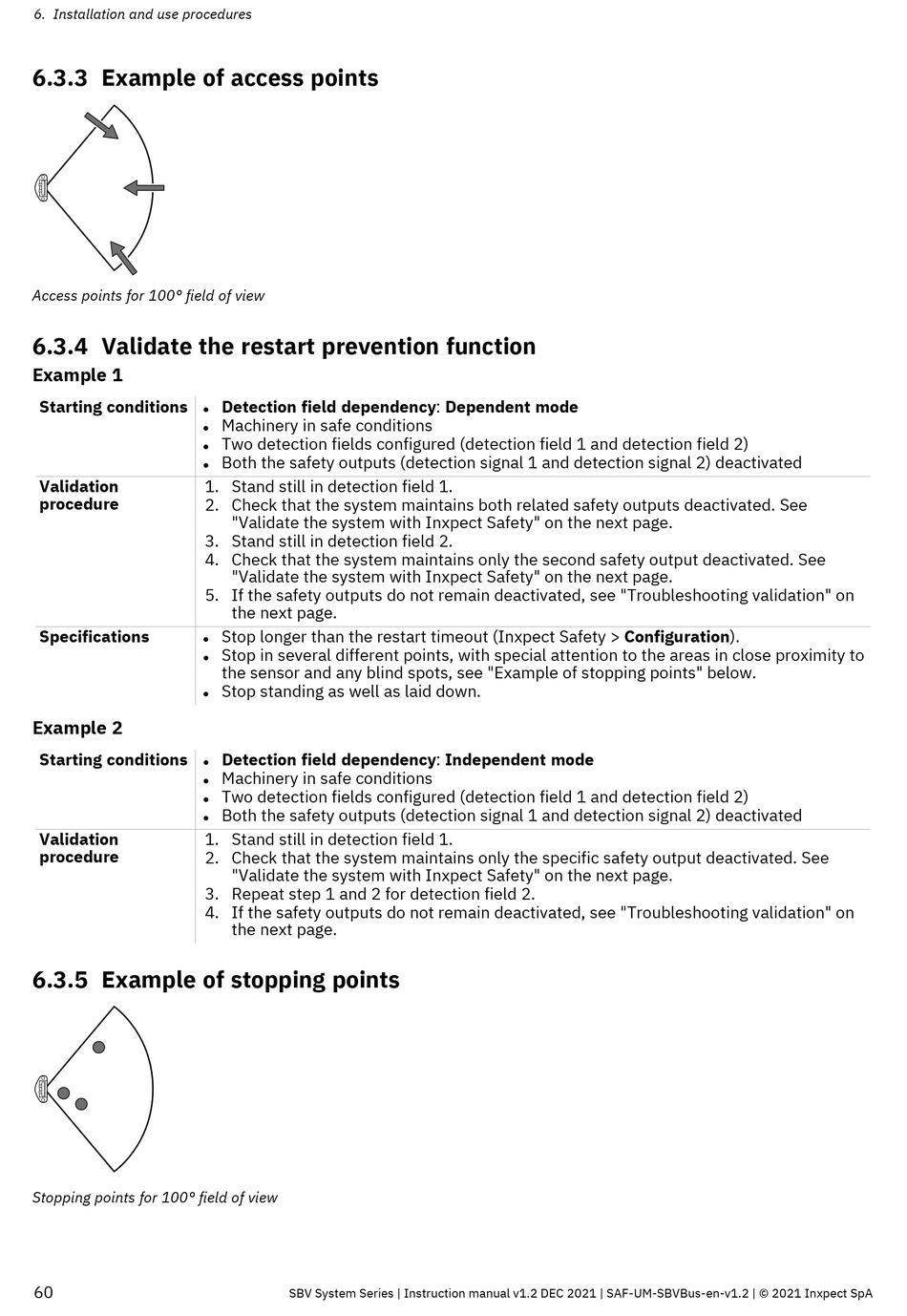

Inxpect SBV System Series Instruction Manual page 60

6. Installation and use procedures
6.3.3 Example of access points
Access points for 100° field of view
6.3.4 Validate the restart prevention function
Example 1
Starting conditions
l
l
l
l
Validation
procedure
Specifications
l
l
l
Example 2
Starting conditions
l
l
l
l
Validation
procedure
6.3.5 Example of stopping points
Stopping points for 100° field of view
60
Detection field dependency: Dependent mode
Machinery in safe conditions
Two detection fields configured (detection field 1 and detection field 2)
Both the safety outputs (detection signal 1 and detection signal 2) deactivated
1. Stand still in detection field 1.
2. Check that the system maintains both related safety outputs deactivated. See
"Validate the system with Inxpect Safety" on the next page.
3. Stand still in detection field 2.
4. Check that the system maintains only the second safety output deactivated. See
"Validate the system with Inxpect Safety" on the next page.
5. If the safety outputs do not remain deactivated, see "Troubleshooting validation" on
the next page.
Stop longer than the restart timeout (Inxpect Safety > Configuration).
Stop in several different points, with special attention to the areas in close proximity to
the sensor and any blind spots, see "Example of stopping points" below.
Stop standing as well as laid down.
Detection field dependency: Independent mode
Machinery in safe conditions
Two detection fields configured (detection field 1 and detection field 2)
Both the safety outputs (detection signal 1 and detection signal 2) deactivated
1. Stand still in detection field 1.
2. Check that the system maintains only the specific safety output deactivated. See
"Validate the system with Inxpect Safety" on the next page.
3. Repeat step 1 and 2 for detection field 2.
4. If the safety outputs do not remain deactivated, see "Troubleshooting validation" on
the next page.
