Top view with sensor inclination 0°.

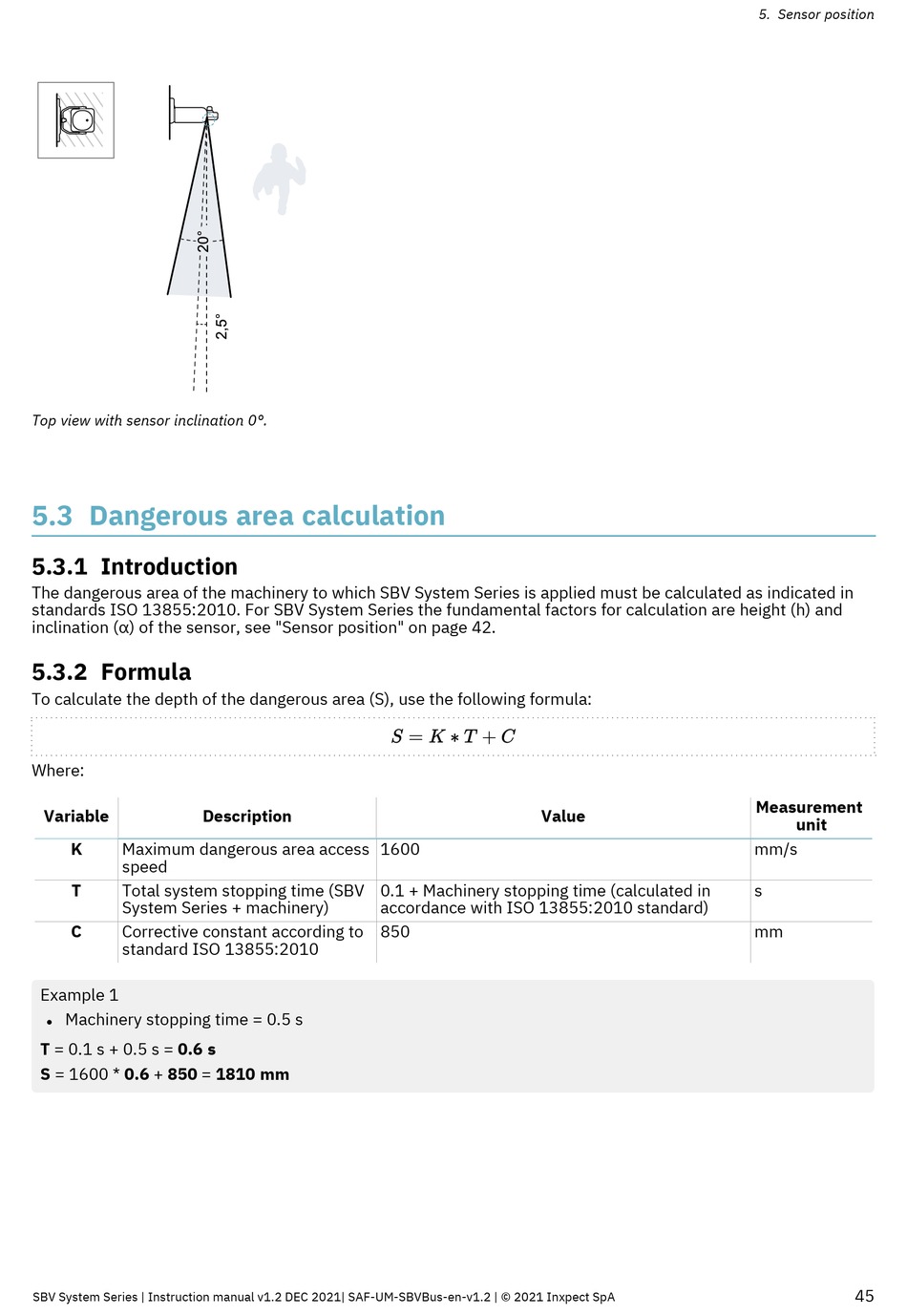

5.3 Dangerous area calculation

5.3.1 Introduction
The dangerous area of the machinery to which SBV System Series is applied must be calculated as indicated in
standards ISO 13855:2010. For SBV System Series the fundamental factors for calculation are height (h) and
inclination (α) of the sensor, see "Sensor position" on page 42.
5.3.2 Formula
To calculate the depth of the dangerous area (S), use the following formula:
Where:
Variable Description
K Maximum dangerous area access
speed
T
Total system stopping time (SBV
System Series + machinery)
C
Corrective constant according to
standard ISO 13855:2010
Example 1
Machinery stopping time = 0.5 s
l
T = 0.1 s + 0.5 s = 0.6 s
S = 1600 * 0.6 + 850 = 1810 mm
SBV System Series | Instruction manual v1.2 DEC 2021| SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
Value
1600
0.1 + Machinery stopping time (calculated in
accordance with ISO 13855:2010 standard)
850
5. Sensor position
Measurement
unit
mm/s
s
mm
