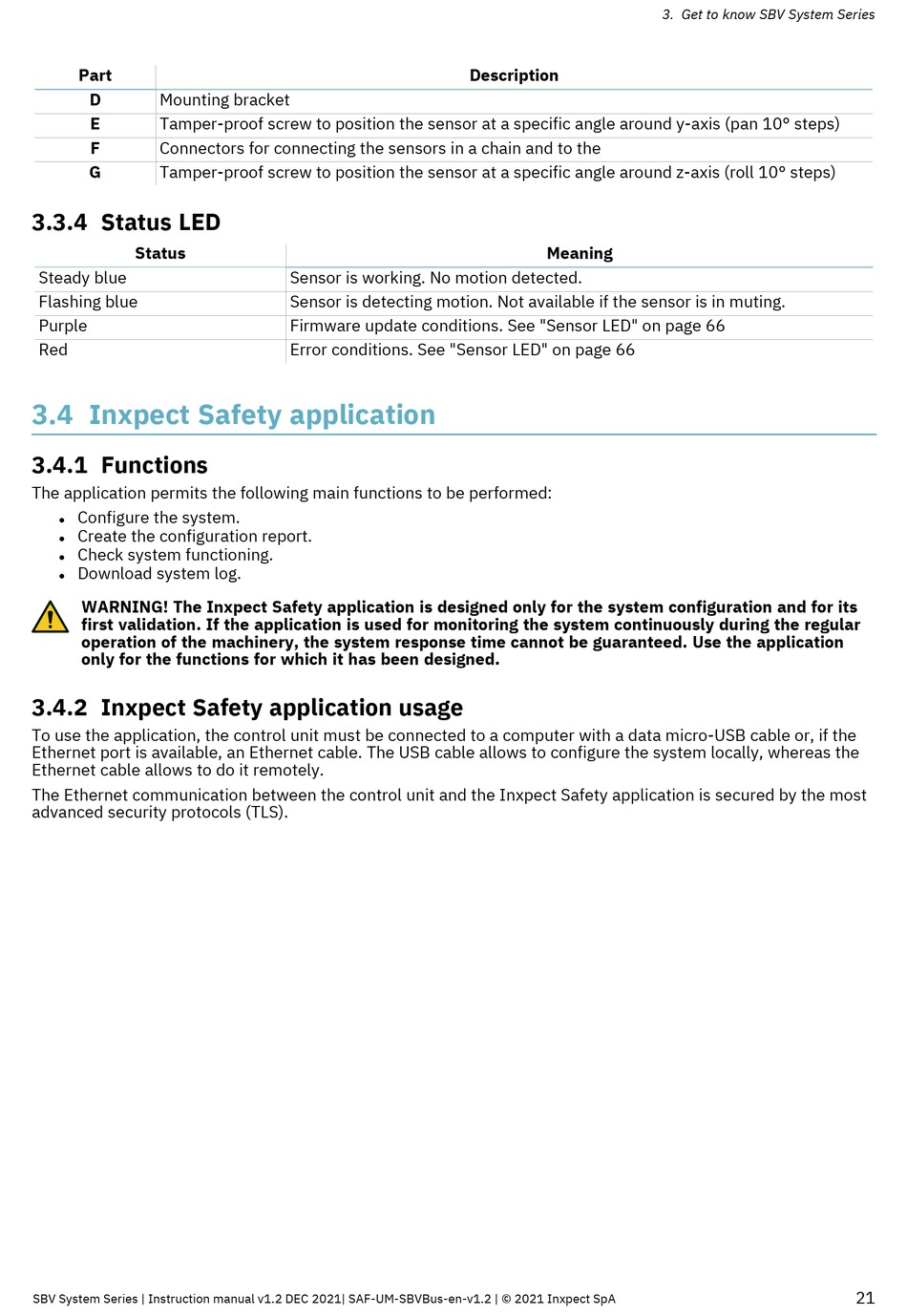

Part
D
Mounting bracket
E
Tamper-proof screw to position the sensor at a specific angle around y-axis (pan 10° steps)
F Connectors for connecting the sensors in a chain and to the
G Tamper-proof screw to position the sensor at a specific angle around z-axis (roll 10° steps)
3.3.4 Status LED
Status
Steady blue
Flashing blue
Purple
Red

3.4 Inxpect Safety application

3.4.1 Functions
The application permits the following main functions to be performed:
Configure the system.
l
Create the configuration report.
l
Check system functioning.
l
Download system log.
l
WARNING! The Inxpect Safety application is designed only for the system configuration and for its
first validation. If the application is used for monitoring the system continuously during the regular
operation of the machinery, the system response time cannot be guaranteed. Use the application
only for the functions for which it has been designed.
3.4.2 Inxpect Safety application usage
To use the application, the control unit must be connected to a computer with a data micro-USB cable or, if the
Ethernet port is available, an Ethernet cable. The USB cable allows to configure the system locally, whereas the
Ethernet cable allows to do it remotely.
The Ethernet communication between the control unit and the Inxpect Safety application is secured by the most
advanced security protocols (TLS).
SBV System Series | Instruction manual v1.2 DEC 2021| SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
Sensor is working. No motion detected.
Sensor is detecting motion. Not available if the sensor is in muting.
Firmware update conditions. See "Sensor LED" on page 66
Error conditions. See "Sensor LED" on page 66
Description
Meaning
3. Get to know SBV System Series
21
