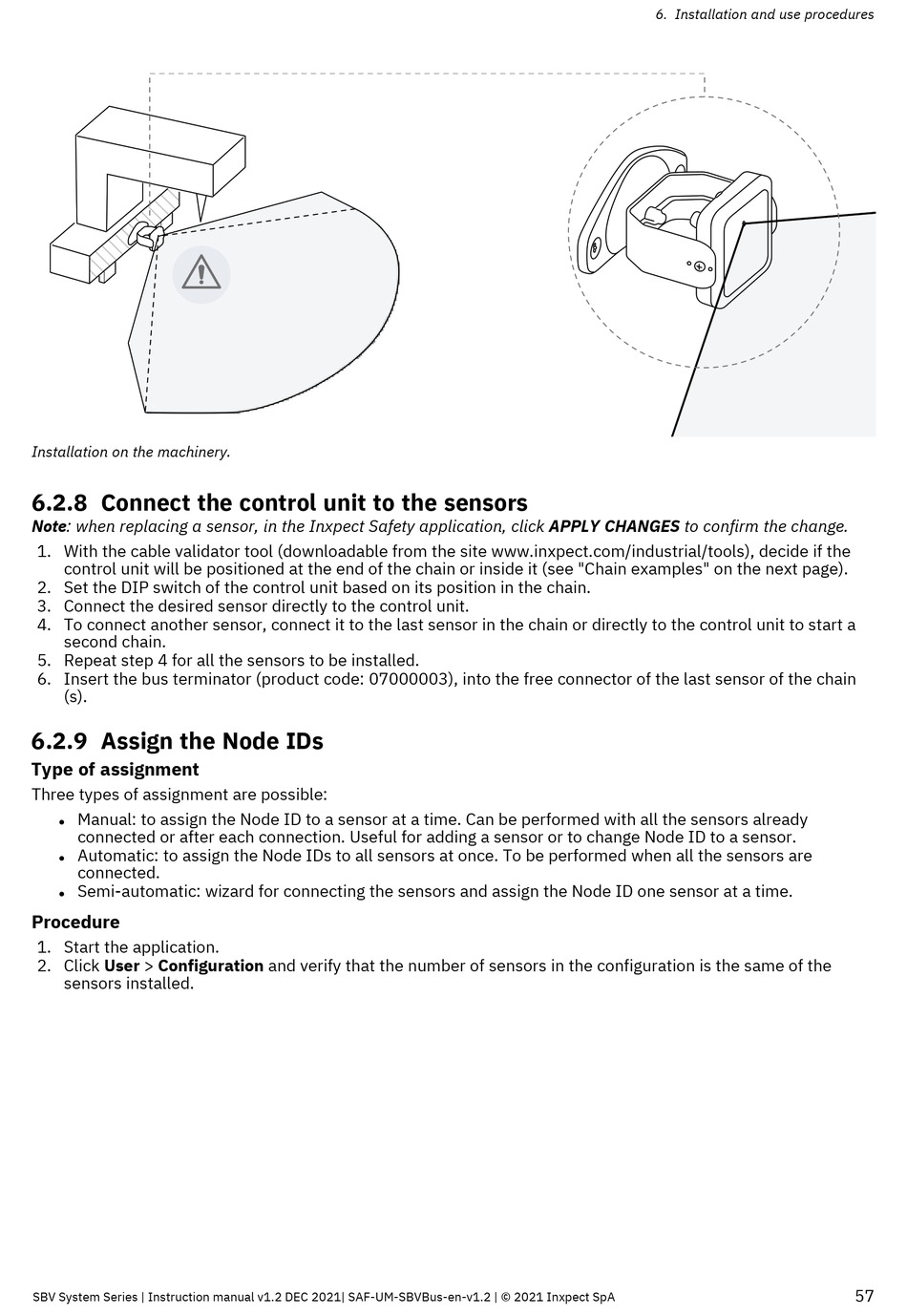

Inxpect SBV System Series Instruction Manual page 57

Installation on the machinery.
6.2.8 Connect the control unit to the sensors
Note: when replacing a sensor, in the Inxpect Safety application, click APPLY CHANGES to confirm the change.
1. With the cable validator tool (downloadable from the site www.inxpect.com/industrial/tools), decide if the
control unit will be positioned at the end of the chain or inside it (see "Chain examples" on the next page).
2. Set the DIP switch of the control unit based on its position in the chain.
3. Connect the desired sensor directly to the control unit.
4. To connect another sensor, connect it to the last sensor in the chain or directly to the control unit to start a
second chain.
5. Repeat step 4 for all the sensors to be installed.
6. Insert the bus terminator (product code: 07000003), into the free connector of the last sensor of the chain
(s).
6.2.9 Assign the Node IDs
Type of assignment
Three types of assignment are possible:
Manual: to assign the Node ID to a sensor at a time. Can be performed with all the sensors already
l
connected or after each connection. Useful for adding a sensor or to change Node ID to a sensor.
Automatic: to assign the Node IDs to all sensors at once. To be performed when all the sensors are
l
connected.
Semi-automatic: wizard for connecting the sensors and assign the Node ID one sensor at a time.
l
Procedure
1. Start the application.
2. Click User > Configuration and verify that the number of sensors in the configuration is the same of the
sensors installed.
