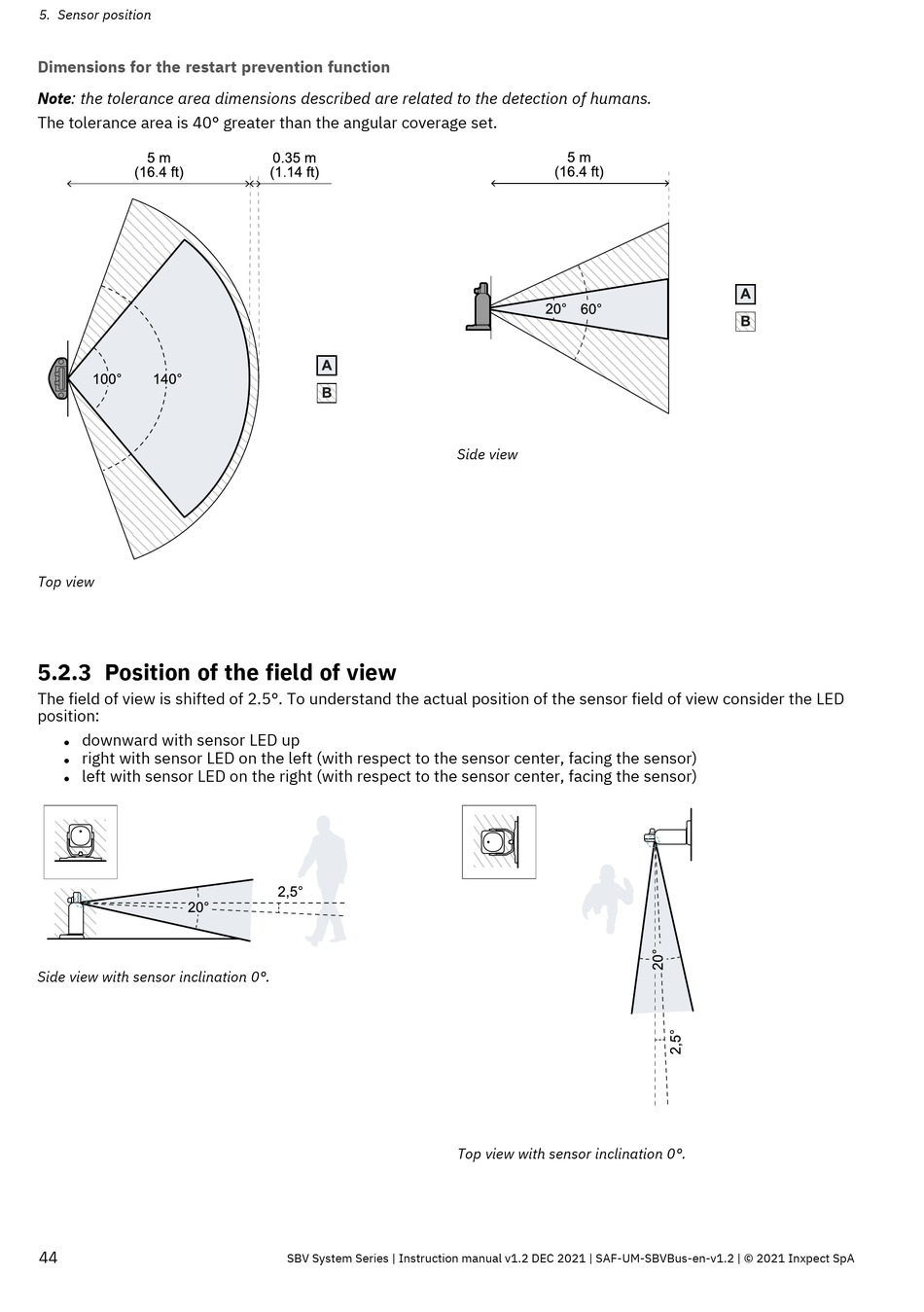

Inxpect SBV System Series Instruction Manual page 44

5. Sensor position
Dimensions for the restart prevention function
Note: the tolerance area dimensions described are related to the detection of humans.
The tolerance area is 40° greater than the angular coverage set.
Top view
5.2.3 Position of the field of view
The field of view is shifted of 2.5°. To understand the actual position of the sensor field of view consider the LED
position:
downward with sensor LED up
l
right with sensor LED on the left (with respect to the sensor center, facing the sensor)
l
left with sensor LED on the right (with respect to the sensor center, facing the sensor)
l
Side view with sensor inclination 0°.
44
SBV System Series | Instruction manual v1.2 DEC 2021 | SAF-UM-SBVBus-en-v1.2 | © 2021 Inxpect SpA
Side view
Top view with sensor inclination 0°.
